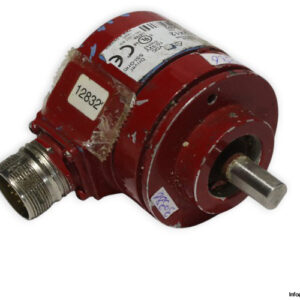

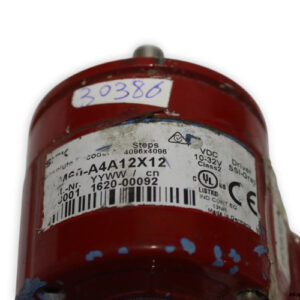

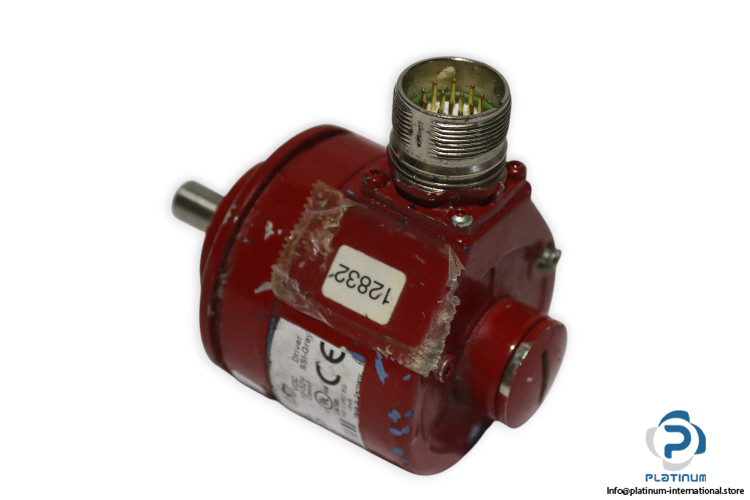

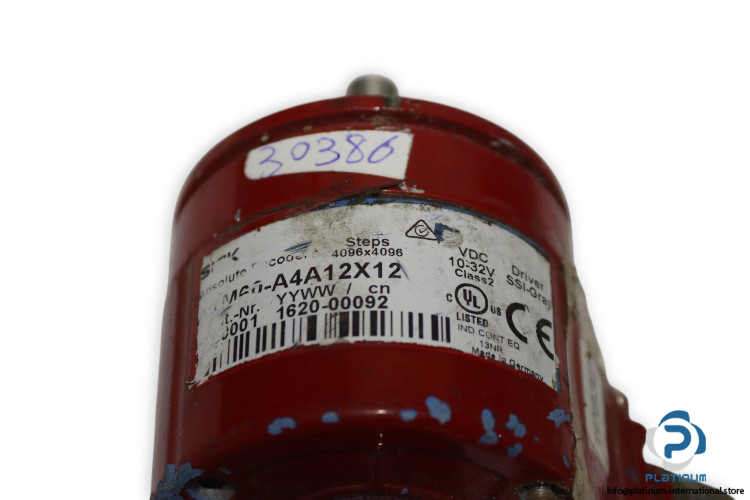

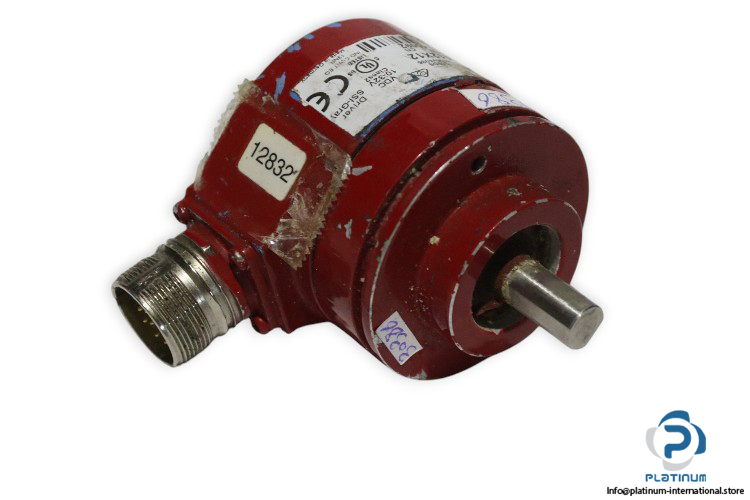

Sick|Stegmann AFM60-A4A12X12 Absolute Encoder
The Sick|Stegmann AFM60-A4A12X12 is a precision absolute encoder engineered for motion control and automation applications. With high-resolution steps, SSI-Gray interface, and durable construction, it ensures accurate position feedback and reliable operation in demanding environments.
Manufacturer: Sick|Stegmann
Type: Absolute Encoder
Model: AFM60-A4A12X12
Yyww/cn: 1620-00092
Part No.: 1030001
Technical information
- Voltage: 10 to 32 V DC
- Step: 4096 x 4096
- Driver: SSI-Gray
- Class: 2
- Number of Steps per Revolution (Max. Resolution): 8192 (13 bit)
- Number of Revolutions: 8192 (13 bit)
- Initialization Time: 1050 ms
- Connection Type: Male connector, M23, 12-pin, radial
- Power Consumption: ‰¤ 0.8 W (without load)
- Material: Stainless steel / Aluminum
- Operating Temperature: -20 °C to +85 °C
- Shaft Diameter: 10 mm
- Shaft Length: 19 mm
- Mechanical Design: Solid shaft, face mount flange
