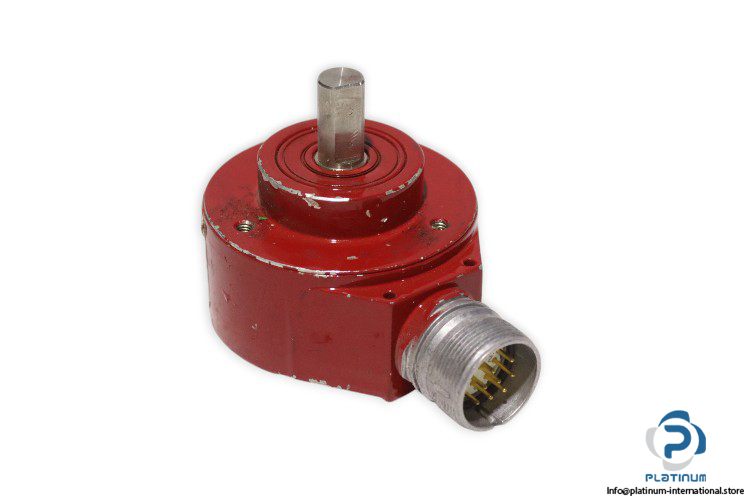

Sick|Stegmann AFM60A-S4AA004096 Absolute Encoder
The Sick|Stegmann AFM60A-S4AA004096 is a high-precision absolute encoder designed for industrial automation and motion control applications. Featuring SSI driver, 12-bit resolution, and robust mechanical design, it ensures accurate position feedback and long-lasting reliability even in harsh conditions.
Manufacturer: Sick|Stegmann
Type: Absolute Encoder

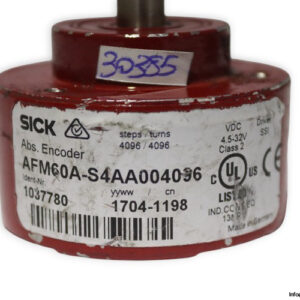

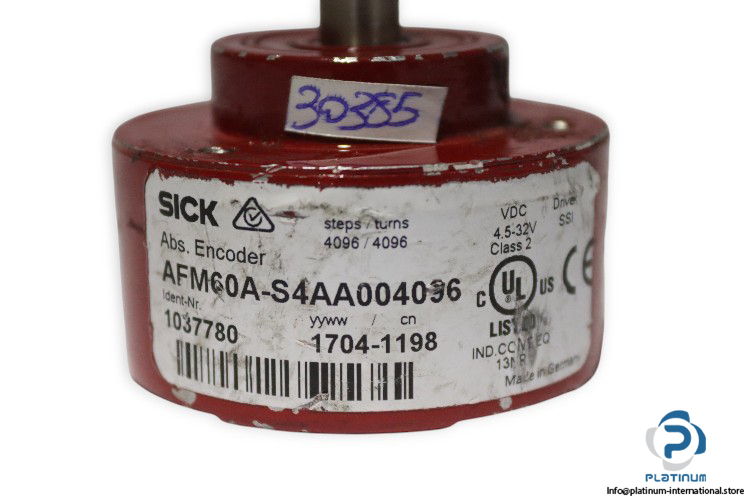

Model: AFM60A-S4AA004096
Id-Nr.: 1037780
Yyww/cn: 1704-1198
Technical information
- Voltage: 4.5 to 32 V DC
- Step/Turns: 4096 / 4096
- Driver: SSI
- Class: 2
- Number of Steps per Revolution (Max. Resolution): 4096 (12 bit)
- Number of Revolutions: 4096 (12 bit)
- Initialization Time: 50 ms

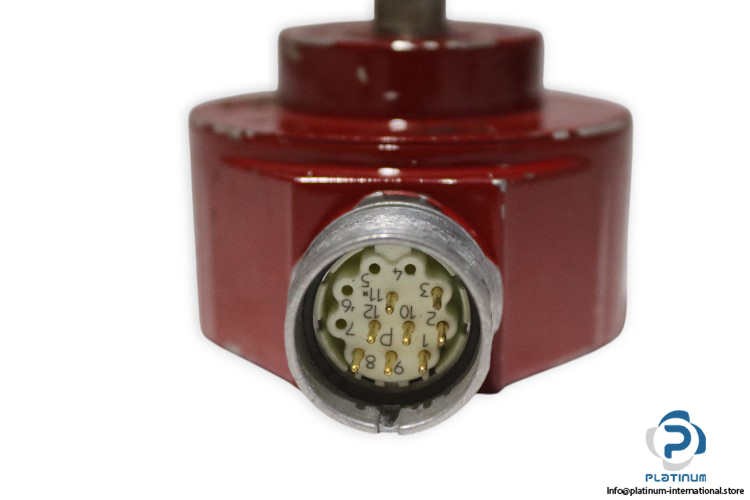

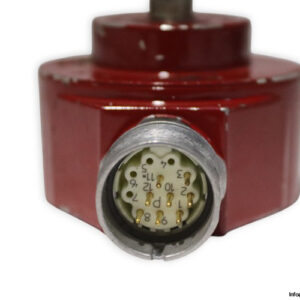

- Connection Type: Male connector, M23, 12-pin, radial
- Power Consumption: ‰¤ 0.7 W (without load)
- Material: Stainless steel / Aluminum / Aluminum die cast
- Protection Class: IP65 / IP67
- Operating Temperature: -40 °C to +100 °C
- Shaft Diameter: 10 mm
- Shaft Length: 19 mm
- Mechanical Design: Solid shaft, face mount flange
