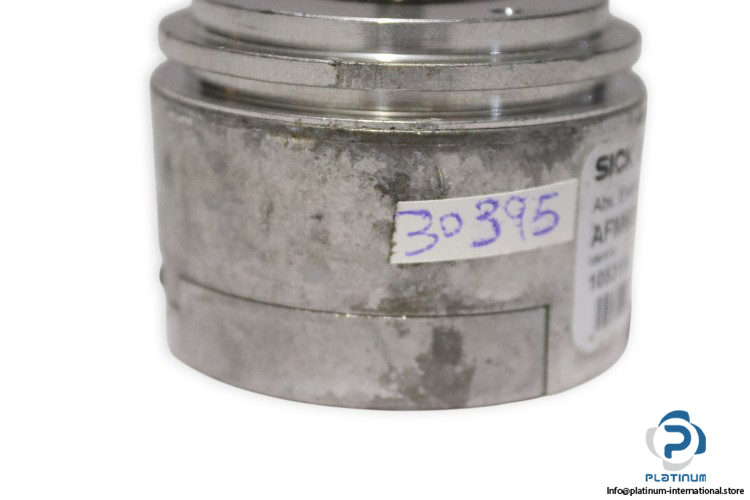

Sick AFM60B-S1AM004096 Absolute Encoder
The Sick AFM60B-S1AM004096 is a high-resolution absolute encoder designed for precision positioning in industrial automation. Featuring SSI driver technology, CW/CCW adjustable code sequence, and robust solid shaft construction, it provides accurate and reliable motion feedback even in demanding environments.

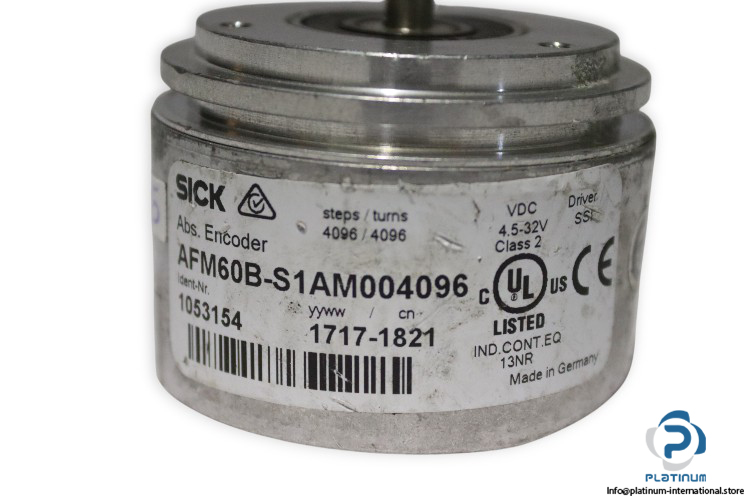

Manufacturer: Sick
Type: Absolute Encoder
Model: AFM60B-S1AM004096
ID No.: 1053154
yyww – cn: 1717-1821
Technical information
- Voltage: 4.5 to 32 V DC
- Driver: SSI
- Class: 2
- Steps / Turns: 4096 / 4096
- Number of Steps per Revolution (Max. Resolution): 4096 (12 bit)
- Number of Revolutions: 4096 (12 bit)
- Code Sequence: CW/CCW adjustable
- Connection Type: Cable, 8-wire, universal, 5 m

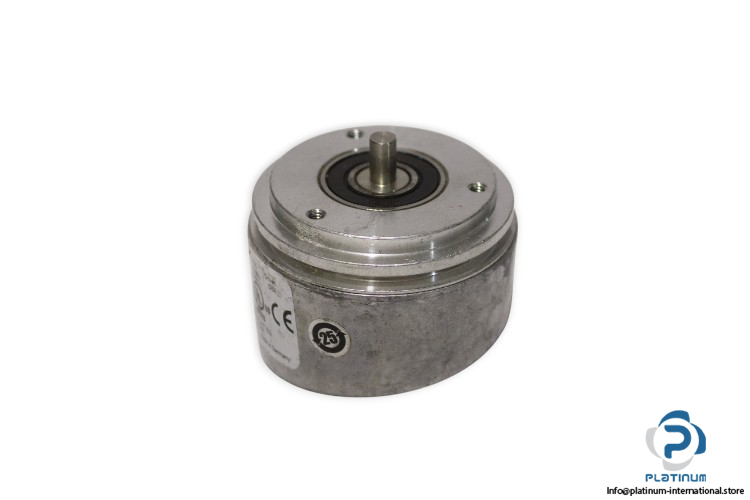

- Mechanical Design: Solid shaft, servo flange
- Shaft Diameter: 6 mm
- Shaft Length: 10 mm
- Operating Temperature Range: -40 °C to +100 °C
