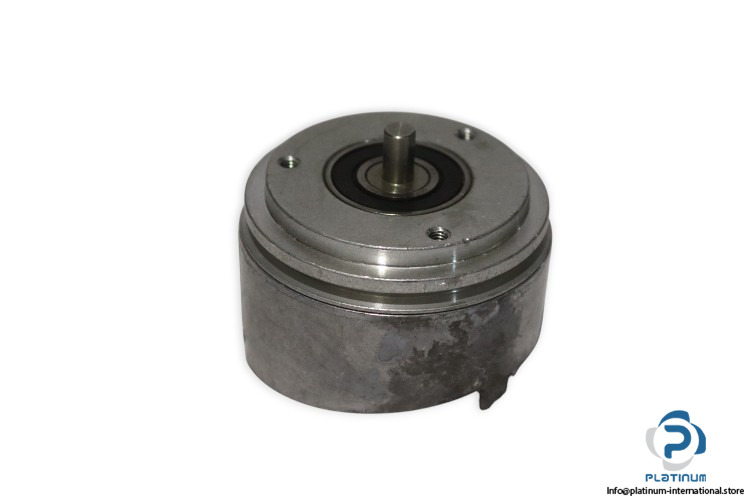

Sick AFS60A-S1PK262144 Absolute Encoder

The Sick AFS60A-S1PK262144 is a high-precision absolute encoder designed for demanding industrial automation tasks. With an 18-bit resolution, adjustable code sequence, and robust enclosure ratings, it ensures reliable feedback and operation in harsh environments.

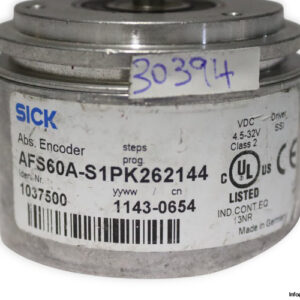

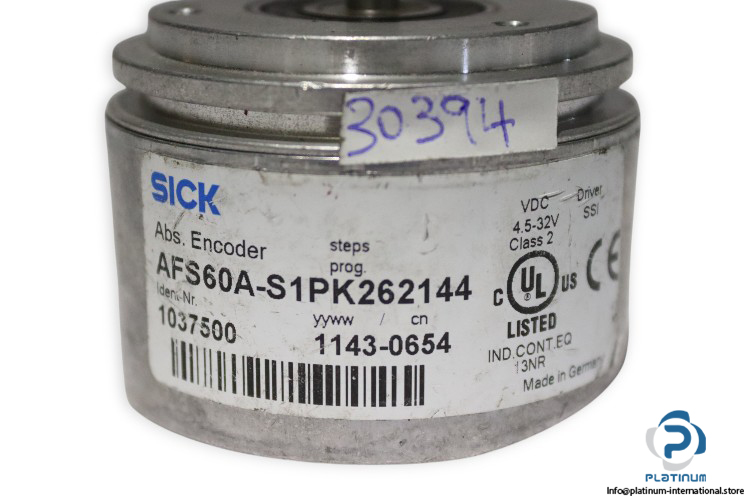

Manufacturer: Sick
Type: Absolute Encoder
Model: AFS60A-S1PK262144
ID No.: 1037500
yyww – cn: 1143-0654

Technical information

• Voltage: 4.5 to 32 V DC
• Class: 2
• Driver: SSI
• Number of Steps per Revolution (Max. Resolution): 262,144 (18 bit)
• Code Sequence Parameter Adjustable: CW / CCW
• Connection Type: Cable, 8-wire, universal, 1.5 m
• Power Consumption: ‰¤ 0.7 W
• Mechanical Design: Solid shaft, Servo flange
• Shaft Diameter: 6 mm
• Shaft Length: 10 mm
• Enclosure Rating: IP65 (shaft side) / IP67 (housing side)
• Operating Temperature Range: -40 °C to +100 °C
