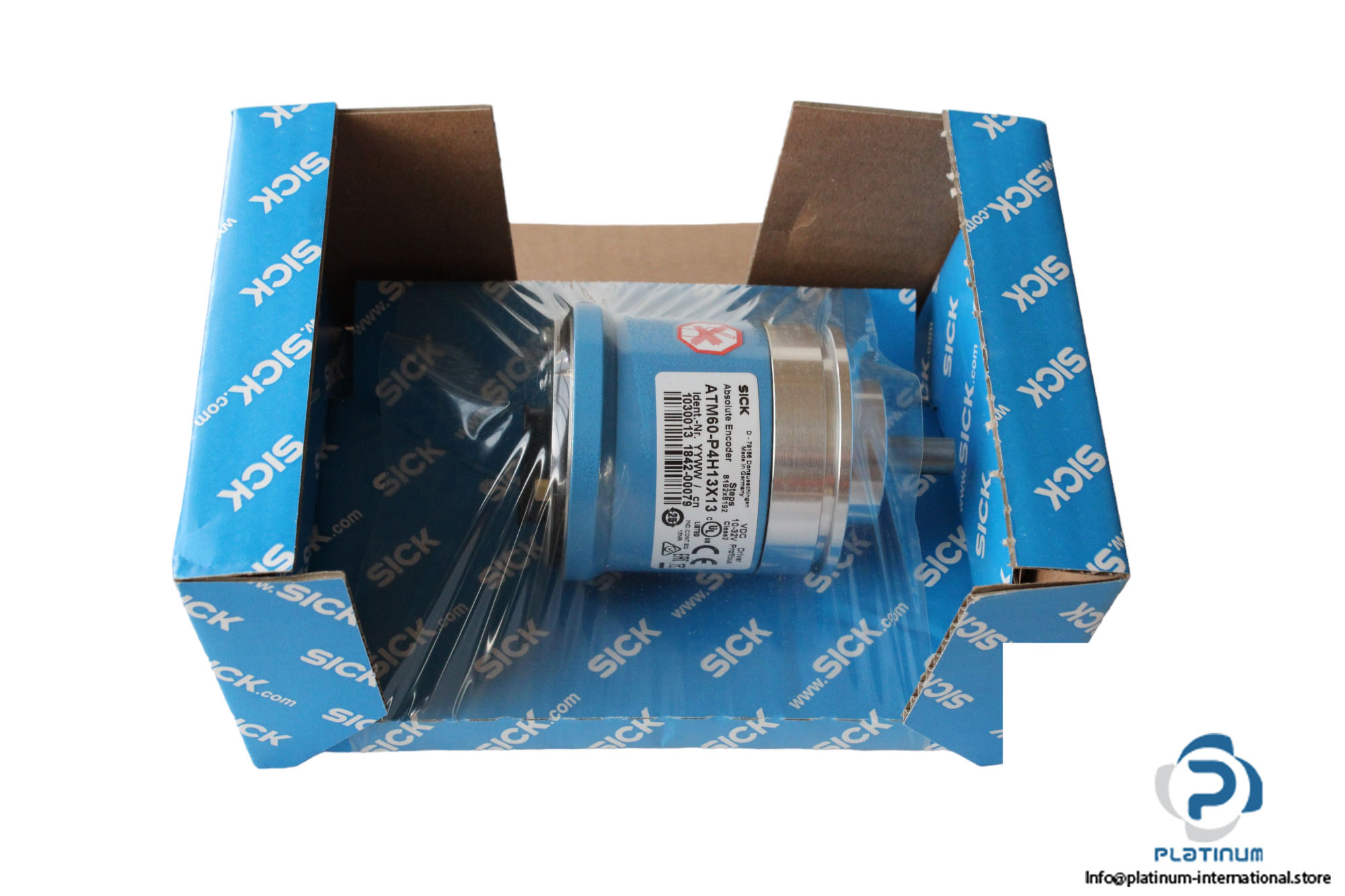

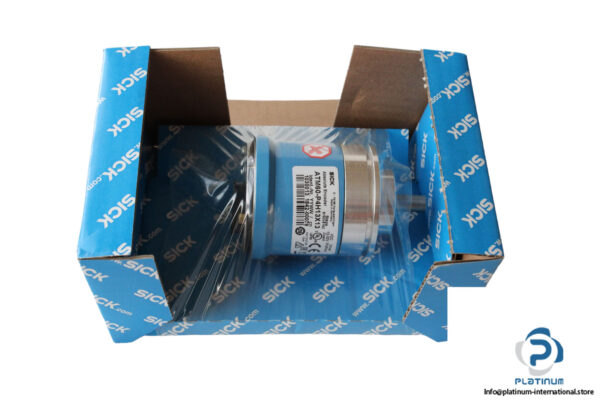

SICK ATM60P4H13X13 ABSOLUTE ENCODER

Engineered for high-precision positioning and reliable performance in harsh industrial environments, the Sick ATM60P4H13X13 Absolute Encoder offers long-lasting durability and advanced signal transmission. Designed with PROFIBUS connectivity and robust materials, it’s ideal for automation systems requiring accurate feedback and minimal maintenance.

Manufacturer: Sick
Type: Absolute Encoder

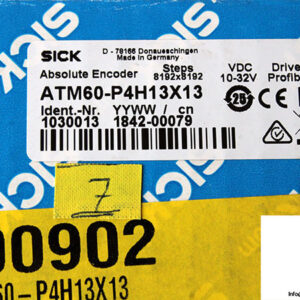

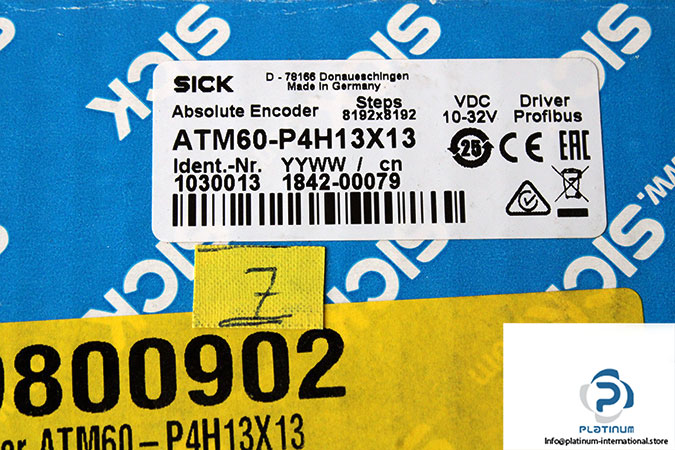

Model: ATM60P4H13X13
Part No.: 1030013 1842-00079

Technical Information

• Supply Voltage: 10 / 32 V DC
• Power Consumption: ‰¤ 2 W (without load)
• Connection Type: Bus adapter for PROFIBUS
• Resolution: 8,192 steps/revolution (13 bit)
• Mechanical Design: Solid shaft, face mount flange
• Shaft Diameter: 10 mm
• Shaft Length: 19 mm
• Shaft Material: Stainless Steel
• Housing Material: Aluminum Die Cast
• Operating Torque: 1.8 Ncm (with shaft seal)
• Operating Temperature: -20 / 85 °C
• Enclosure Rating: IP67 (with shaft seal)
• Dimensions: 66.8 x 59.5 x 48 mm
