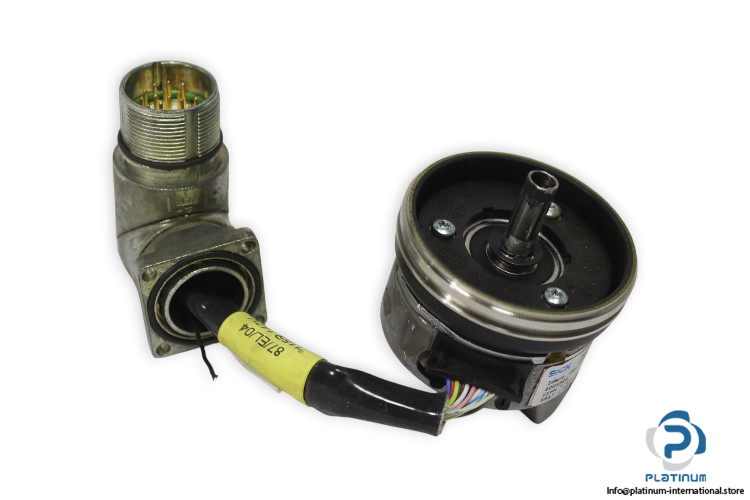

SICK CFS50AAZ00S12 MOTOR FEEDBACK SYSTEM
High-resolution motor feedback system with integrated cable, designed for precise motion control and feedback in servo applications. This compact incremental encoder from Sick delivers reliable performance with low power consumption, optimized for dynamic positioning in demanding environments.

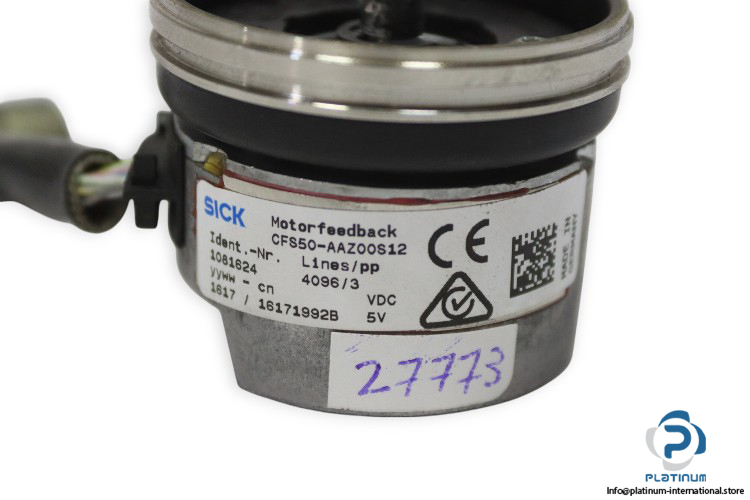

- Manufacturer: Sick
- Type: Motor Feedback System with Cable
- Model: CFS50AAZ00S12
- Part No.: 1081624
- CN: 16171992B
- Series: CFS50

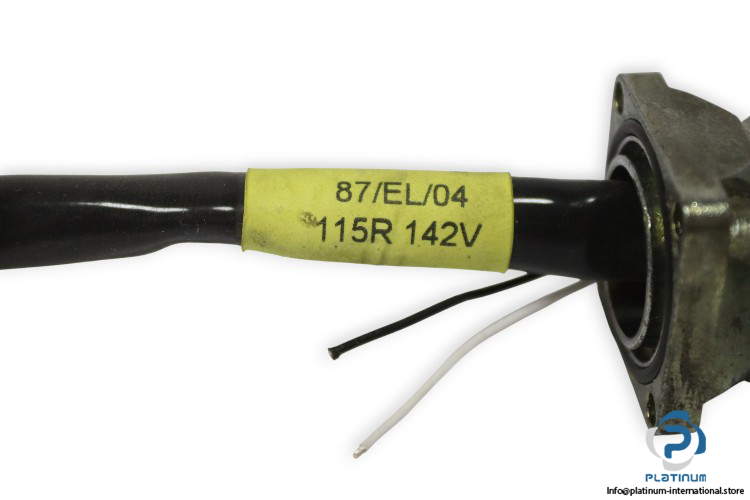

- Cable: 87/EL/04 115R 142V
Technical Information
- Operating Voltage: 4.5 to 5.5 V DC
- Number of Lines per Revolution: 4096
- Measuring Step: 90° / number of lines
- Commutation Signals: 3 pole pairs
- Reference Signal: 1 (positioned at 90° electric, gated with A and B)
- Operating Speed: 6,000 min»¹
- Communication Interface: Incremental
- Current Consumption: 60 mA
- Maximum Output Frequency: 820 kHz
- Shaft Version: Plug-in Shaft
- Flange Type / Stator Coupling: Resolver Support
- Operating Temperature Range: -20 °C to +115 °C
- Enclosure Rating: IP40
