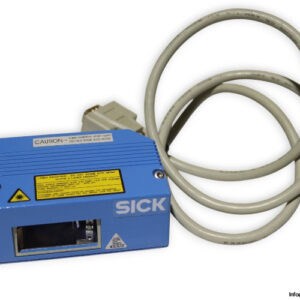

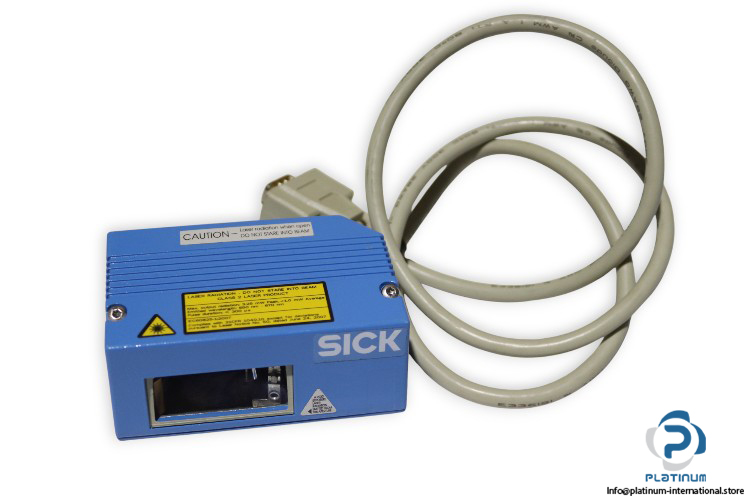

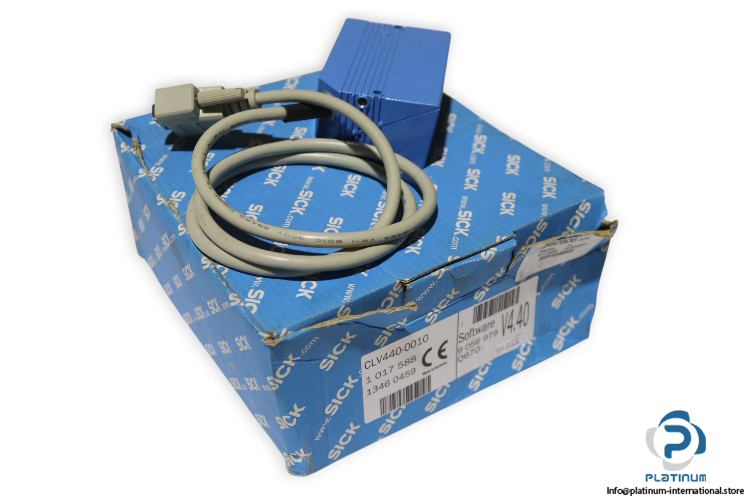

SICK CLV 440-0010 FIXED MOUNT BARCODE SCANNER

The SICK CLV 440-0010 is a high-performance fixed mount barcode scanner designed for precise and fast code reading in industrial automation environments. Built with dynamic focus technology, it delivers reliable results across varying distances and applications.

Manufacturer: SICK
Type: Fixed Mount Barcode Scanner

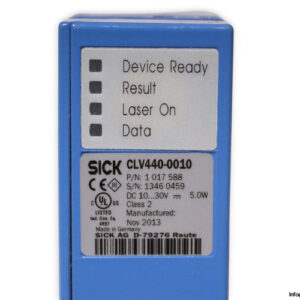

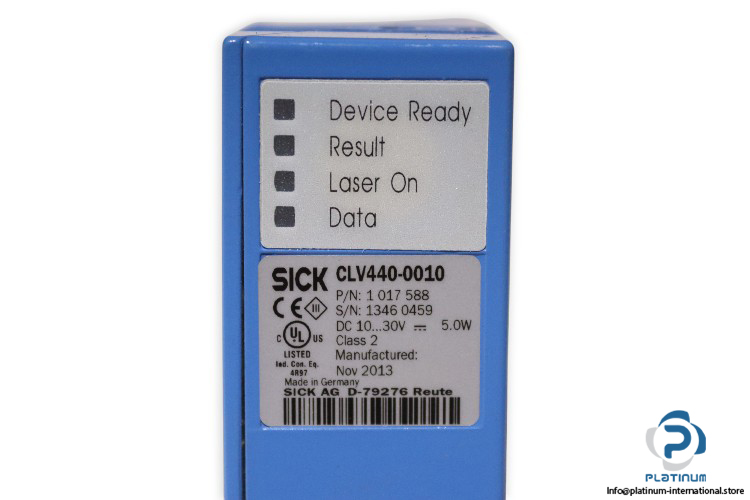

Model: CLV 440-0010

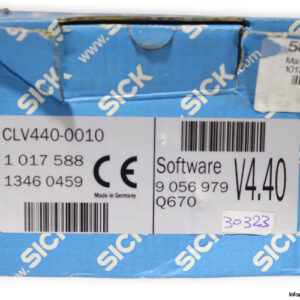

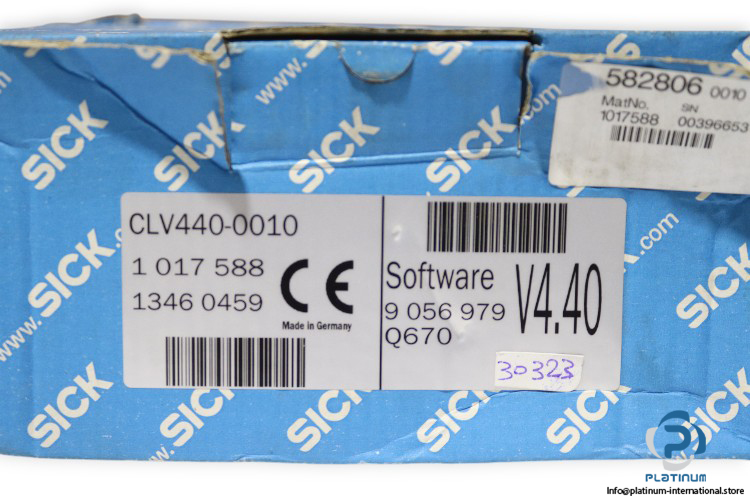

Part No.: 1 017 588
SN: 1346 0459
Ref No.: 9 056 979 Q670
Version: V4.40

Technical Information

• Connection Type (Standard): 1 x 15-pin D-Sub HD male connector (0.9 m)
• Reading Field: Front
• Scanner Design: Line scanner
• Optical Focus: Dynamic focus
• No. of Distance Configurations: ‰¤ 8
• Focus Adjustment Time: ‰¤ 50 ms
• Focus Trigger Source: Switching input œSensor 2 / serial interface / timer
• Light Source: Visible red light (650 nm)
• Laser Class: 2 (DIN EN 60825-1)
• Aperture Angle: ‰¤ 50°
• Reading Distance: 150 mm … 840 mm
• Scanning Frequency: 300 Hz … 800 Hz
• Code Resolution: 0.2 mm … 1 mm
• Supply Voltage: 10 V DC … 30 V ACDC
• Power Consumption: 5 W
• Housing: Die-cast zinc
