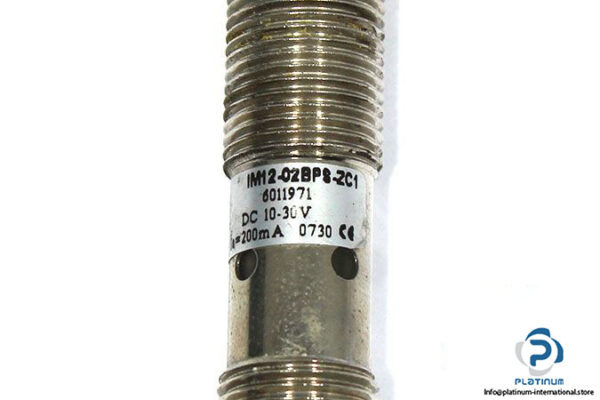

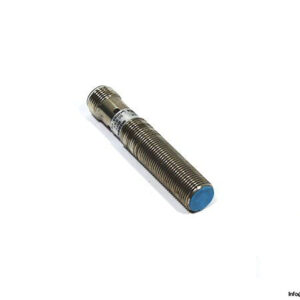

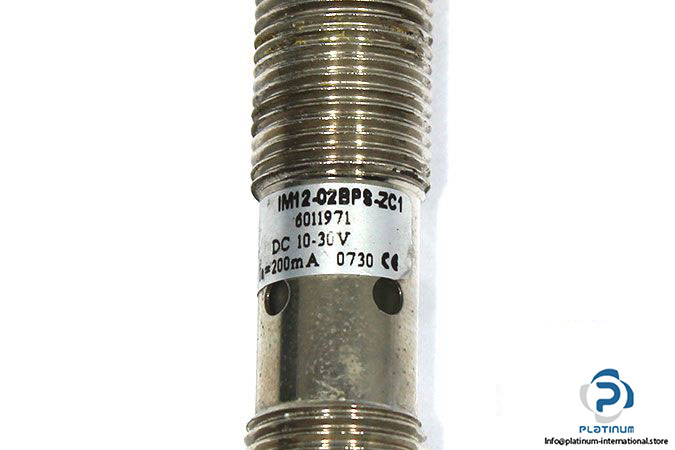

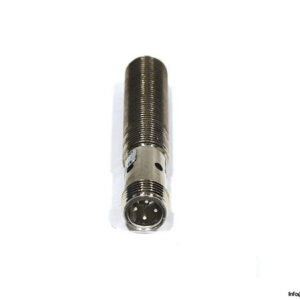

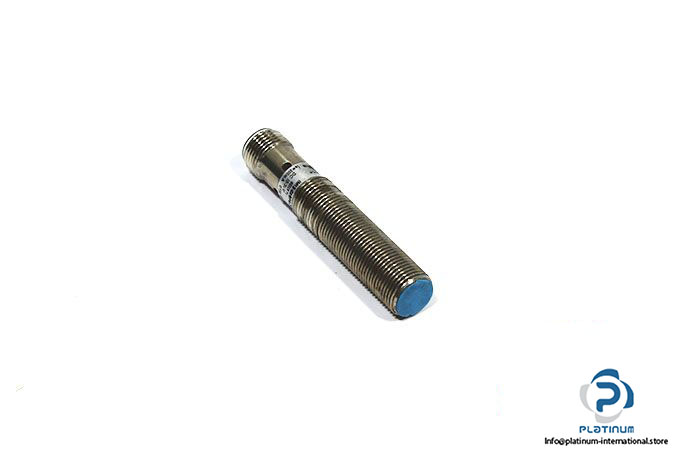

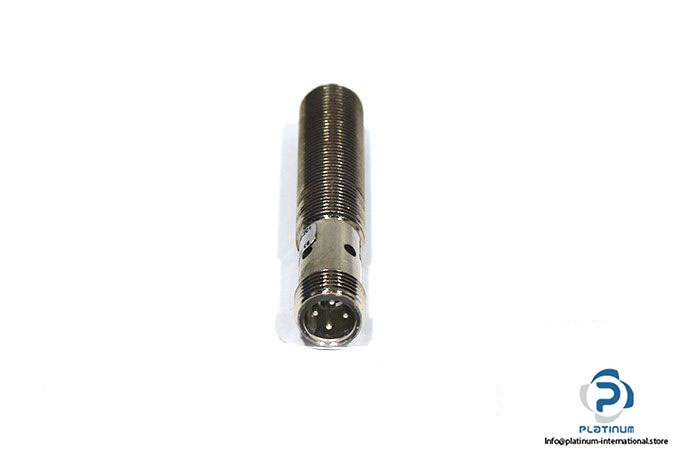

Manufacturer: SICK
Type: Inductive Sensor
Model: IM12-02BPS-ZC1
Part No.: 6011971
Sensing Range Sn: 2 mm
Supply Voltage: 10 … 30 V DC
Continuous Current: ≤ 200 mA
Voltage Drop: ≤ 1.2 V
Switching Frequency: 2000 Hz
Switching Output: PNP
Output Function: Normally Open
Housing: Cylindrical Thread Design
Connection Type: Male Connector M12, 4-pin
Ambient Operating Temperature: -25 … 70 °C
Enclosure Rating: IP67
Diameter, Length: 12, 65 mm
Housing Material: Brass, Nickel-Plated Brass
Sensing Face Material: Plastic
Installation Type: Flush
| Weight | 0,02 kg |
|---|---|
| Condition | |
| Part No. | |
| Model | |
| Shelf No. | |
| Manufacturer | |
| Type of Product | |
| Min. Voltage [DC] | |
| Max. Voltage [DC] | |
| Nominal Voltage [DC] | |
| Switch Output | |
| Output Function | |
| Connection | |
| No. of Pin | |
| Material | |
| Max. Sensing Range [mm] | |
| Diameter [mm] | |
| Length [mm] |
