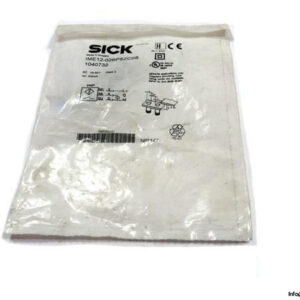

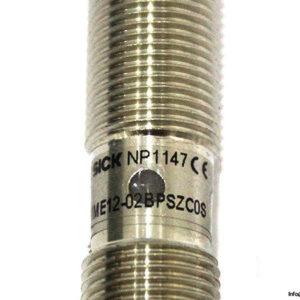

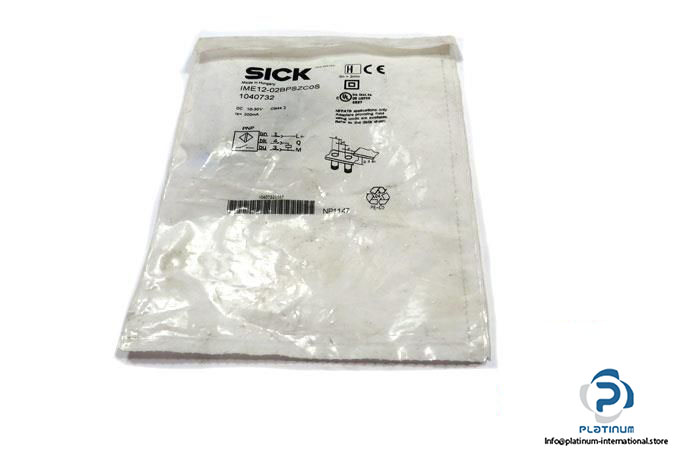

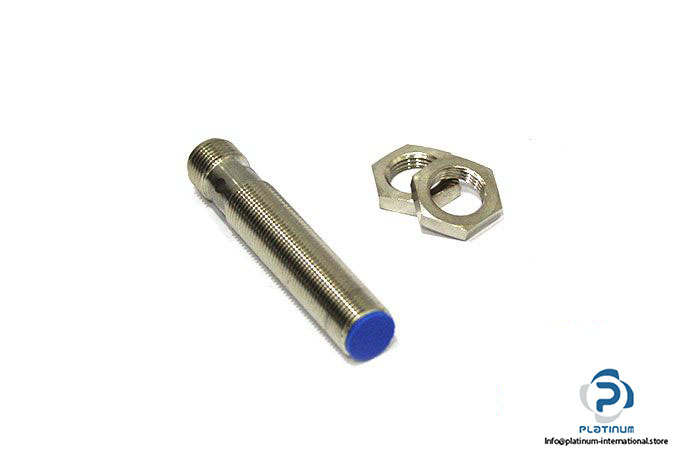

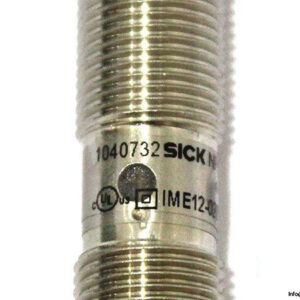

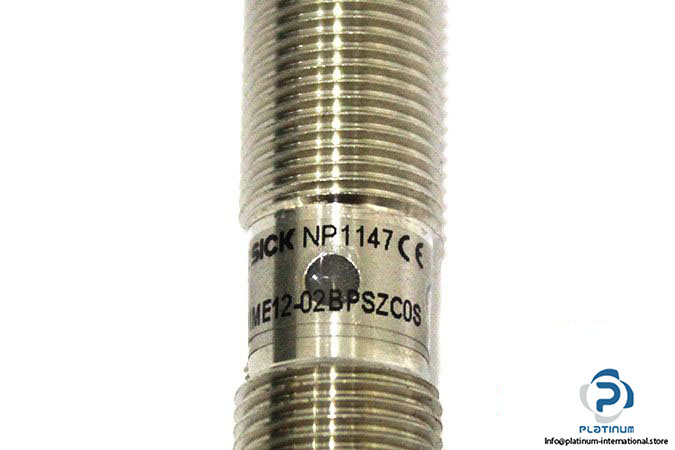

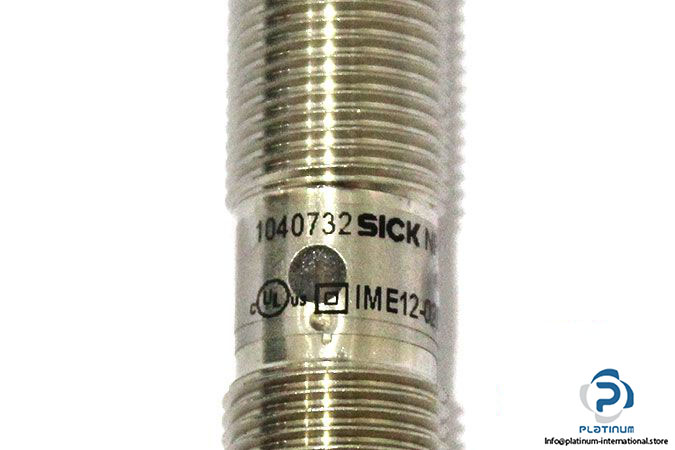

Manufacturer: SICK
Type: INDUCTIVE PROXIMITY SENSOR
Model: IME12-02BPSZCOS
Part No.: 1040732
Sensing range: 2 mm
Safe sensing range: 1.62 mm
Time delay before availability: ≤ 100 ms
Supply Voltage: 10 … 30 V DC
Current consumption (without load): 10 mA
Continuous current Ia: 200 mA
Voltage Drop: 2 V
Switching Output: PNP
Output function: Normally open
Switching Frequency: 2000 Hz
Connection type: M12 Connector, 4 pin
Enclosure rating: IP67
Ambient Operating temperature: -25 … 75°C
Material: Metal, Nickel-plated brass; sensing face Plastic (PA 66)
Mounting: Flush mountable
Housing: Cylindrical thread
Thread size: M12 x 1
Diameter: 12 mm
Housing, thread length: 65, 48 mm
Weight: 0.03 kg
