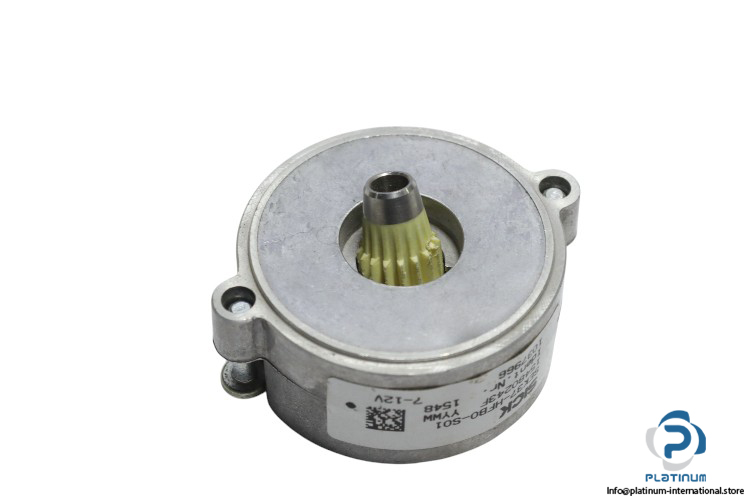

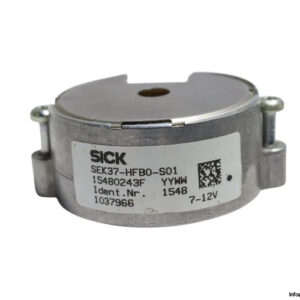

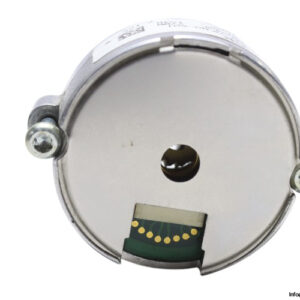

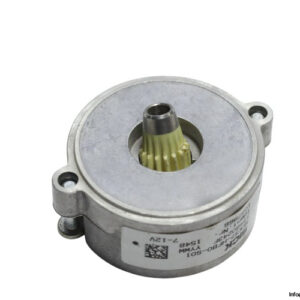

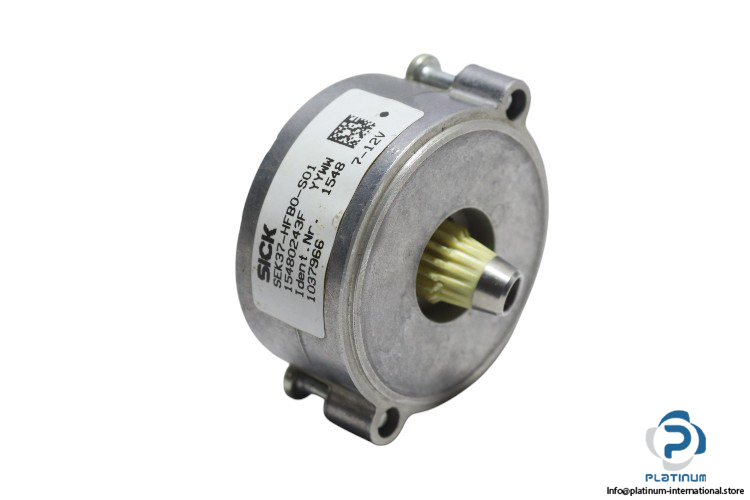

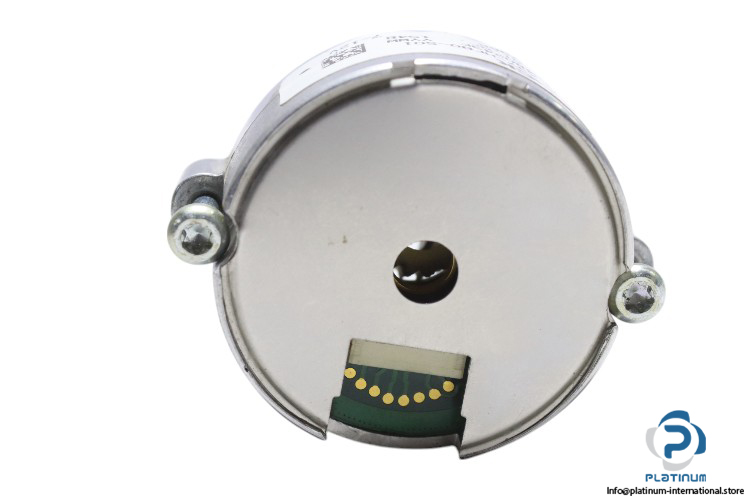

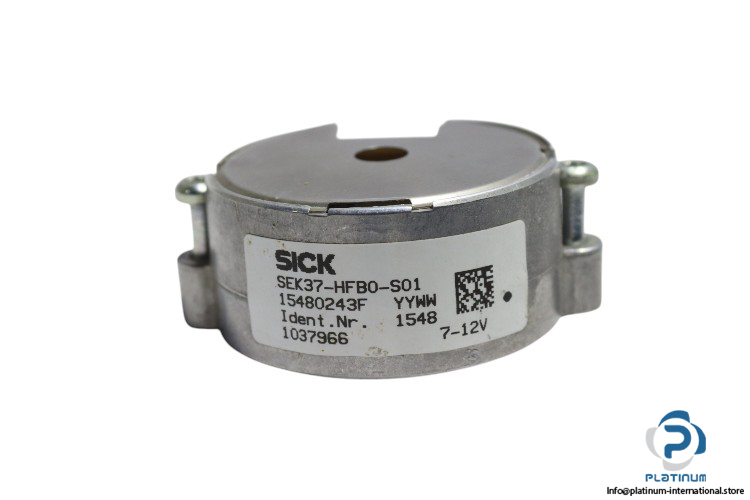

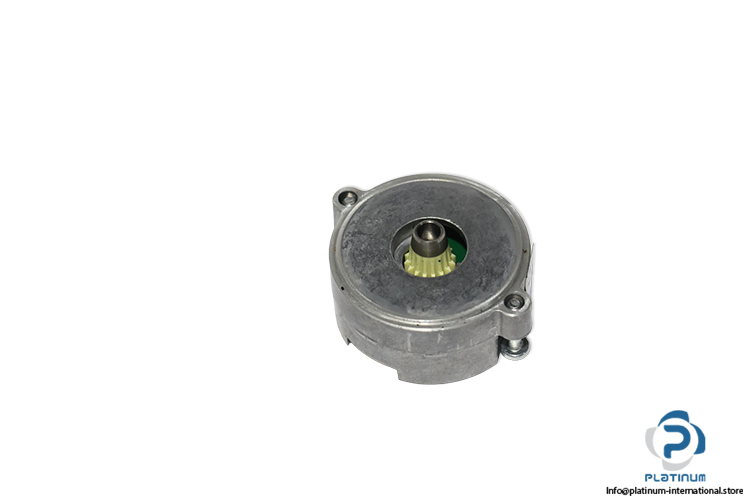

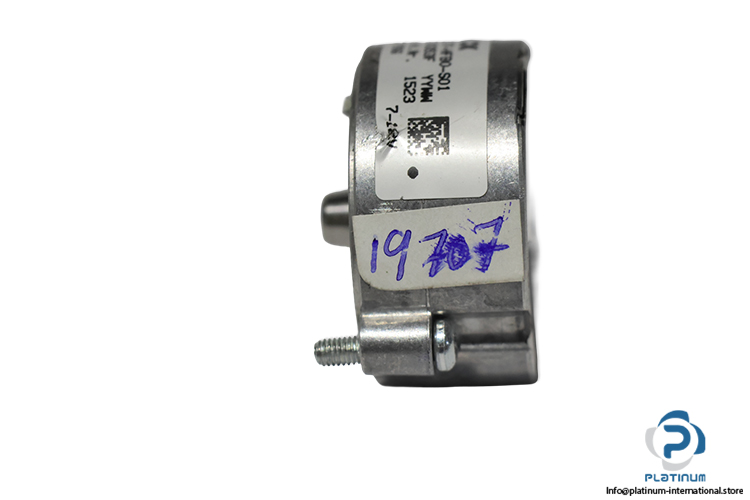

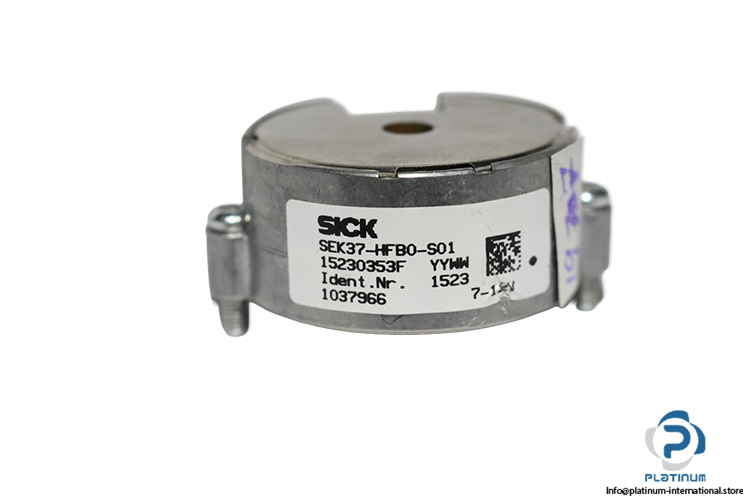

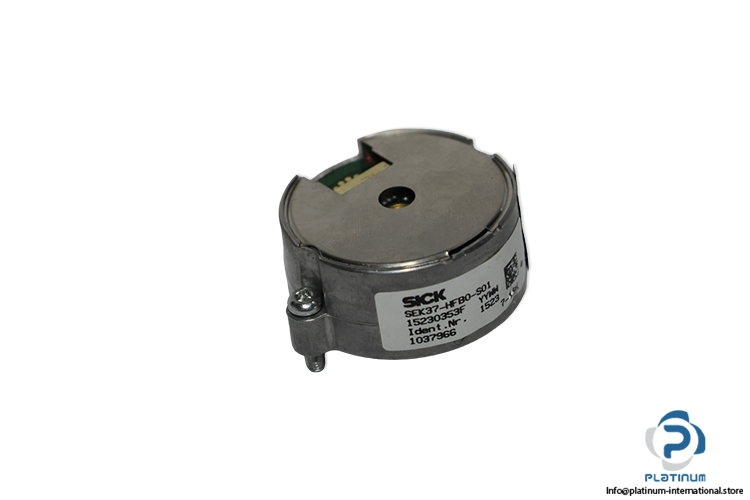

Sick SEK37HFB0S01 Motor Feedback Rotary Encoder
The Sick SEK37HFB0S01 Motor Feedback Rotary Encoder is a high-precision feedback device designed for reliable motion control in industrial automation. Featuring a tapered shaft, HIPERFACE® communication, and a compact design, it delivers accurate position sensing and smooth performance in demanding environments.
- Manufacturer: Sick
- Type: Motor Feedback Rotary Encoder
- Model: SEK37HFB0S01
- Part No.: 15480243F
- ID No.: 1037966
Technical Information
- Shaft Type: Tapered Shaft
- Operating Speed: 6000 min»¹
- Sine/Cosine Periods Per Revolution: 16
- Steps Number Per Revolution Max.: 512 via RS485
- Rated Voltage: 7 to 12 V DC
- Rated Current Consumption: 50 mA
- Absolute Value Code Type: Binary
- Communication Interface: HIPERFACE®
- Electrical Connection: Male Connector, 8-Pin, Radial
- Outer Diameter: 36 mm
- Protection Class: IP20
- Operating Temperature: -40 to 115 °C
- Dimensions: 17.5 x 44 mm
Ideal for motor feedback applications in automation and robotics, the Sick SEK37HFB0S01 ensures precise motion control with reliable data transmission.
