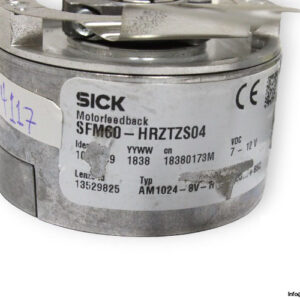

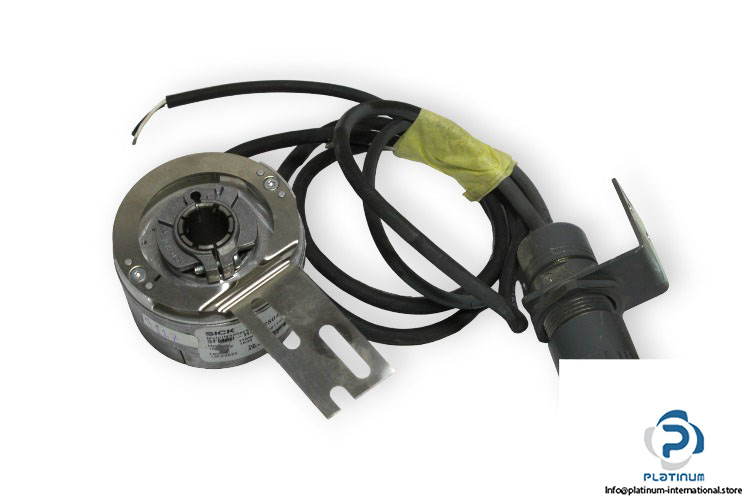

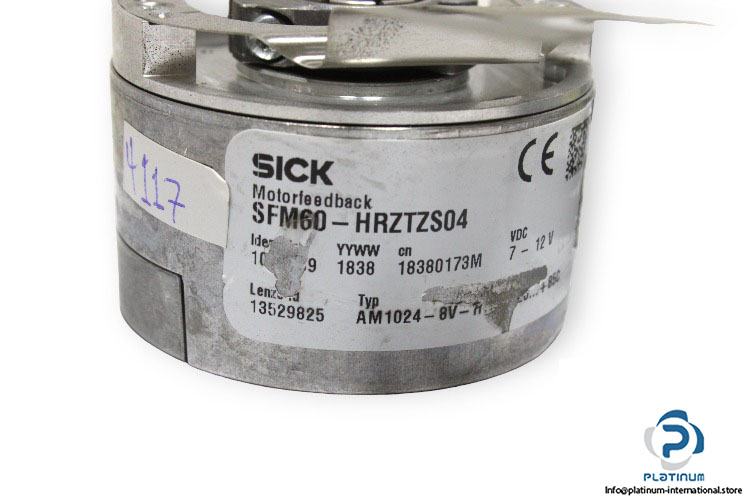

SICK SFM60-HRZTZS04 ROTARY MOTOR FEEDBACK SYSTEM – HIPERFACE
The SFM60-HRZTZS04 from SICK is a high-performance rotary motor feedback system equipped with HIPERFACE interface, designed to deliver precise feedback in dynamic motion applications. Its through hollow shaft and durable construction make it ideal for demanding industrial environments.
Manufacturer: SICK
Type: Motor Feedback Systems Rotary Hiperface
Model: SFM60-HRZTZS04
Ref No.: 13529825
Technical Information
- Supply Voltage: 7 / 12 V DC
- Recommended Supply Voltage: 8 V DC
- Power Consumption: < 80 mA (without load)
- Shaft Version: Through Hollow Shaft
- Shaft Diameter: 14 mm
- Operating Speed: ‰¤ 9,000 min»¹
- Angular Acceleration: ‰¤ 500,000 rad/s²
- Operating Torque: 0.6 Ncm (+20 °C)
- Start Up Torque: 0.8 Ncm (+20 °C)
- Connection Type: Cable, Radial, 1.0 m
- Type of Code for Absolute Value: Binary
- Communication Interface: HIPERFACE
- Shaft Material: Stainless Steel
- Flange Material: Zinc Diecast
- Housing Material: Aluminum Die Cast
- Operating Temperature: -20 / +85 °C
- Degree of Protection: IP54
