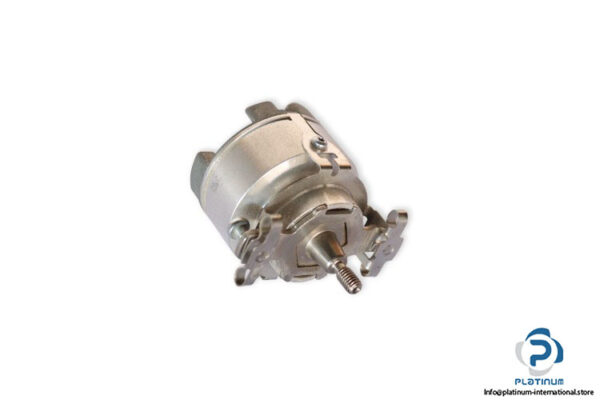

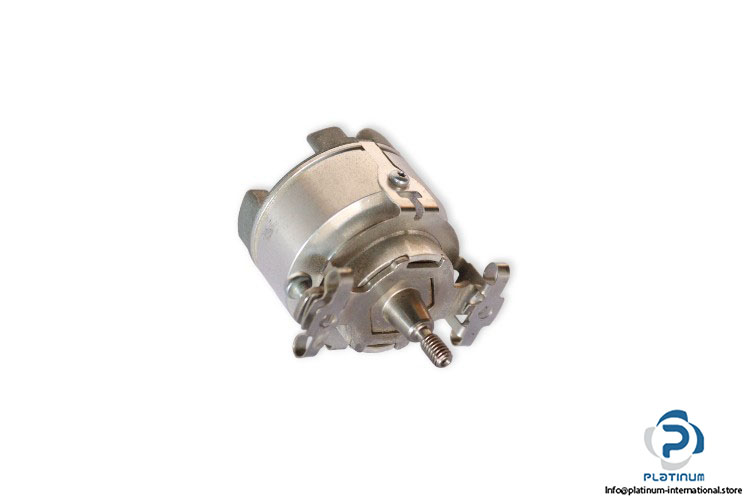

SICK SKM36-HFA0-K02 MOTOR FEEDBACK SYSTEM
The Sick SKM36-HFA0-K02 rotary motor feedback system is engineered for precision and reliability, providing high-resolution position feedback with HIPERFACE interface technology. Designed for use in servo drive applications, it combines compact construction with robust performance.
Manufacturer: Sick
Type: Motor Feedback Systems Rotary Hiperface

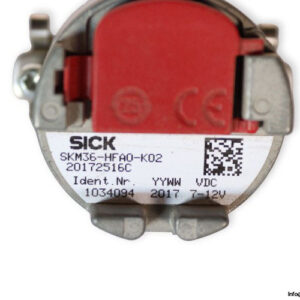

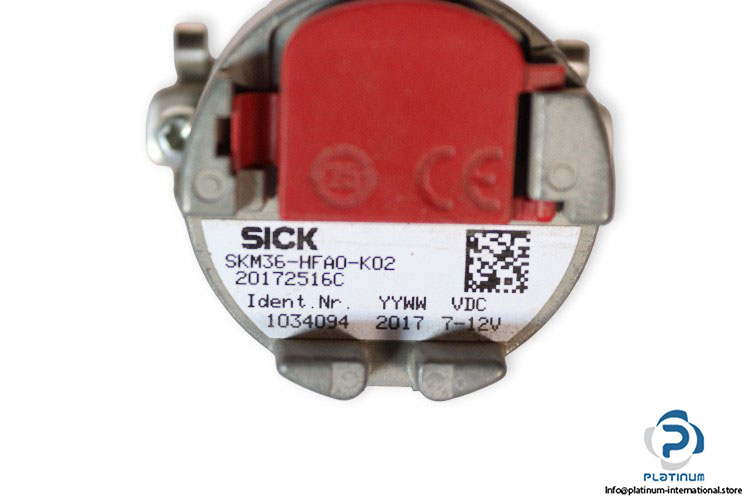

Model: SKM36-HFA0-K02
Part No.: 20172516C
Id. No.: 1034094
Technical Information
- Shaft Type: Tapered shaft
- Flange Type / Stator Coupling: Spring mounting plate, stator coupling
- Sine/Cosine Periods Per Revolution: 128
- Number of Absolute Ascertainable Revolutions: 4096
- Type of Code for Absolute Value: Binary
- Communication Interface: HIPERFACE
- Connection Type: Male connector, 8-pin, radial
- Shaft Size: 8 mm
- Recommended Supply Voltage: 8 V DC (7 / 12 V DC)
- Power Consumption (Without Load): 60 mA
- Operating Speed: 12,000 min»¹ / 12,000 U/min
- Operating Temperature Range: -20 / +110 °C
- Enclosure Rating: IP50
