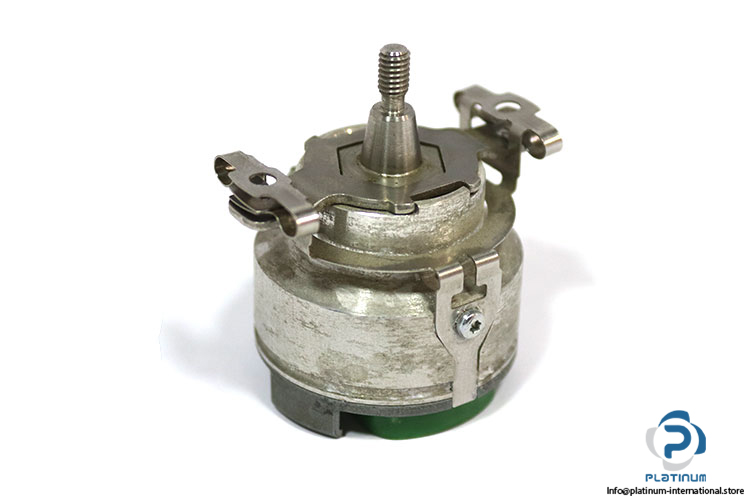

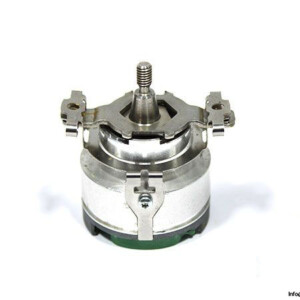

SICK | STEGMANN SKS36-HFA0-K02 Motor Feedback System
The SICK | STEGMANN SKS36HFA0K02 Motor Feedback System is a high-precision encoder designed for advanced servo applications requiring accurate position and speed detection. Built on the proven SKS36 series, it provides reliable motor feedback using the HIPERFACE® interface, ensuring optimal performance in demanding automation environments.
Manufacturer: SICK | STEGMANN
Type: Motor Feedback System

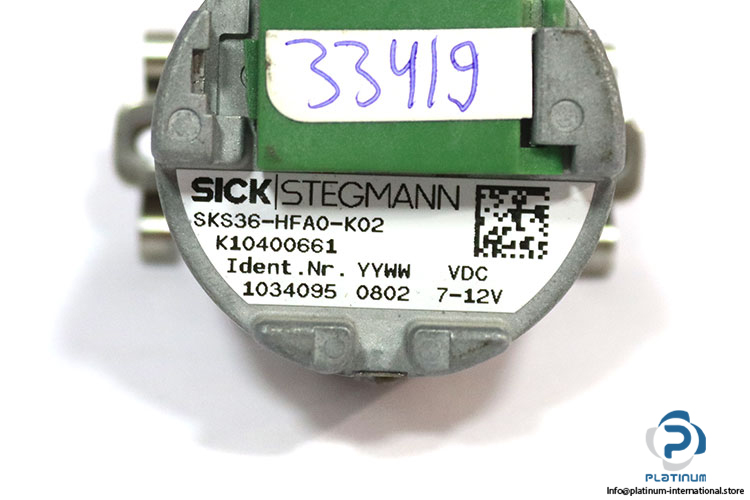

Model: SKS36-HFA0-K02
Part No.: 1034095 0826 / K60403110
Technical Information
- Series: SKS36
- Shaft Version: Tapered Shaft
- Shaft Diameter: 4 mm (M4)
- Sine/Cosine Periods Per Revolution: 128
- Total Number of Steps: 4096
- Absolute Ascertainable Revolutions: 1
- Code Type (Absolute Value): Binary
- Communication Interface: HIPERFACE®
- Recommended Supply Voltage: 7 / 12 V DC
- Power Consumption (No Load): 60 mA
- Flange Type / Stator Coupling: Spring Mounting Plate, Stator Coupling
- Connection Type: Male Connector, 8-Pin, Radial
- Operating Temperature: -20 / 110 °C
- Dimensions: 40 x 45 mm
