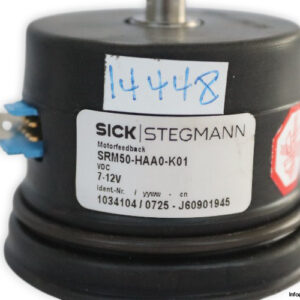

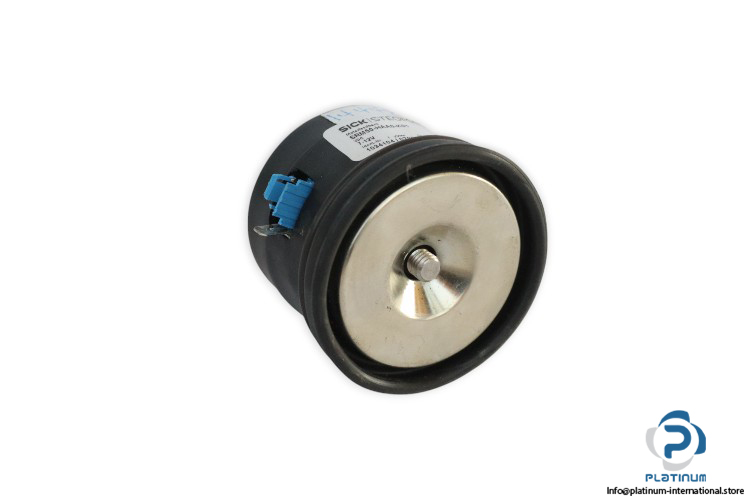

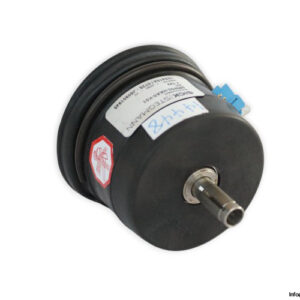

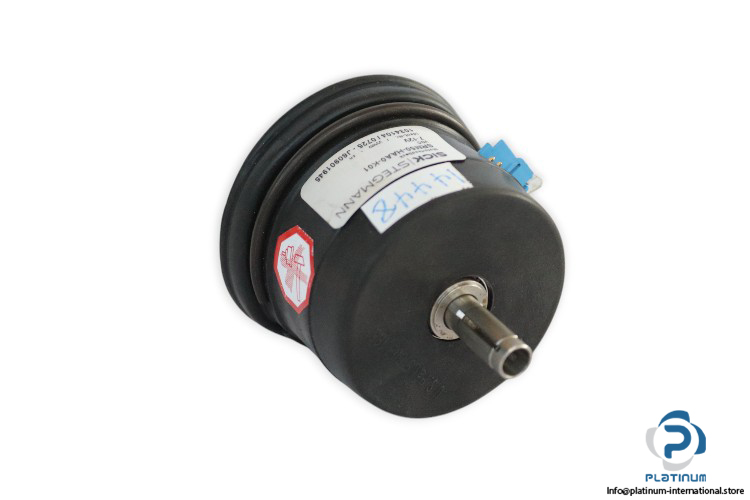

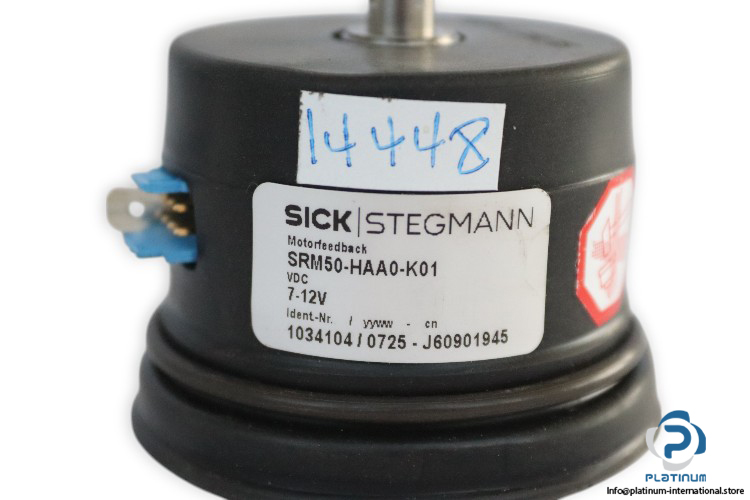

SICK|STEGMANN SRM50HAA0K01 MOTOR FEEDBACK SYSTEM

The SRM50HAA0K01 from SICK|STEGMANN is a high-precision motor feedback system built for advanced control, monitoring, and encoder-based applications. It features HIPERFACE communication, a solid 7 mm shaft, and precise absolute binary-coded data output, making it ideal for servo drive systems and automation environments.

Manufacturer: SICK|STEGMANN
Type: Motor Feedback System
Model: SRM50HAA0K01
Part No.: 1034104/0725-J60901945

Technical Information

• Series: SRM 50
• Solid Shaft Diameter: 7 mm
• Sine/Cosine Periods Per Revolution: 1,024 PPR
• Operating Voltage: 7 / 12 V DC
• Operating Current Max.: 80 mA
• Operating Speed Max.: 12,000 min»¹
• Total Number of Steps: Multi
• Type of Code for the Absolute Value: Binary
• Digital Parameter Channel: RS 485
• Communication Interface: HIPERFACE
• Available Memory Area:
      EPROM 512: 128 Bytes
      EEPROM 2048: 1,792 Bytes
• Face Diameter: 49 mm
• Total Diameter: 53 mm
• Connection: Connector
• Protection Class: IP40
• Temperature Range: -20 / 115 °C
• Dimensions (L x D): 40 x 53 mm
