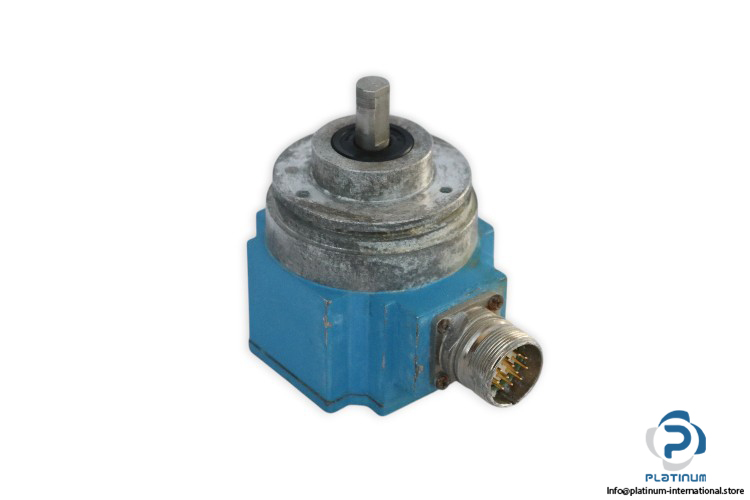

SICK|STEGMANN SRS50HWA0K01 MOTOR FEEDBACK SYSTEM

The SICK|STEGMANN SRS50HWA0K01 is a precision motor feedback system from the SRS 50 series, offering reliable high-resolution performance for servo motor applications. Featuring HIPERFACE communication and binary coding for absolute value, this encoder is built for demanding industrial environments.

Manufacturer: SICK|STEGMANN
Type: Motor Feedback System
Model: SRS50HWA0K01

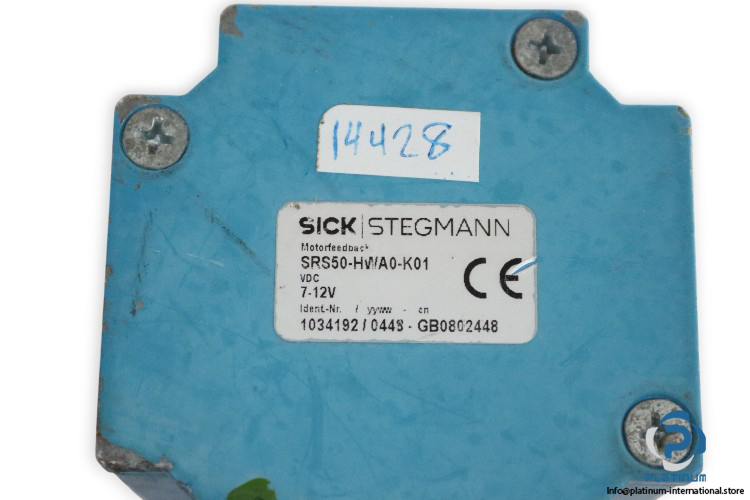

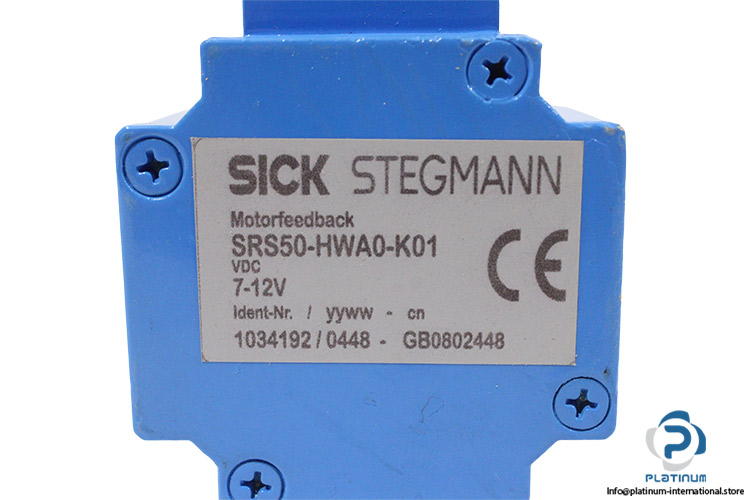

Part No.: 1034192/0448-GB0802448

Technical Information

• Series: SRS 50
• Solid Shaft Diameter: 10 mm
• Sine/Cosine Periods Per Revolution No.: 1,024 PPR
• Operating Speed Max.: 6000 min»¹
• Total Number of Steps: Single
• Operating Voltage: 7 / 12 V DC
• Operating Current Max.: 80 mA
• Shaft Load Capacity: 20 N Axial / 40 N Radial
• Type of Code for the Absolute Value: Binary
• Communication Interface: HIPERFACE
• Available Memory Area with in:
  EPROM 512: 128 Bytes
  EEPROM 2048: 1,792 Bytes
• Flange Diameter: 36 mm
• Total Diameter: 64 mm

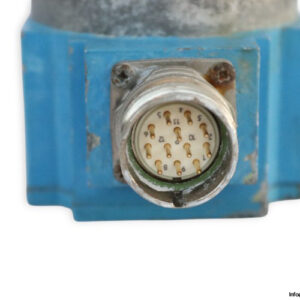

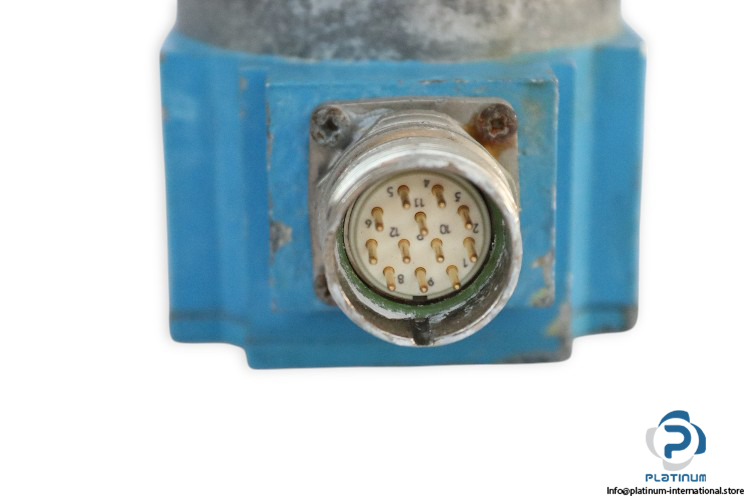

• Connection: Male Connector, 12-Pin
• Protection Class: IP65
• Temperature: -20 / 85 °C
• Dimensions: 73.3 x 64 mm
