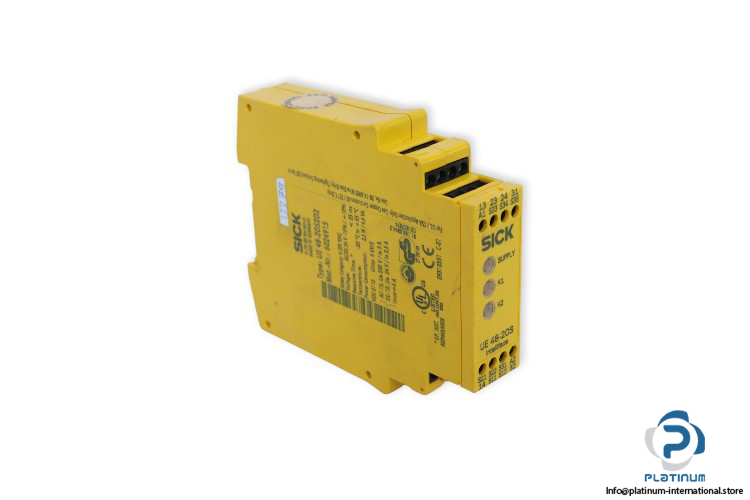

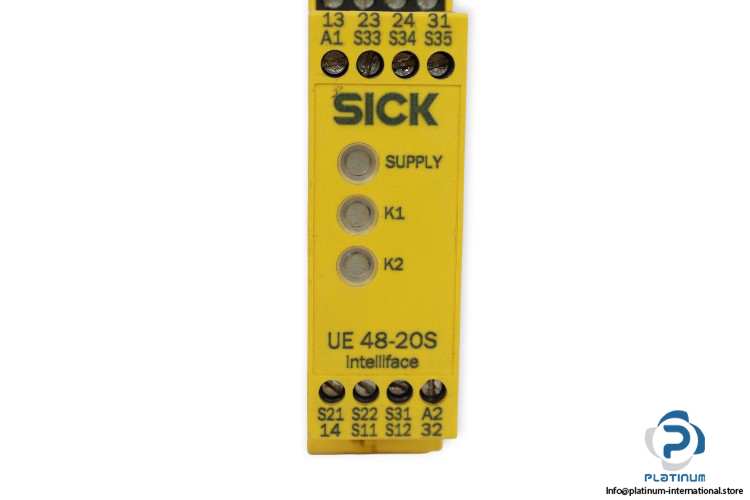

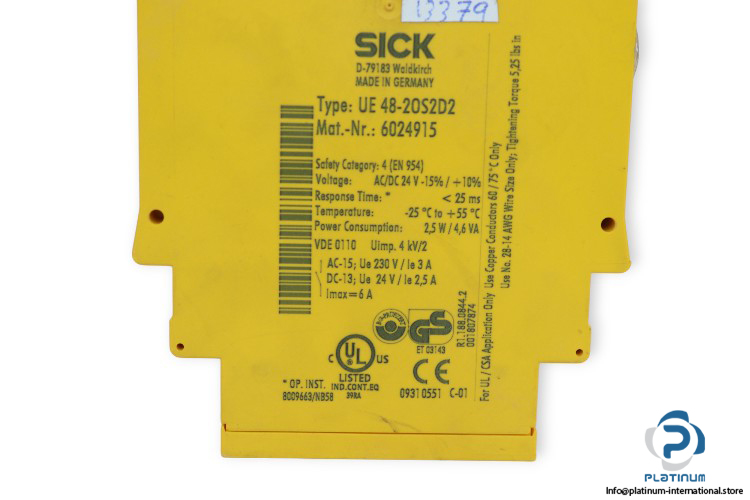

Manufacturer: SICK
Type: Safety Relay
Model: UE482OS2D
Part No.: 6024915

Control Voltage: 22 V DC
Supply Voltage: 24 V AC / DC
Rated Current Max.: 6 A
Power Consumption: 2.5 W / 4.6 VA
Rated Insulation Voltage: 300 V
Rated Impulse Voltage (Uimp): 4 kV
Response Time: 25 ms
No. of Channels: 2 Channel
Contact: 2 Normally Open (NO) + 1 Normally Closed (NC)
Contact Ratings: 230 V AC, 3 A / 24 V DC, 2.5 A
Protection Class: IP20
Temperature: -25 … 55 °C
Dimensions: 114 x 22.5 x 96.5 mm
