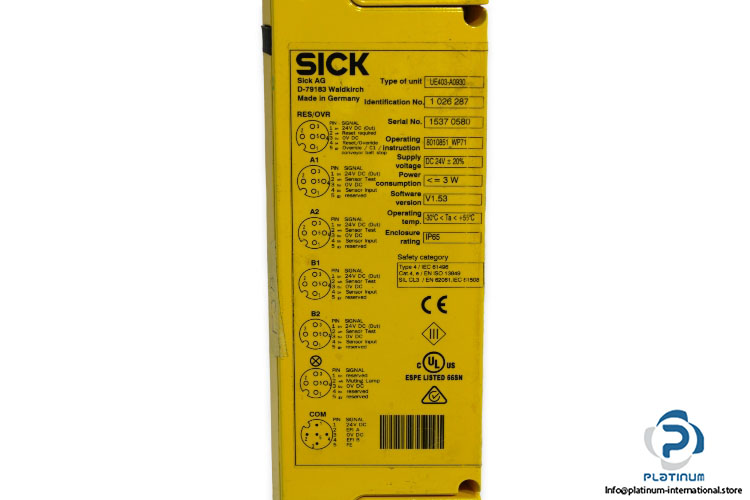

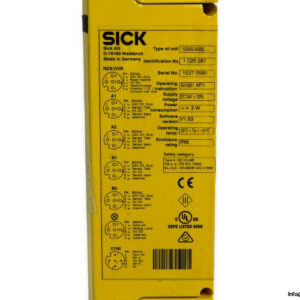

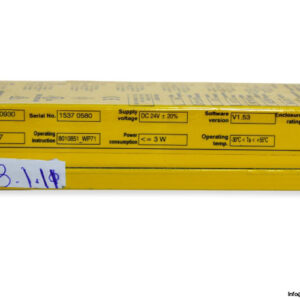

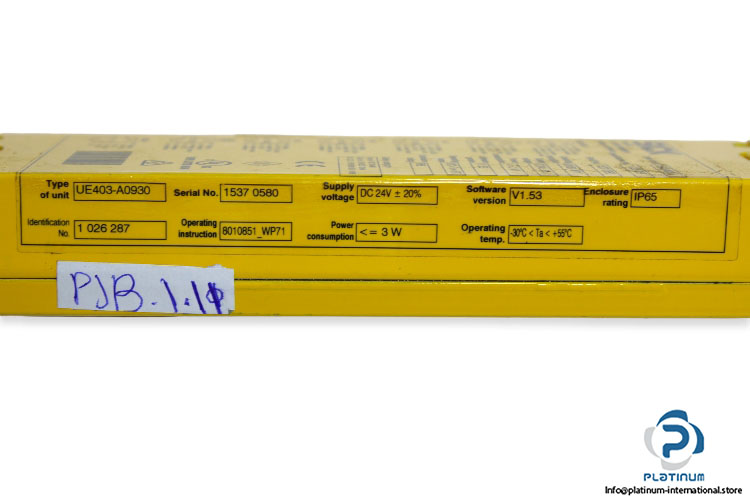

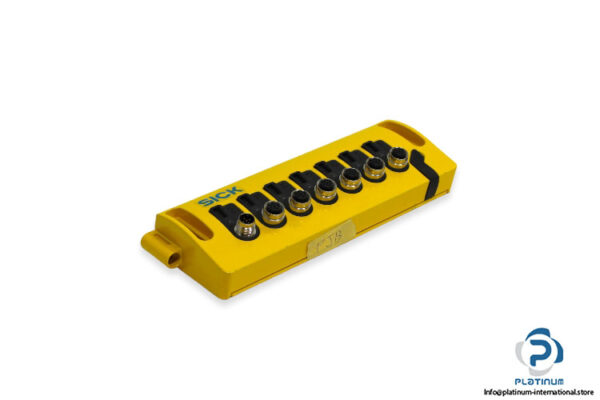

Manufacturer: Sick
Type: Muting Switching Amplifier
Model: UE403A0930
Identification No.: 1026287

Supply voltage: 24 V DC (19.2 V DC … 28.8 V DC)
Power consumption: 3 W (max)
Inputs: override, reset, C1, belt stop, muting sensors
– 24 V DC (11 V DC … 30 V DC)
– 0 V DC (–30 V DC … 5 V DC)
– 6 mA … 15 mA
– 0.5 mA … 1.5 mA
Outputs: voltage supply for reset, override, C1
– 24 V DC (15 V DC … 28.8 V DC) , ≤ 400 mA
Output: muting sensors
– 24 V DC (15 V DC … 28.8 V DC) , ≤ 500 mA
Connection type: Female connector M12, 5-pin
Housing material: Aluminum cast, powder coated
Enclosure rating: IP65
Operating temperature: -30 … +55 °C
Dimensions: 76.5 x 225.2 x 40 mm
