Manufacturer: Sick

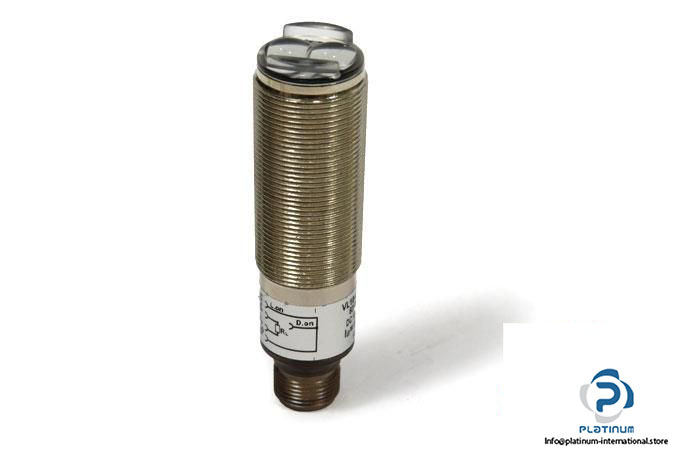

Type: Photoelectric Retro-Reflective Sensor

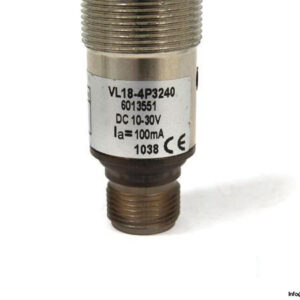

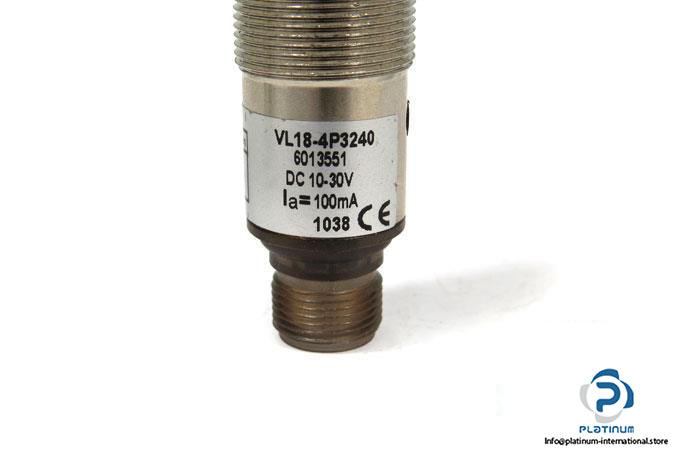

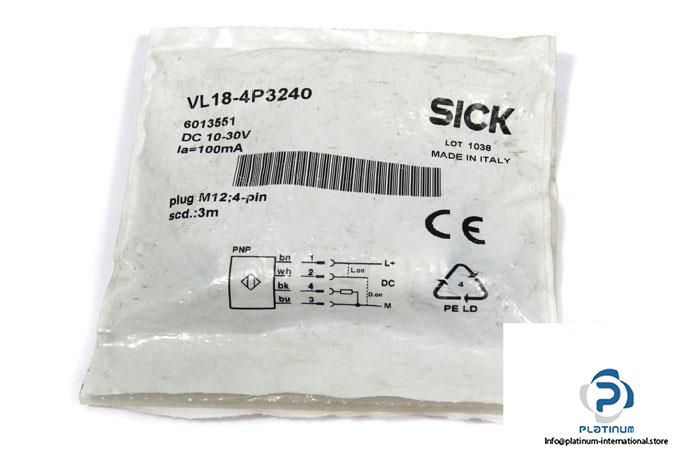

Model: VL184P3240
Part No.: 6013551
Sensing Range: 0.05 … 3 m
Response time max.: 2 ms
Operating Voltage: 10 … 30 V DC
Switching frequency: 250 Hz
Rated operating current: 100 mA DC
Switching output: PNP
Switching mode: Light/dark switching
Type of light: LED, Visible red light
Light spot size (distance): 150 mm, 3 m

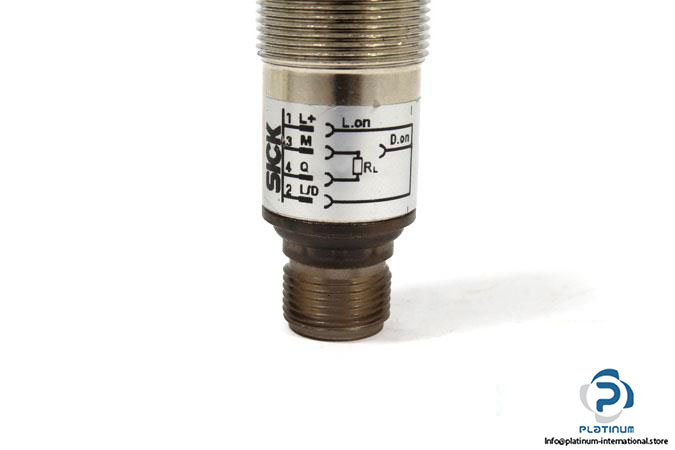

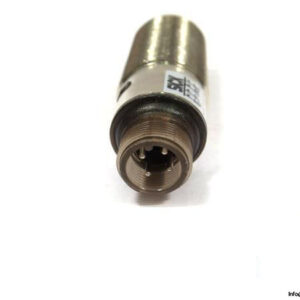

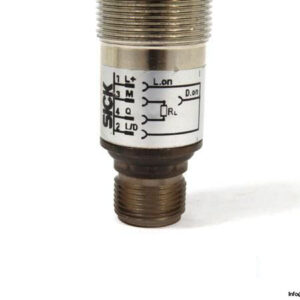

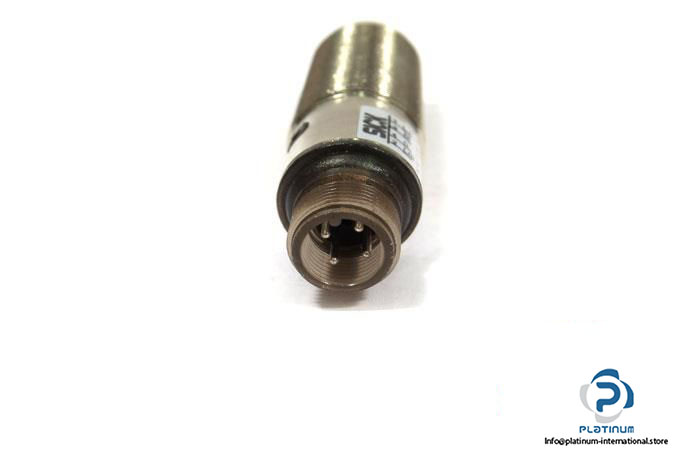

Connector type: M12 Connector, 4-pin
Protection class: III
Enclosure rating: IP67
Ambient Operating temperature: -25 … 70°C

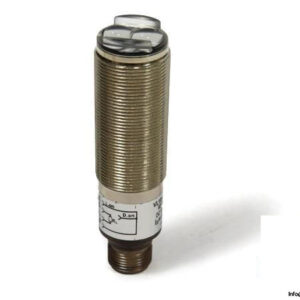

Diameter, Housing length: 18, 78 mm
Housing: Threaded type
Housing material: Nickel-plated Brass
Optics material: PMMA

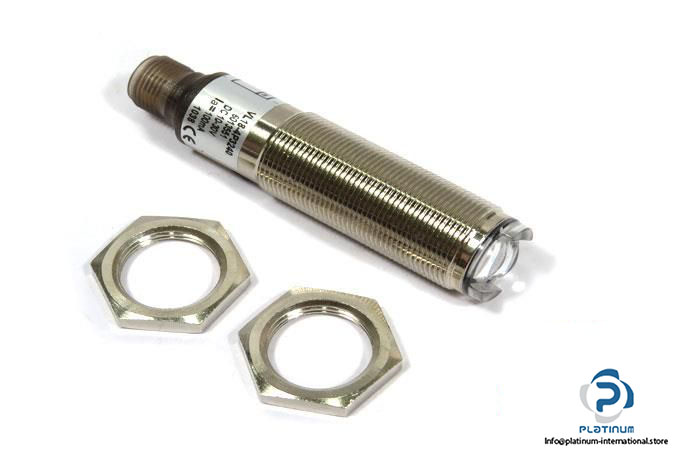

Supplied Accessories: 2 lock nuts
