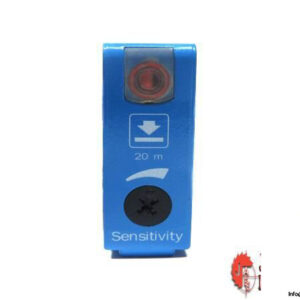

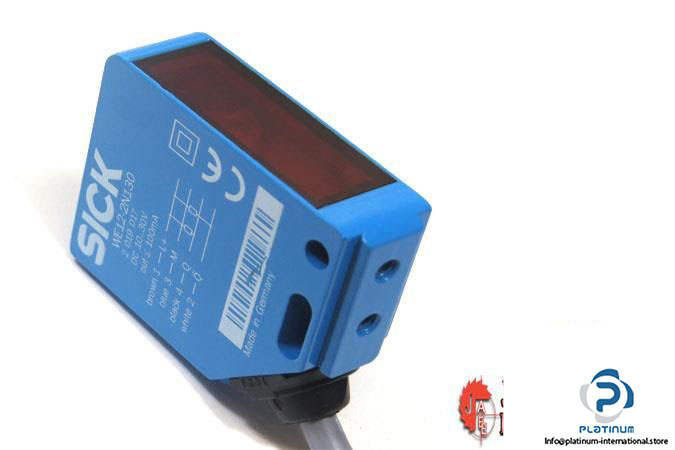

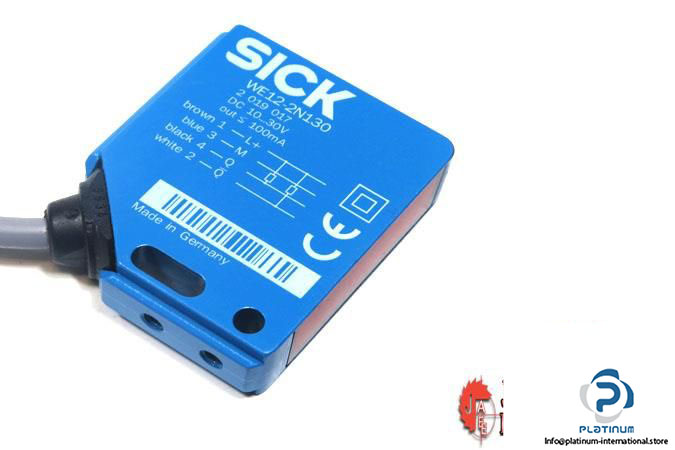

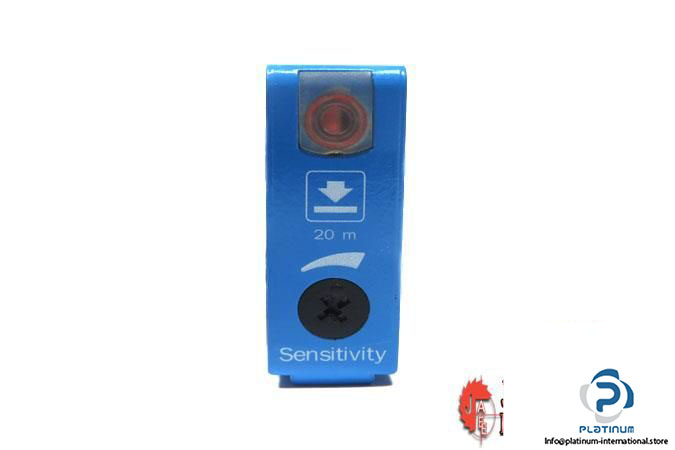

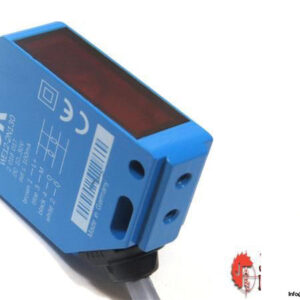

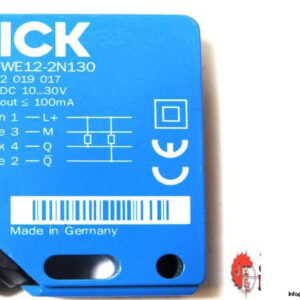

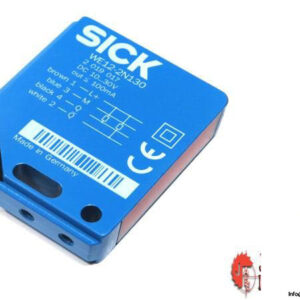

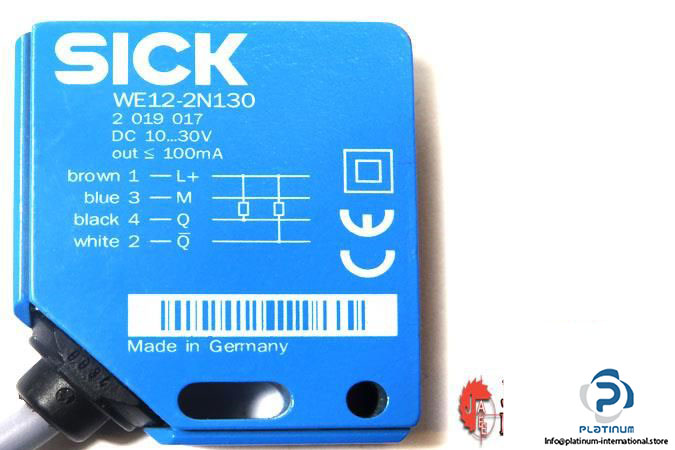

Manufacturer: SICK

Type: THROUGH-BEAM PHOTOELECTRIC SENSOR-RECEIVER

Model: WE12-2N130

Part No.: 2019017

Configured with: WS12-2D130

Supply voltage: 10 … 30 V DC

Power consumption: ≤ 30 mA

Ripple: ≤ 5 V_pp

Switching output: NPN

Switching mode: Light/dark switching

Sensing range max.: 0 … 20 m

Sensing range: 0 … 15 m

Response time (with resistive load): ≤ 330 µs

Adjustment: Potentiometer

Light source, type: LED, Visible red light

Housing material: Metal, Zinc diecast

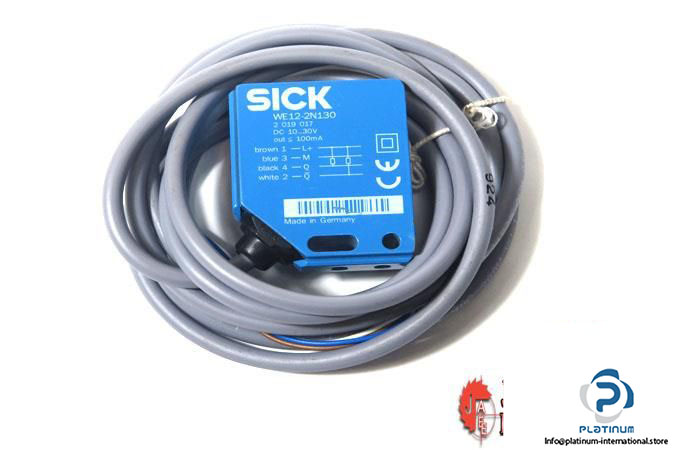

Connection type, length: Cable, 2 m, 4-Wire

Dimensions (W X H X D): 15 X 49 X 41.5 mm

Ambient operating temperature: -40… +60 °C

Enclosure rating: IP67

Weight: 0.14 kg
