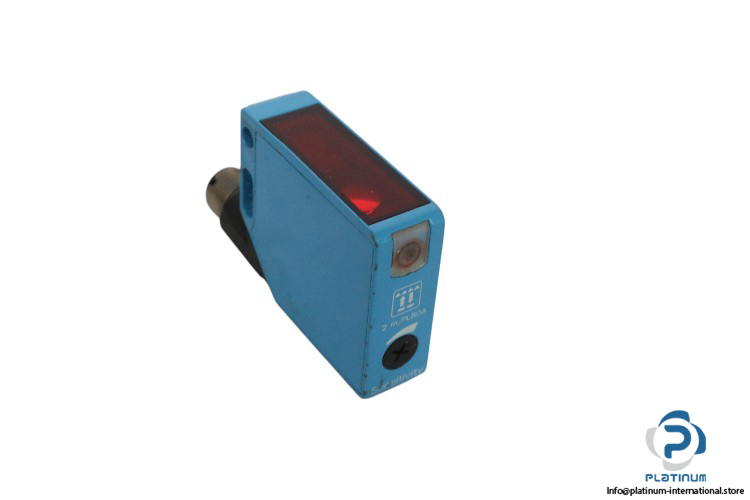

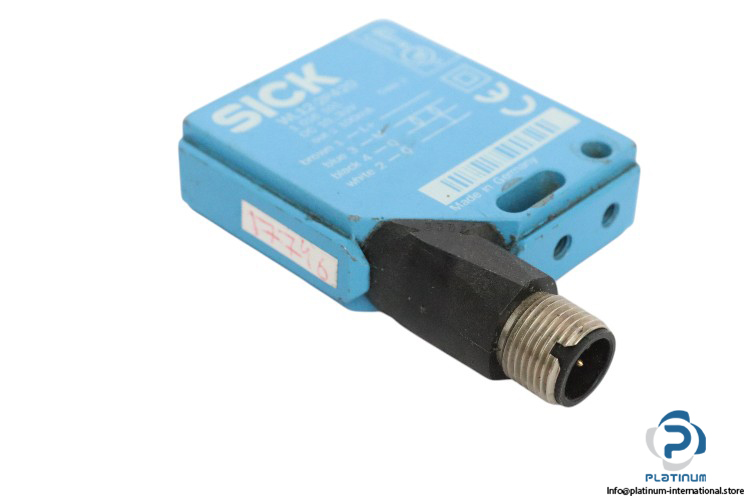

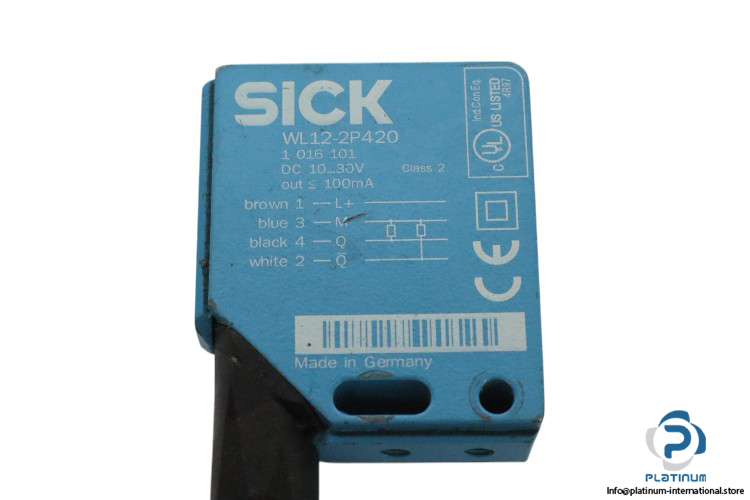

SICK WL12-2P420 Small Photoelectric Sensor

The SICK WL12-2P420 Small Photoelectric Sensor is a compact and reliable sensor designed for industrial and automation applications. With a wide sensing range and high protection rating, it ensures precise detection and optimal performance in harsh environments.

• Manufacturer: SICK
• Type: Small Photoelectric Sensor
• Model: WL12-2P420
• Part No.: 1016101

Technical Specifications:

• Supply Voltage: 10 … 30 V DC
• Current Consumption: 30 mA
• Switching Output: PNP
• Switching Mode: Light/dark switching
• Connection Type: Male connector M12, 4-pin
• Adjustment: Potentiometer
• Housing Design (Light Emission): Rectangular
• Sensing Range: 0 m … 1 m
• Housing Material: Metal, zinc diecast
• Enclosure Rating: IP67
• Dimensions (W x H x D): 15 mm x 49 mm x 41.5 mm
• Ambient Temperature: -40 … +60 °C

The SICK WL12-2P420 sensor’s robust design and precise performance make it ideal for use in a wide range of industrial environments, providing accurate detection and ensuring reliable operation even in challenging conditions.
