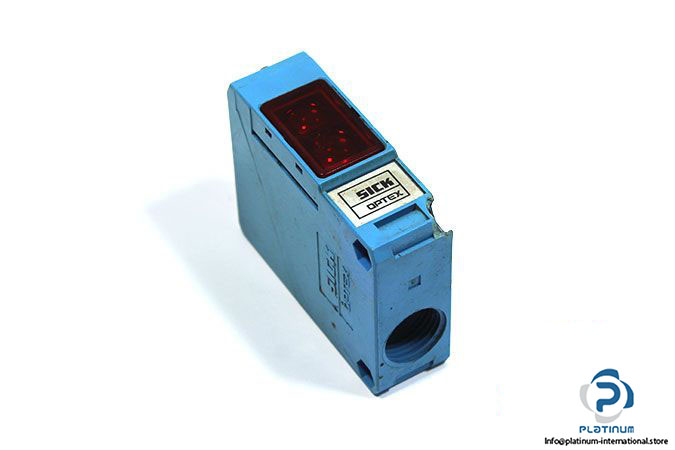

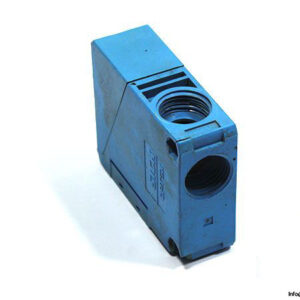

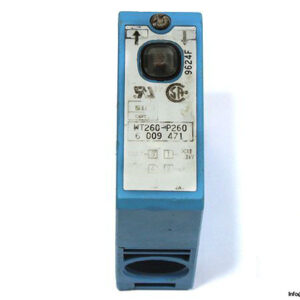

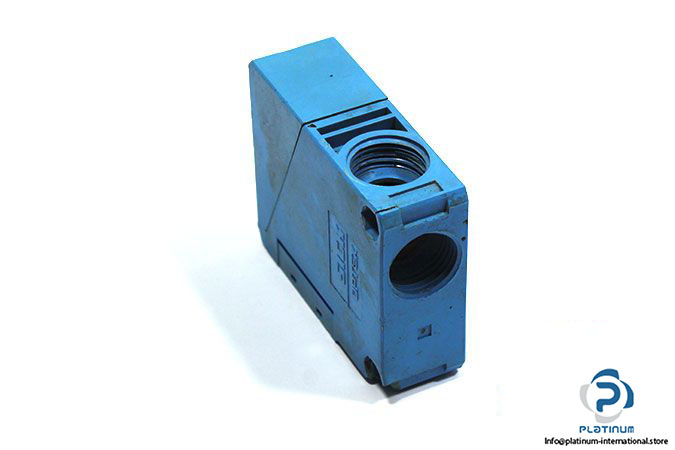

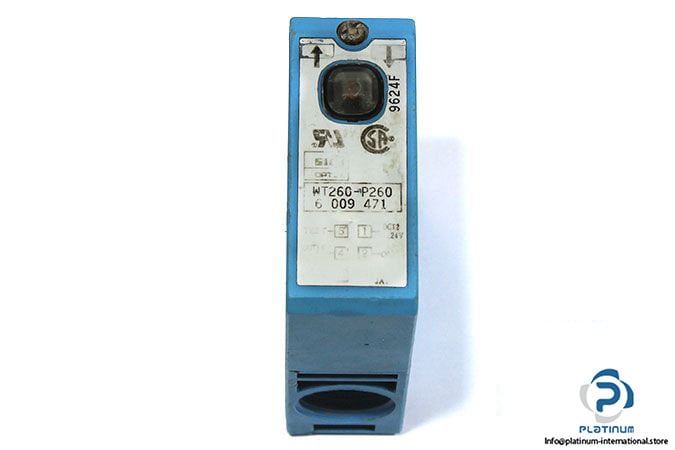

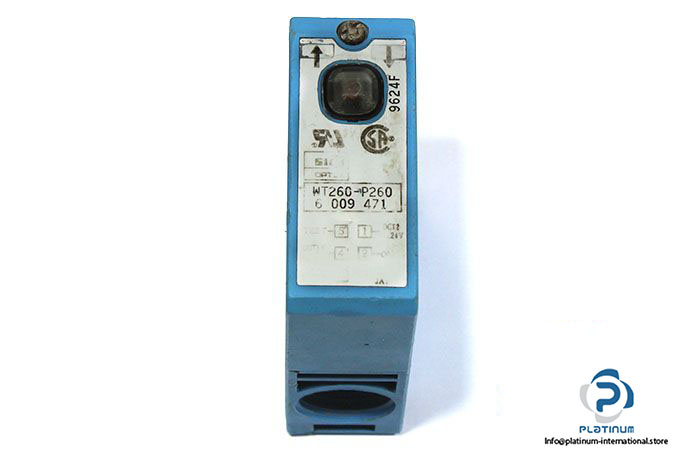

Manufacturer: SICK
Type: Photoelectric Proximity Sensor, Background Suppression
Model: WT260-P260
Part No.: 6009471
Sensing Range Sn: 0 … 380 mm
Supply Voltage: 10 … 30 V DC
Output Current Imax: 100 mA
Current Consumption: 35 mA
Switching Frequency: 250 Hz
Switching Output: PNP
Switching Mode: Light / Dark Switching
Focus: Approx. 1.5°
Housing Design: Rectangular
Connection Type: Cable Gland
Ambient Operating Temperature: -25 … 55 °C
Enclosure Rating: IP66
Dimensions (W x H x D): 25 x 77.8 x 63 mm
Adjustment: Potentiometer, 270°
Housing Material: Plastic, ABS
Optics Material: Plastic, PC
| Weight | 0,09 kg |
|---|---|
| Dimensions | 25 × 77,8 × 63 cm |
| Condition | |
| Part No. | |
| Model | |
| Shelf No. | |
| Manufacturer | |
| Type of Product | |
| Min. Voltage [DC] | |
| Max. Voltage [DC] | |
| Nominal Voltage [DC] | |
| Switch Output | |
| Switching Mode | |
| Material | |
| Max. Sensing Range [mm] |
