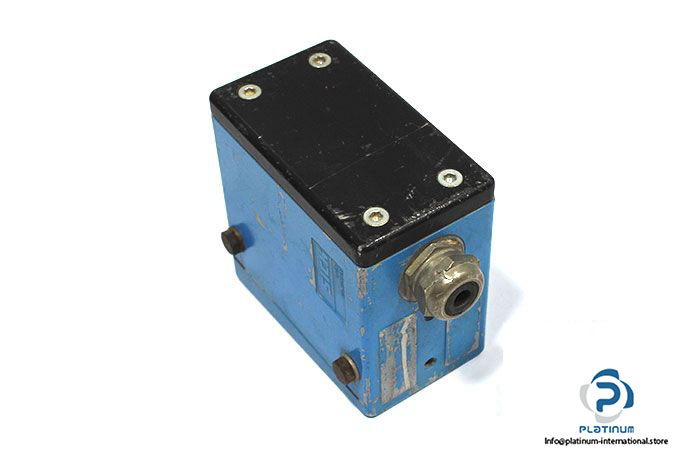

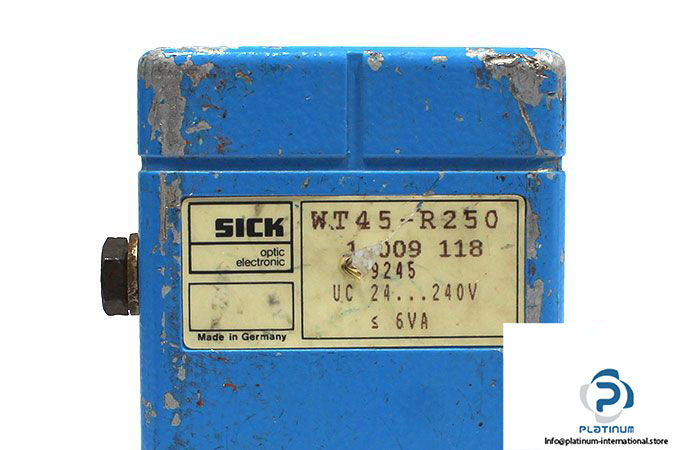

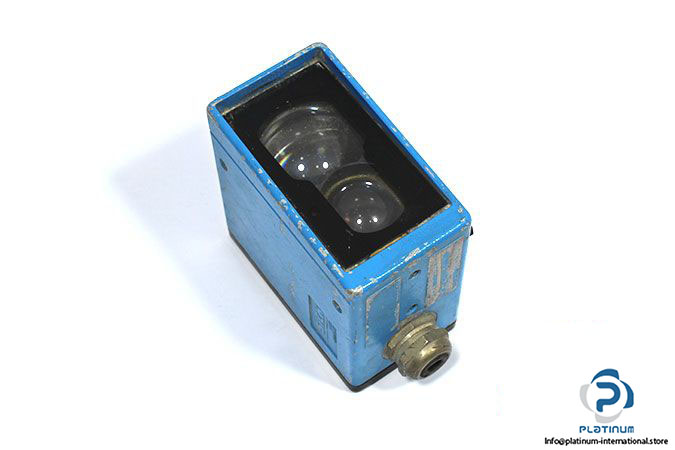

Manufacturer: SICK
Type: Photoelectric Proximity Sensor, Background Suppression
Model: WT45-R250
Part No.: 1009118
Sensing Range Sn: 200 … 2000 mm
Supply Voltage: 20 … 250 V AC/DC
Power Consumption: ≤ 6 VA
Switching Frequency: 10 Hz
Switching Output: Relay, Electrically Isolated
Switching Mode: Light / Dark Switching
Output Function: Change-Over Contacts
Time Functions: On delay / Off delay / ON and OFF delay
Housing Design: Rectangular
Connection Type: Terminal Connection with PG13,5, 6-Pin
Ambient Operating Temperature: -25 … 55 °C
Enclosure Rating: IP67
Dimensions (W x H x D): 60 x 105 x 105 mm
Adjustment: Potentiometer
Housing Material: Metal
| Weight | 0,76 kg |
|---|---|
| Dimensions | 60 × 105 × 105 cm |
| Condition | Used |
| Part No. | 1 009 118 |
| Model | WT45-R250 |
| Shelf No. | 220507 |
| Manufacturer | Sick |
| Type of Product | Photoelectric Proximity Sensor |
| Min. Sensing Range [mm] | 200 |
| Switching Mode | Light on / Dark on |
| No. of Pin | 6 |
| Adjustment | Potentiometer |
| Material | Metal |
| Max. Sensing Range [mm] | 2000 |
| Max. Voltage [AC/DC] | 250 |
| Min. Voltage [AC/DC] | 20 |
| Connection | 5 |
