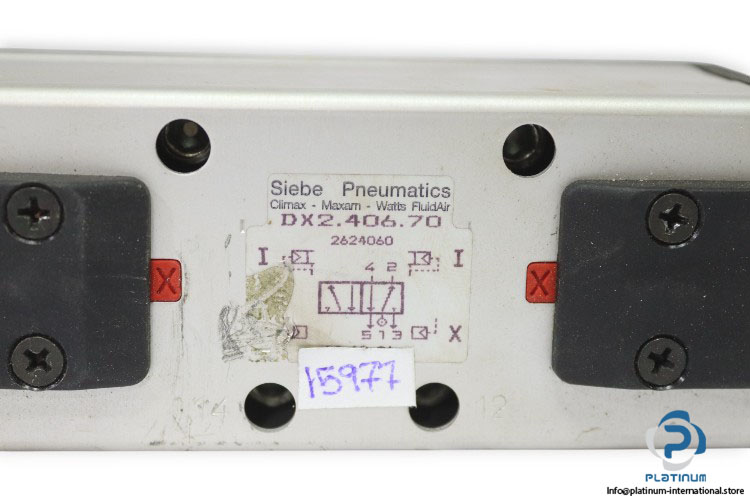

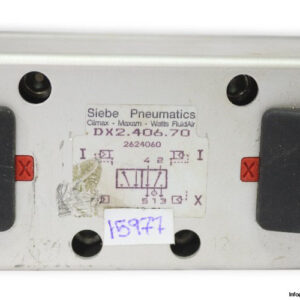

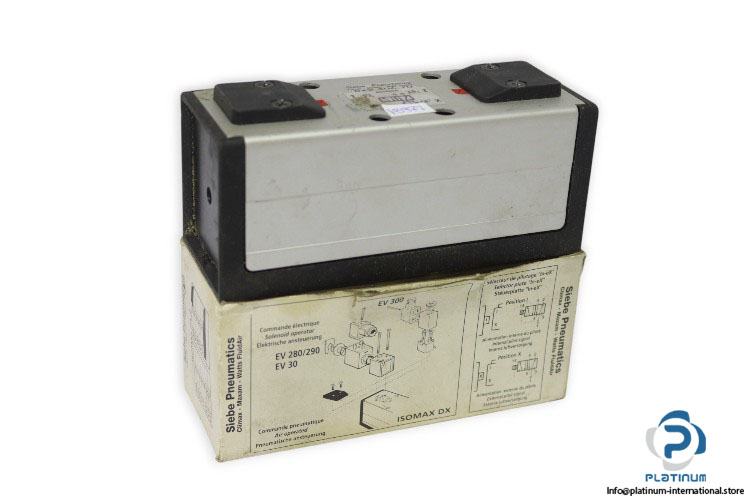

Siebe Pneumatics DX240670 Double Solenoid Valve
The Siebe Pneumatics DX240670 is a high-performance double solenoid valve from the ISOMAX DX2 series. Designed for industrial pneumatic systems, it ensures reliable operation, efficient airflow, and compatibility with EV 300, EV 280/290, and EV 30 series. With durable construction materials and wide operating parameters, this valve is built to perform under demanding conditions.
- Manufacturer: Siebe Pneumatics
- Type: Double Solenoid Valve
- Model: DX240670
- Part No.: 2624060
- Series: ISOMAX DX2
- Completable With: EV 300 / EV 280/290 / EV 30
Technical Information
- Size: 70 mm
- Function: 5/2 Way
- Media: Air
- Actuator: Electrical
- Operating Pressure: -0.9 to 12 bar
- Piloting Pressure: 2 to 12 bar
- Flow Rate: 4320 Nl/mn
- Material:
- Valve member “ seat: Self-lubricating acetal “ ceramic
- Body: Polyamide reinforced fiberglass
- Casing “ End plates: Anodized aluminum “ Painted zinc plated steel
- Valve plate: Zamak
- Seals: Nitrile
- Springs: Stainless steel
- Screws: Zinc plated steel
- Function selector Top cover “ Seal: Polyamide reinforced fiberglass “ Polyester
- Working Temperatures: -10 to +60 °C
- Connection: Sub-based
