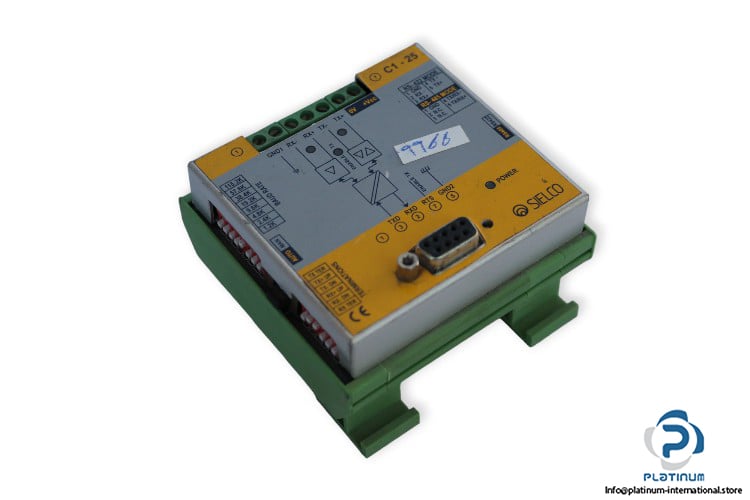

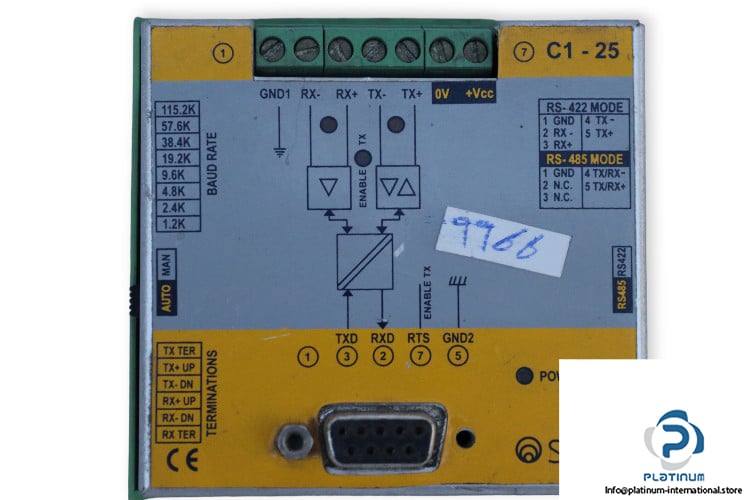

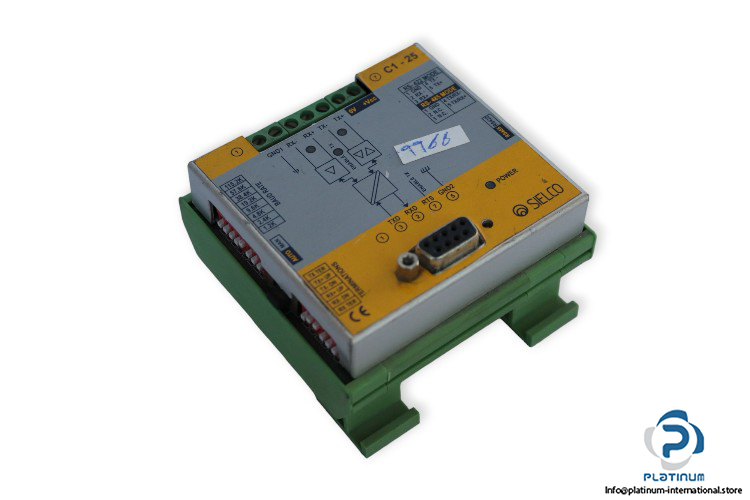

Sielco C1-25 Power Converter

The Sielco C1-25 Power Converter is a compact and efficient industrial-grade converter designed for reliable power and communication signal management. With wide voltage compatibility, optical isolation, and advanced protection features, it ensures stable operation in automation and control systems. Its low-profile DIN rail design allows easy integration into control panels and enclosures.

Manufacturer: Sielco
Type: Power Converter
Model: C1-25

Technical Information

• Power Supply: 10 / 36 V DC
• Current Consumption: 60 mA @ 24 VDC
• Power Protection: Against Polarity Reversal
• Operating Temperature: 0 / 70°C
• Protection Degree: IP20
• Triple Optical Isolation: Power “ RS232 “ RS485/422
• Communication Speed: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 baud
• Mounting: DIN Rail, Low Profile Footprint
• Line Protection (RS485/422): Against Electrostatic Discharges, Short Circuits, Overvoltages
• Dimensions: 80 × 80 × 50 mm
