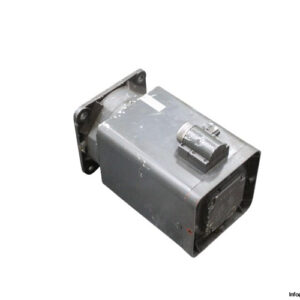

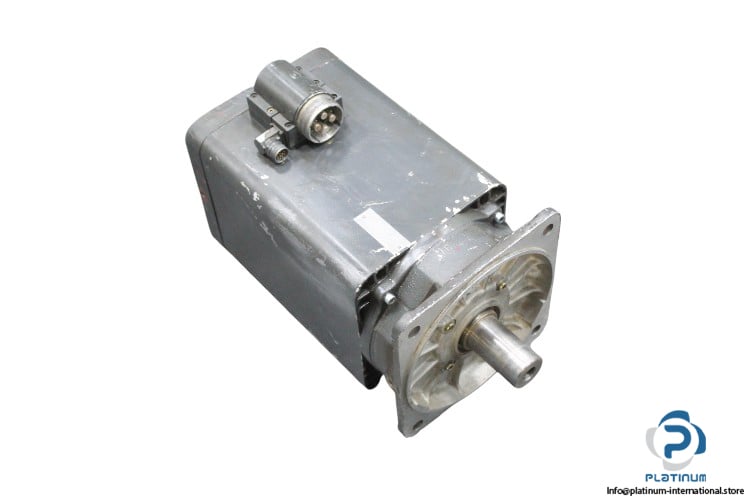

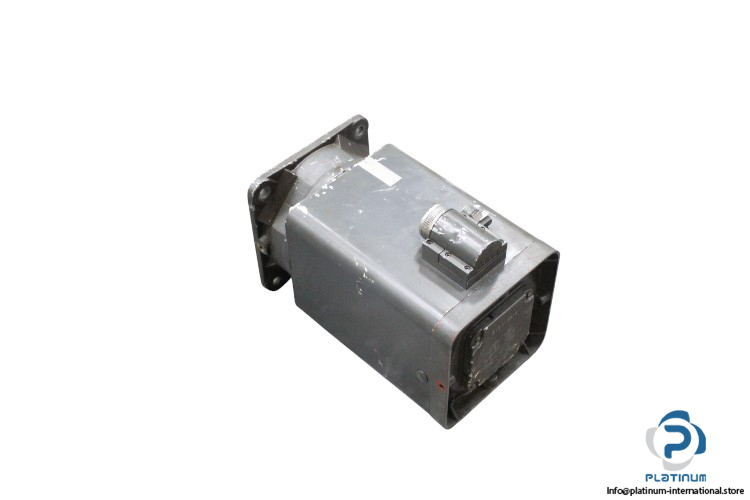

Siemens 1FT5132-0AF71-1-Z Servo Motor

The Siemens 1FT5132-0AF71-1-Z is a high-performance servo motor built for demanding industrial motion control applications. With a robust design and advanced technical features like high stall torque and IP64 protection, it ensures precision, reliability, and durability in continuous-duty operations.

Manufacturer: Siemens

Type: Servo Motor

Model: 1FT5132-0AF71-1-Z

Part No.: EH164492801001VDE0530

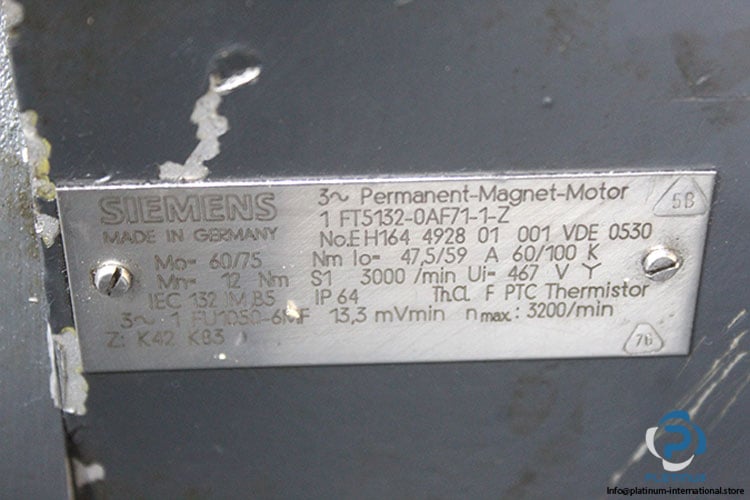

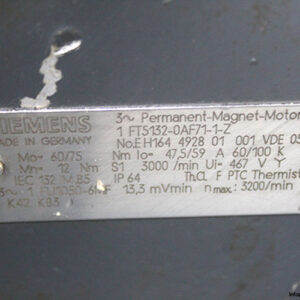

Technical Information:

• Power Supply: 3 Phase AC
• Frame Size: 13
• Length: 2
• Cooling Type: A, Non“ventilated
• Rated Voltage: 467 V (Star)
• Rated Torque: 12 Nm
• Stall Torque: 60/75 Nm
• Stall Current: 47.5/59 A
• Rated Speed: 3000 rpm
• Maximum Speed: 3200 rpm
• Voltage Constant: 13.3 mVmin
• Resistor: 60/100 K
• Mounting Position: B5
• Standard: IEC 132
• Duty: S1 (Continuous Duty)
• Protection Class: IP 64
• Thermistor Sensor: PTC
• Thermal Class: F
