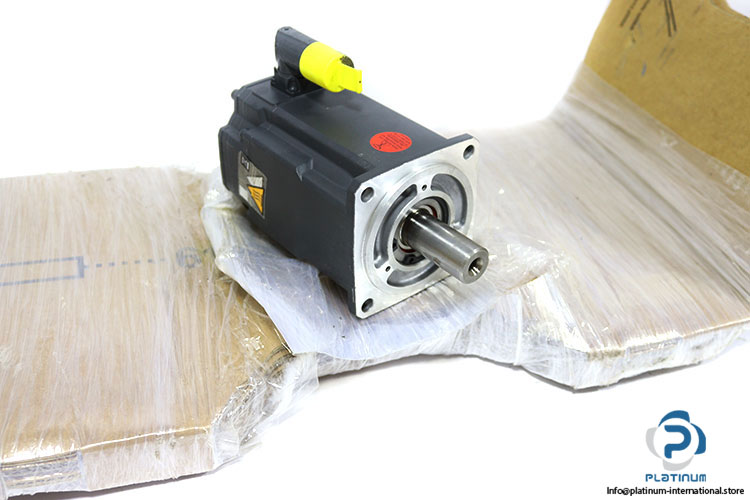

SIEMENS 1FK2104-5AK00-0MA0 THREE-PHASE SERVOMOTOR

The Siemens 1FK2104-5AK00-0MA0 is a high-dynamic three-phase servomotor engineered for precise control and powerful performance in automation systems. With exceptional torque characteristics and a wide speed range, it is ideal for demanding motion control applications across various industrial environments.

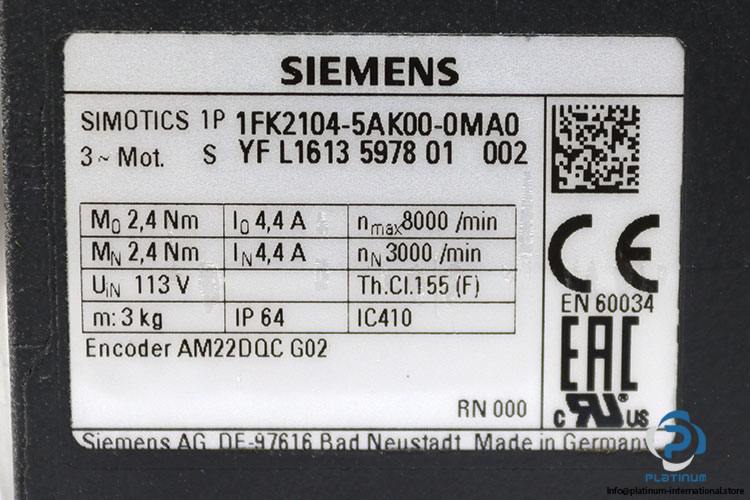

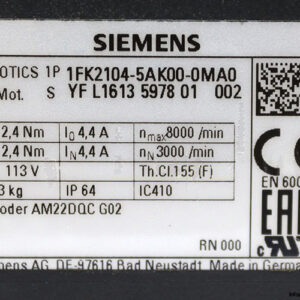

Manufacturer: Siemens
Type: Three-phase Servomotor
Model: 1FK2104-5AK00-0MA0
NO.YF: L1613 5978 01 002

Technical Information

• Shaft Height: 40
• Motor Type: High Dynamic
• Rated Speed: 3000 min^-1
• Rated Torque: 2.4 Nm
• Rated Voltage: 113 V
• Rated Current: 4.4 A
• Stall Current: 4.4 A
• Max. Speed: 8000 min^-1
• Max. Torque: 7.6 Nm
• Max. Current: 16 A
• Thermal Time Constant: 35 min
• Moment of Inertia: 0.56 kg·cm²
• Stall Torque: 2.4 Nm
• Thermal Class: F
• Protection Class: IP64
• Encoder: AM22DQC G02 (absolute encoder 22-bit + 12-bit multiturn)
