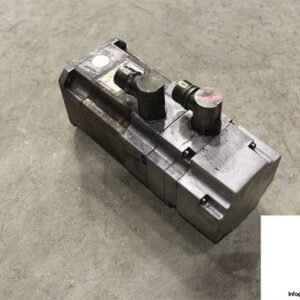

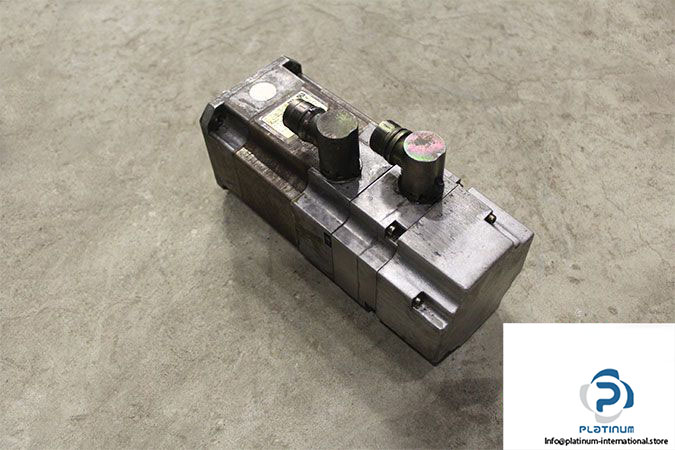

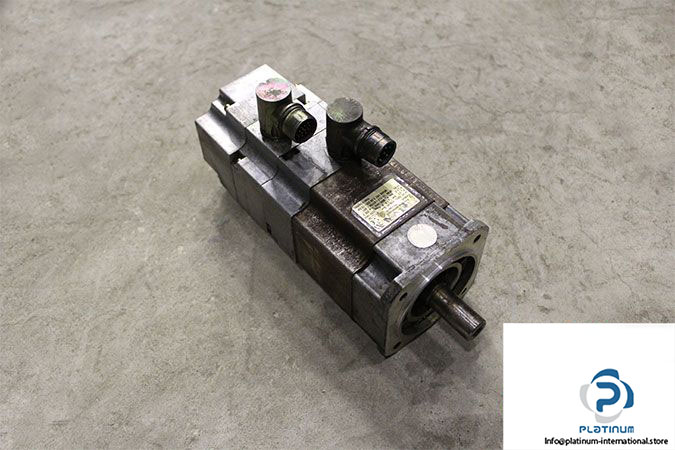

SIEMENS 1FK6042-6AF71-1AH0 BRUSHLESS SERVO MOTOR

This Siemens 1FK6 series brushless servo motor is engineered for continuous-duty industrial applications, offering high torque performance and superior control accuracy. Designed for reliable, maintenance-free operation under demanding conditions.

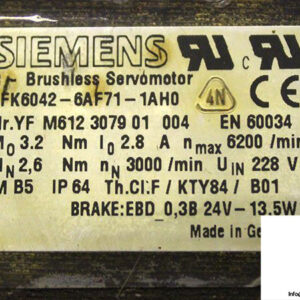

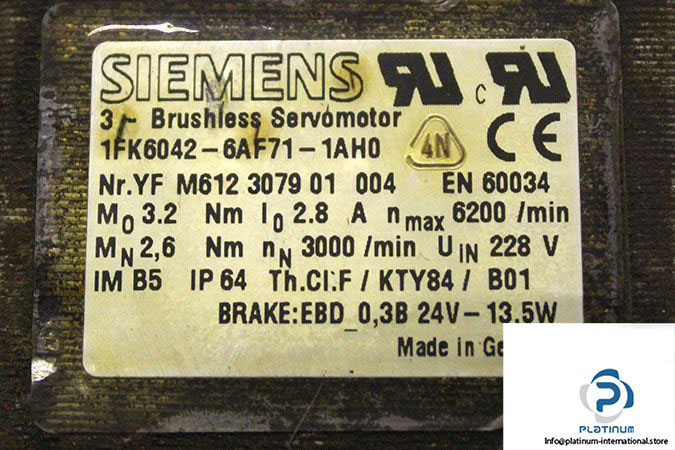

Manufacturer: Siemens
Type: Brushless Servo Motor
Model: 1FK6042-6AF71-1AH0
Nr.yf: M612 3079 01 004

Technical Specifications

• Series: 6
• Frame Size: 04
• Length: 2
• Rated Voltage: 228 V
• Rated Torque: 2.6 Nm
• Rated Speed: 3000 rpm
• Max. Speed: 6200 rpm
• Standstill Current: 2.8 A
• Standstill Torque: 3.2 Nm
• Encoder System: Incremental Encoder
• Shaft End: Without Keyway
• Duty: S1 Continuous
• Brake Voltage: 24 VDC
• Brake Power: 13.5 W
• Number of Poles: 6
• Mounting Position: IM B5
• Protection Class: IP64
• Thermal Class: F / KTY84 / B01
