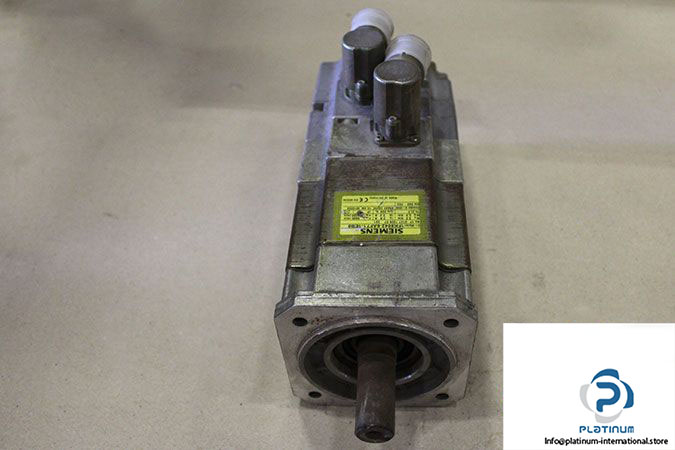

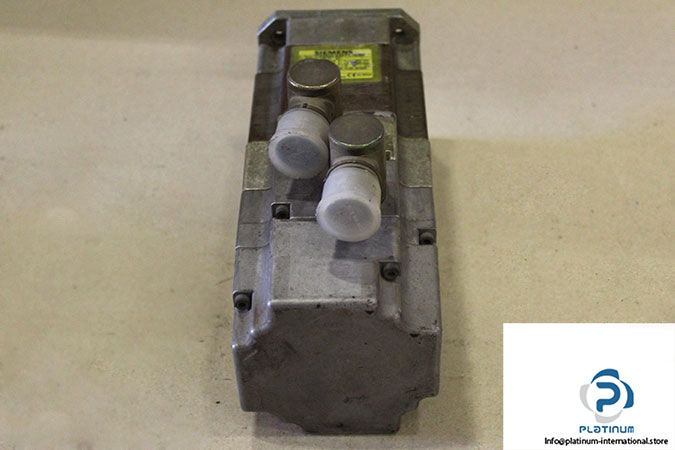

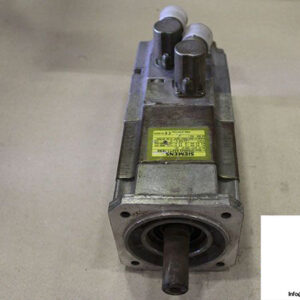

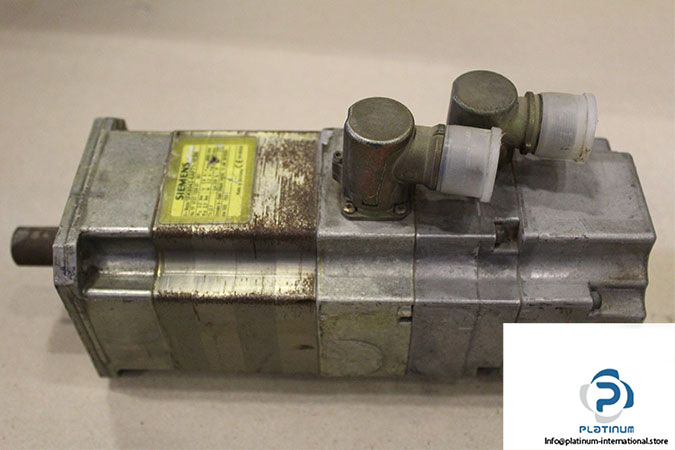

SIEMENS 1FK6 042-6AF71-1EB0 SERVO MOTOR

The Siemens 1FK6 042-6AF71-1EB0 is a high-performance servo motor engineered for precision motion control and reliable operation in demanding industrial applications. With excellent speed capabilities, robust torque delivery, and durable protection features, this motor is ideal for automation, robotics, and CNC systems.

Manufacturer: Siemens
Type: Servo Motor
Product ID: 1FK6 042-6AF71-1EB0
Nr. YF: S127 1328 07 001

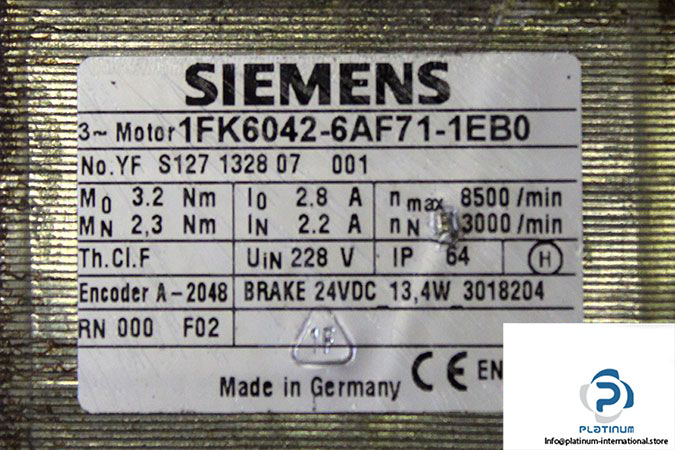

Technical Information

• Rated Voltage: 228 V
• Rated Current: 2.2 A
• Stall Current: 2.8 A
• Rated Speed: 3000 min^-1
• Max. Speed: 8500 min^-1
• Rated Torque: 2.3 Nm
• Stall Torque: 3.2 Nm
• Voltage Brake: 24 V
• Brake Model: 3018204
• Power Brake: 13.4 W
• Encoder Model: A-2048
• Thermal Class: F
• Protection Class: IP64
