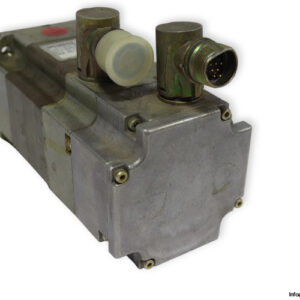

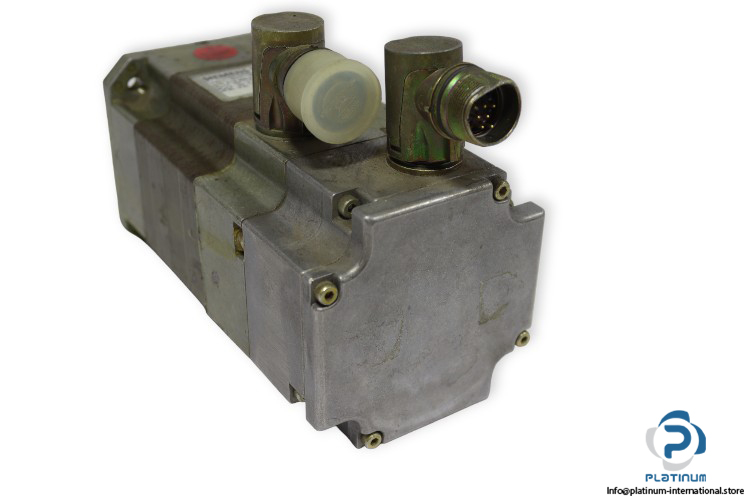

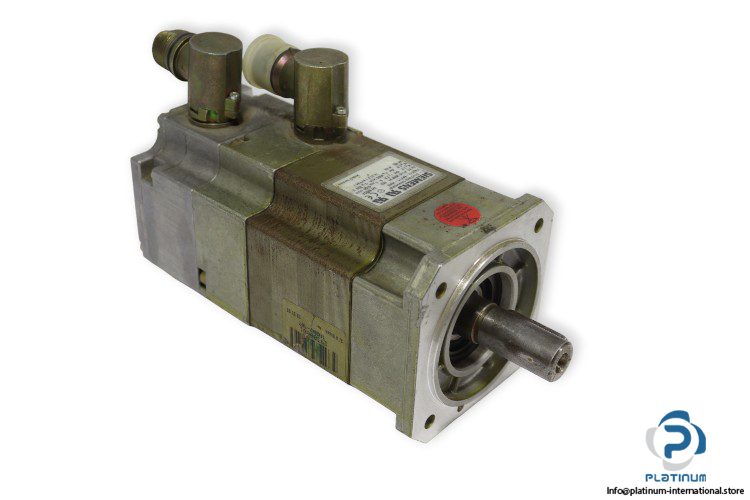

SIEMENS 1FK6042-6AF71-1SA0 BRUSHLESS SERVO MOTOR

The Siemens 1FK6042-6AF71-1SA0 is a high-performance brushless servo motor engineered for dynamic industrial applications. Featuring compact design, high torque output, and resolver-based feedback, it delivers precision and reliability across automation systems.

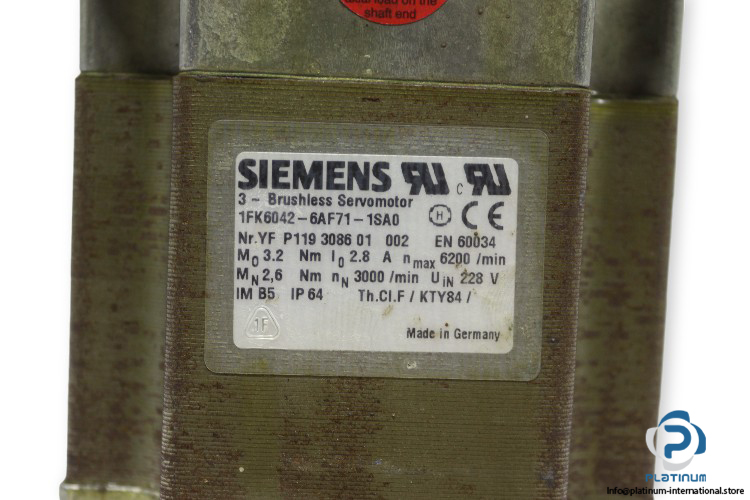

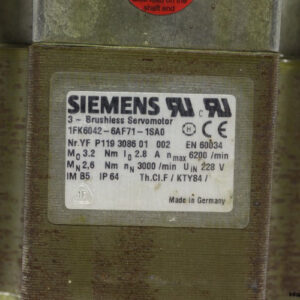

Manufacturer: SIEMENS
Type: Brushless Servo Motors
Model: 1FK6042-6AF71-1SA0
NR.YF: P119 3086 01 002

Technical Information

• Series: 6
• Frame Size: 04
• Length: 2
• Pole Number: 6
• Rated Voltage: 228 V
• Rated Torque: 2.6 Nm
• Static Torque: 3.2 Nm
• Stall Current: 2.8 A
• Rated Speed: 3000 rpm
• Max. Speed: 6200 rpm
• Mounting Position: IMB5
• Protection Class: IP64
• Thermal Class: F
• Encoder System: Resolver multi“pole
• Thermal Motor Protection: KTY84 temperature sensor in the stator winding
• Shaft End: with keyway, radial eccentricity tolerance N, without holding brake
