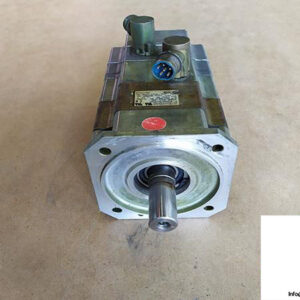

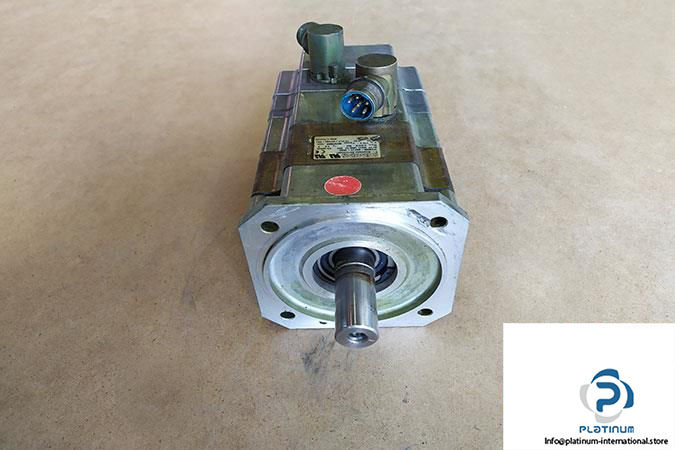

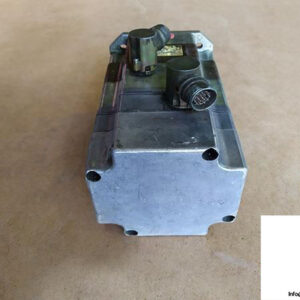

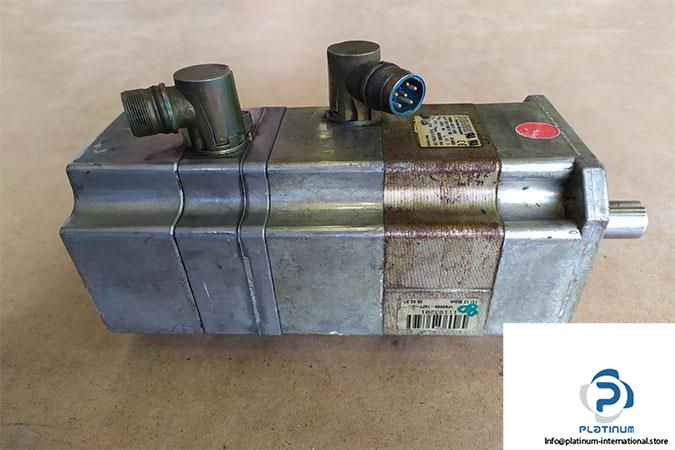

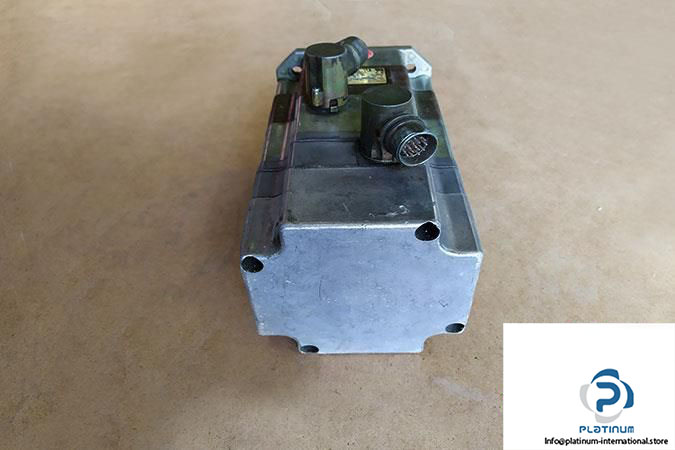

SIEMENS 1FK6060-6AF71-1EG0 BRUSHLESS SERVO MOTOR
Engineered for high-performance and precise motion control, the Siemens 1FK6060-6AF71-1EG0 Brushless Servo Motor is ideal for demanding industrial automation applications. With a compact design and high torque output, it ensures reliable and efficient operation under dynamic conditions.

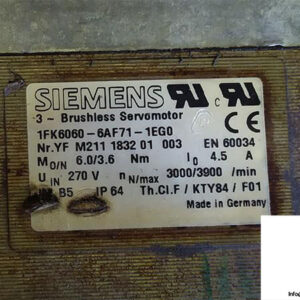

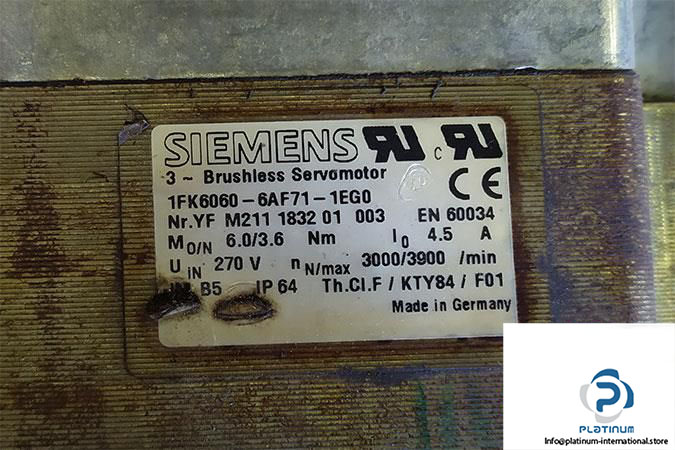

Manufacturer: SIEMENS
Type: Brushless Servo Motor
MRN: 1FK6060-6AF71-1EG0
NR Yf: M211 1832 01 003
Technical Information
- Inverter Compatibility: 6ES71016-0TP50
- Rated Voltage: 270 V
- Torque: 3.6 Nm rated, 6 Nm stall
- Speed: 3000 rpm rated, 3900 rpm max
- Current: 4.5 A stall
- Thermal Class: F
- Standard: EN 60034
- Protection: IP64
