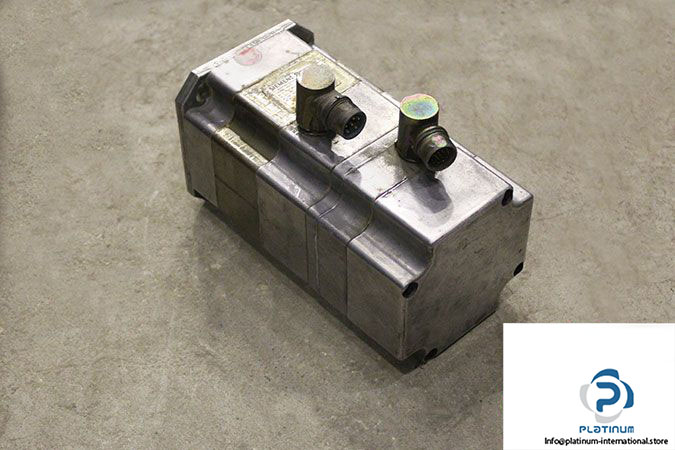

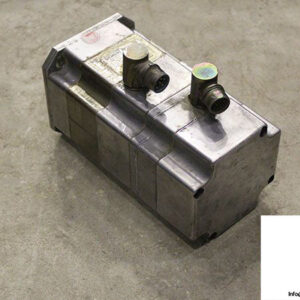

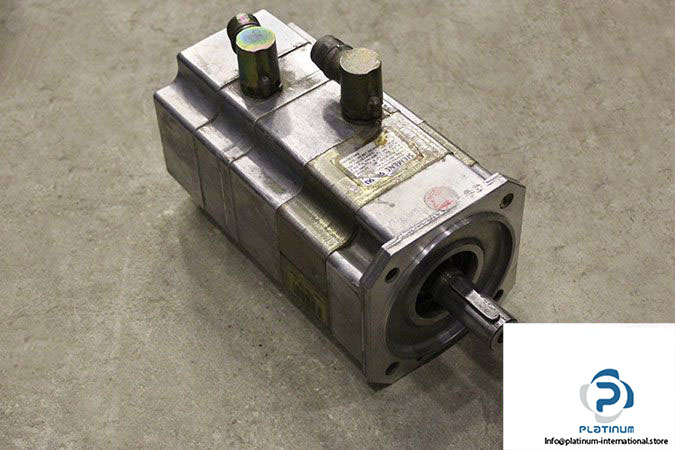

SIEMENS 1FK6 060-6AF71-1GB0 BRUSHLESS SERVO MOTOR

The Siemens 1FK6 060-6AF71-1GB0 is a high-performance brushless servo motor engineered for dynamic and precise motion control. Ideal for industrial automation, this motor delivers excellent torque density, fast acceleration, and superior thermal handling.

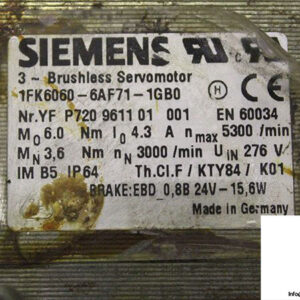

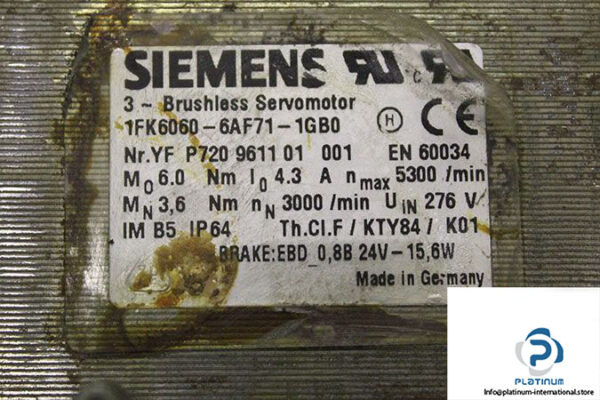

Manufacturer: Siemens
Type: Brushless Servo Motor
Model: 1FK6 060-6AF71-1GB0
Part No.: P720 9611 01 001
Standard: EN 60034
Series: 6

Technical Information

• Frame Size: 06
• Rated Voltage: 276 V
• Rated Torque: 3.6 Nm
• Static Torque: 6.0 Nm
• Stall Current: 4.3 A
• Rated Speed: 3000 rpm
• Max. Speed: 5300 rpm
• Brake Voltage: 24 VDC
• Brake Power: 15.6 W
• Brake Model: EBD 0.8B
• Mounting Position [IM]: B5
• Protection Class: IP64
• Thermal Class: F
