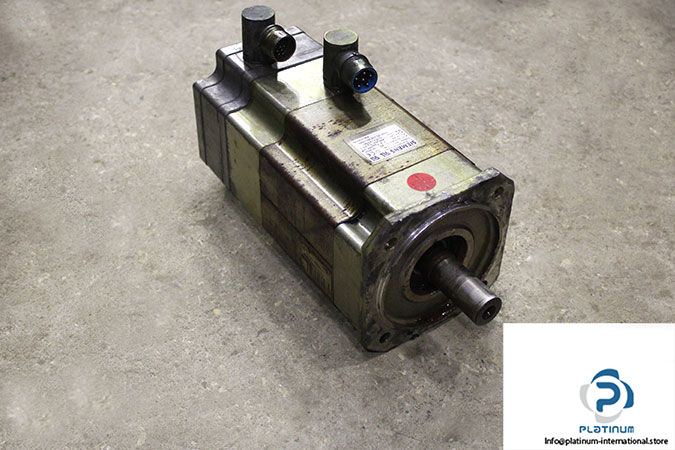

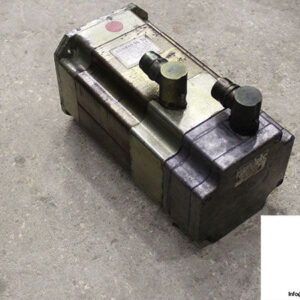

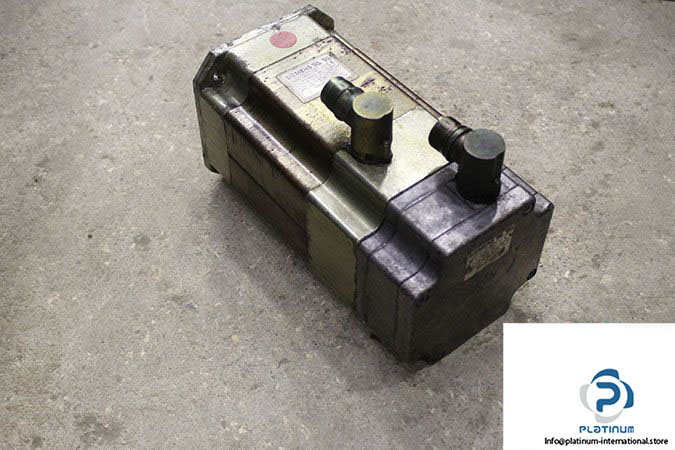

SIEMENS 1FK6 063-6AF71-1TB0 BRUSHLESS SERVO MOTOR

This Siemens 1FK6 series brushless servo motor delivers high precision, performance, and durability for demanding motion control systems. Designed with compact power and advanced braking capabilities, it’s ideal for industrial automation and high-torque applications.

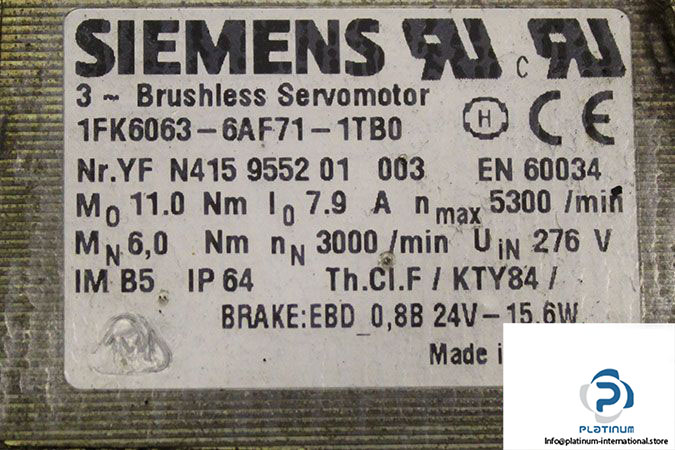

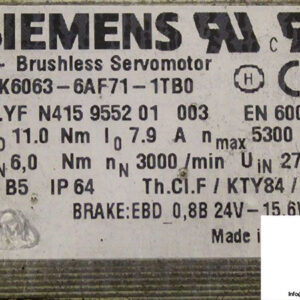

Manufacturer: Siemens
Type: Brushless Servo Motor
Model: 1FK6 063-6AF71-1TB0
Part No.: N415 9552 01 003
Standard: EN 60034

Technical Information

• Rated Voltage: 276 V
• Stall Current: 7.9 A
• Rated Speed: 3000 min»¹
• Maximum Speed: 5300 min»¹
• Rated Torque: 6.0 Nm
• Stall Torque: 11.0 Nm
• Brake Voltage: 24 VDC
• Brake Power: 15.6 W
• Brake Model: EBD 0.8B
• Mounting Position [IM]: B5
• Protection Class [IP]: 64
• Thermal Class: F
