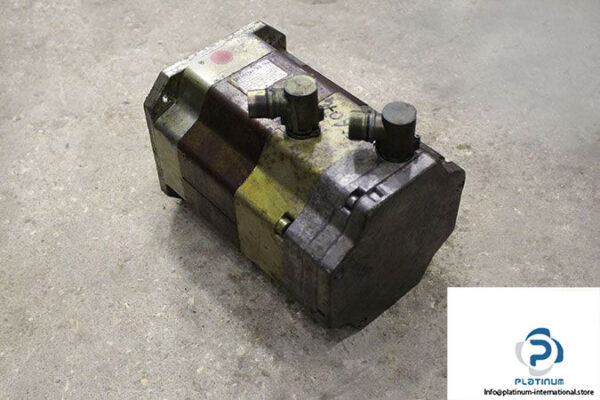

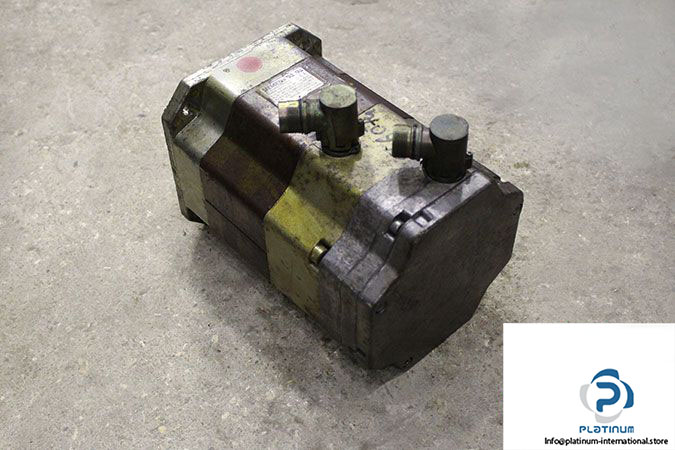

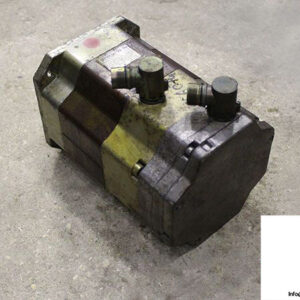

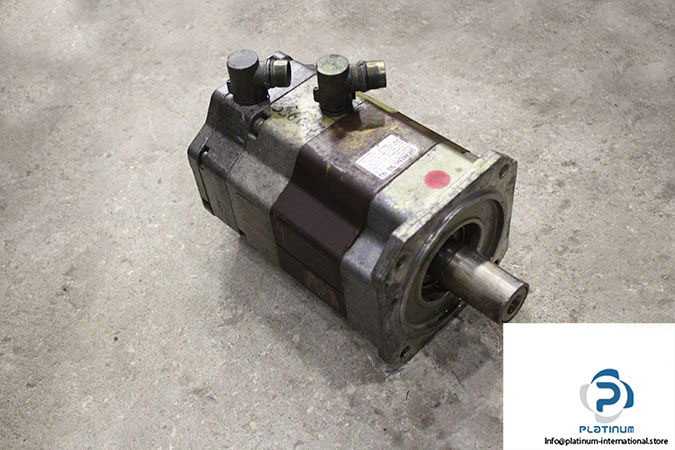

SIEMENS 1FK6 083-6AF71-1TB0 BRUSHLESS SERVO MOTOR

The Siemens 1FK6 083-6AF71-1TB0 is a high-efficiency brushless servo motor engineered for demanding industrial automation systems. Designed according to EN 60034 standards, it offers exceptional control, speed, and torque for precision machinery and robotics. With its IP64 protection and thermal class F rating, this motor ensures durability and performance in harsh environments.

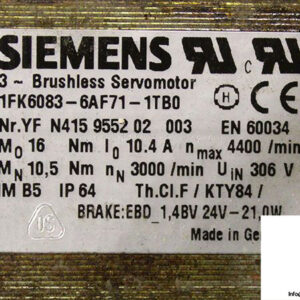

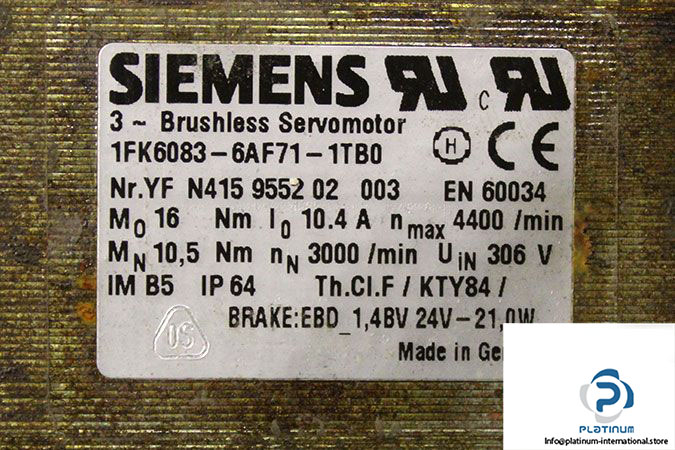

Manufacturer: Siemens
Type: Brushless Servo Motor
Model: 1FK6 083-6AF71-1TB0
Part No.: N415 9552 02 003
Standard: EN 60034

Technical Information

• Rated Voltage: 306 V
• Stall Current: 10.4 A
• Rated Speed: 3000 min»¹
• Max. Speed: 4400 min»¹
• Rated Torque: 10.5 Nm
• Stall Torque: 16.0 Nm
• Brake Voltage: 24 VDC
• Brake Power: 21.0 W
• Brake Model: EBD 1.4BV
• Mounting Position: B5
• Protection Class: IP64
• Thermal Class: F
