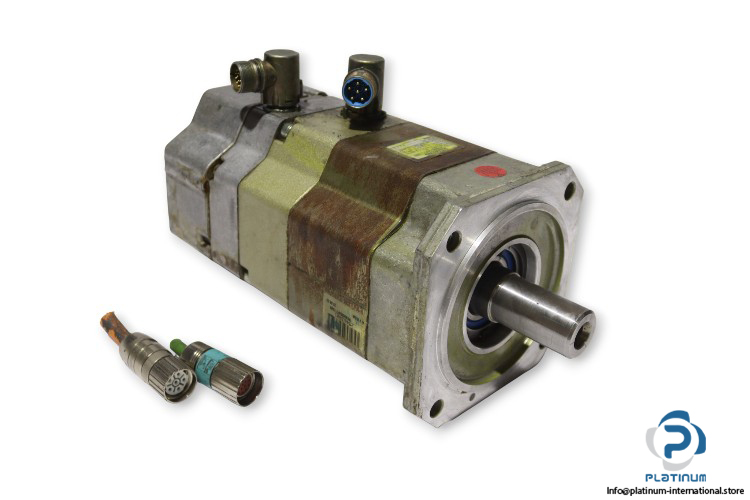

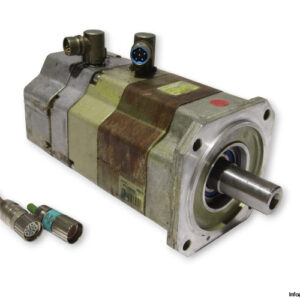

Siemens 1FK6 083-6AF71-1AB0 3-Phase AC Synchronous Servomotor

The Siemens 1FK6 083-6AF71-1AB0 servomotor is part of the advanced SINAMICS drive family, designed to deliver outstanding precision, high torque, and efficient motion control in industrial automation systems. Built with reliability and performance in mind, this motor ensures smooth operation, long service life, and reduced maintenance downtime.

Manufacturer: Siemens
Type: 3-Phase AC Synchronous Servomotor
MNR: 1FK6 083-6AF71-1AB0
Drive Family: SINAMICS
Series: 1FK6
No. YF.: R925 4638 01 004
Brake Part No.: 2000703
Marking Code: RN: 000 C01

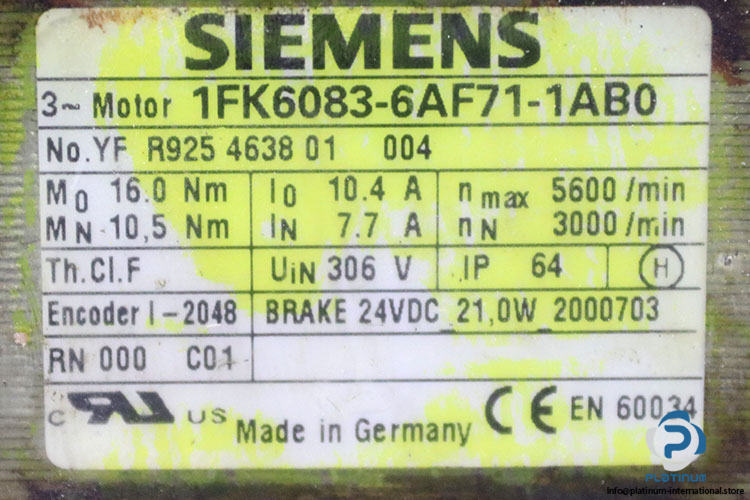

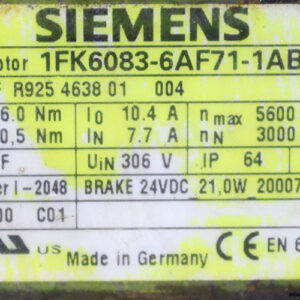

Technical Information

• Rated Torque (M‚): 16.0 Nm
• Nominal Torque (M‚™): 10.5 Nm
• Rated Current (I‚): 10.4 A
• Nominal Current (I‚™): 7.7 A
• Rated Voltage (U‚™): 306 V
• Nominal Speed (n‚™): 3000 rpm
• Maximum Speed (n‚˜‚‚“): 5600 rpm
• Insulation Class: Thermal Class F
• Protection Class: IP64
• Brake Voltage: 24 VDC
• Brake Power: 21.0 W
• Encoder Type: I-2048 Incremental Encoder (2048 rpm)
• Cooling Method: Natural convection (surface cooled)
• Mounting Type: Flange mounting
• Compliance: EN 60034 Standard

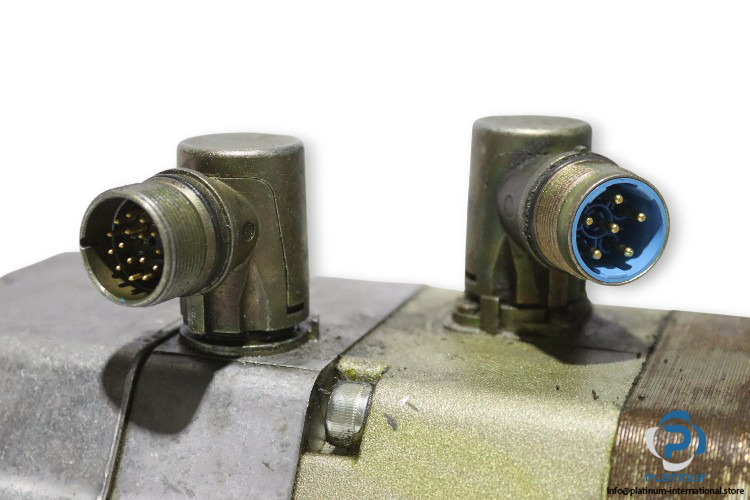

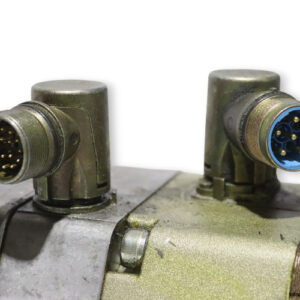

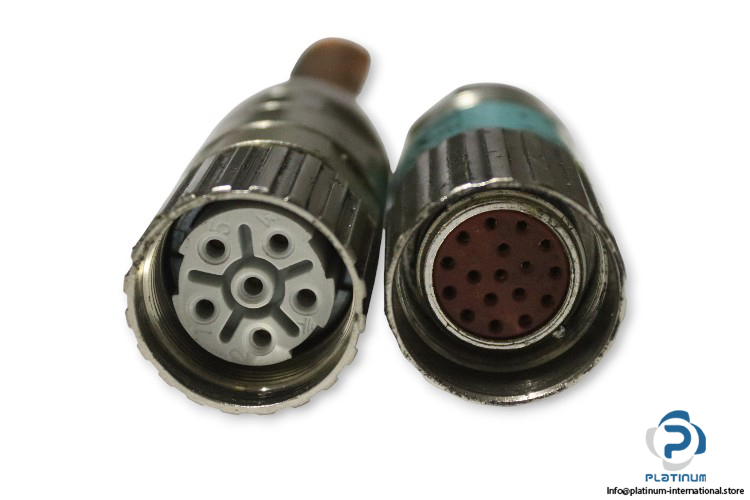

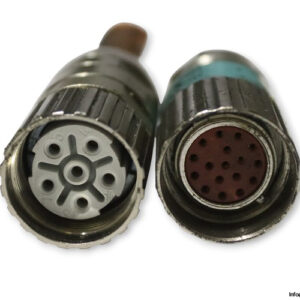

• Connector Type: Circular multi-pin connectors for power and feedback

This high-performance Siemens servomotor provides exceptional control accuracy and dynamic response, making it ideal for robotics, CNC machinery, and automated production lines. The motor™s durable construction, IP64 protection, and Class F insulation ensure dependable operation even in demanding environments. With its integrated brake and precise encoder feedback, it guarantees superior positioning, energy efficiency, and reliability for continuous industrial use.
