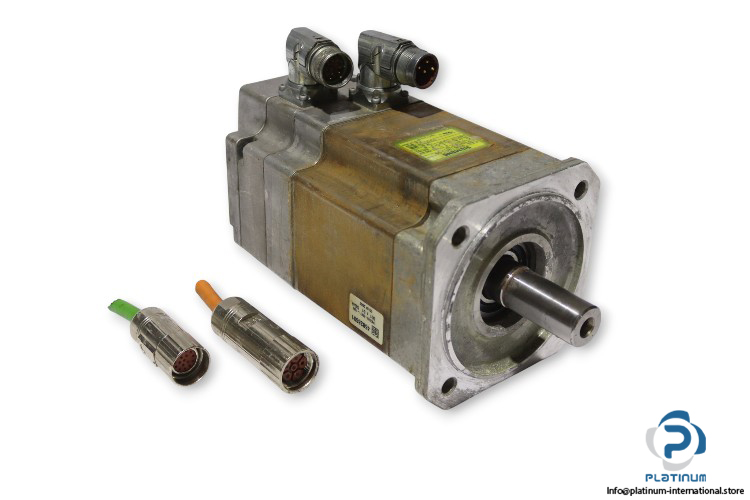

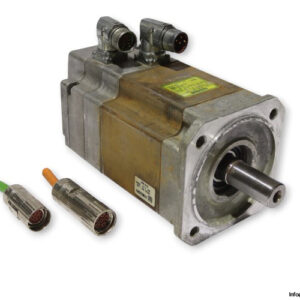

Siemens 1FK7063-5AF71-1GA0 Synchronous Servomotor

The Siemens 1FK7063-5AF71-1GA0 is a high-performance 3-phase synchronous servomotor engineered for precision, efficiency, and reliability in demanding industrial automation systems. Designed for seamless integration with the SINAMICS S120 drive family, this motor ensures exceptional control accuracy, fast dynamic response, and energy-efficient operation. Its robust design and high-speed capability make it ideal for applications such as robotics, packaging machinery, CNC systems, and automated production lines.

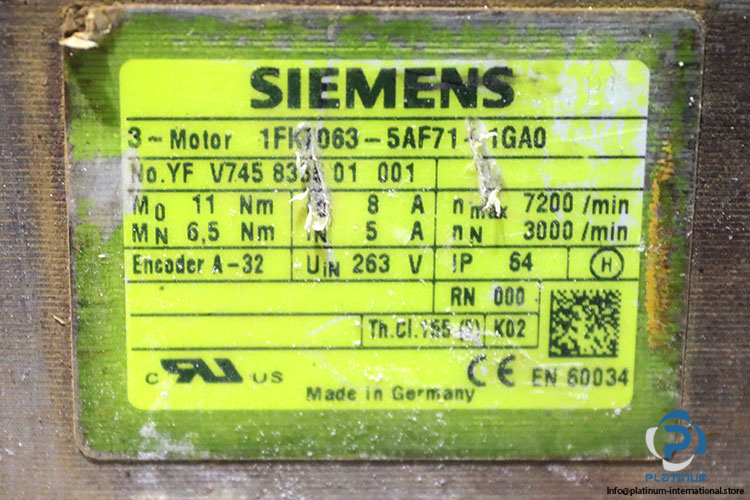

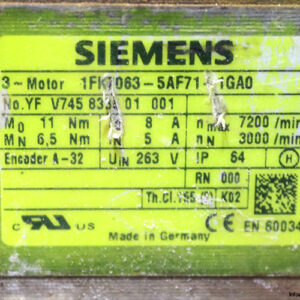

Manufacturer: Siemens
Type: 3-phase Synchronous Servomotor
MNR: 1FK7063-5AF71-1GA0
Drive Family: SINAMICS S120
Series: 1FK7
No. YF.: V745 833 01 001
Marking Code: RN: 000 K02

Technical Information

• Frame Size: 63
• Rated Torque (M‚): 11 Nm
• Nominal Torque (M‚™): 6.5 Nm
• Rated Current (I‚): 8 A
• Nominal Current (I‚™): 5 A
• Rated Current: 5.6 A
• Rated Voltage (U‚™): 263 V
• Nominal Speed (n‚™): 3000 rpm
• Maximum Speed (n‚˜‚‚“): 7200 rpm
• Protection Class: IP64
• Rated Power: 2.29 kW
• Static Torque: 11 Nm
• Rated Torque: 7.3 Nm
• Encoder Type: A-32 Incremental Encoder (32 rpm)
• Cooling Method: Natural Convection (Surface Cooled)
• Compliance: EN 60034

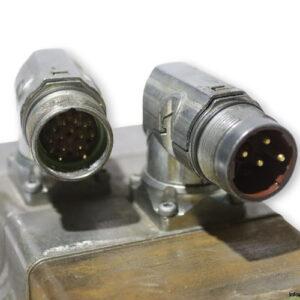

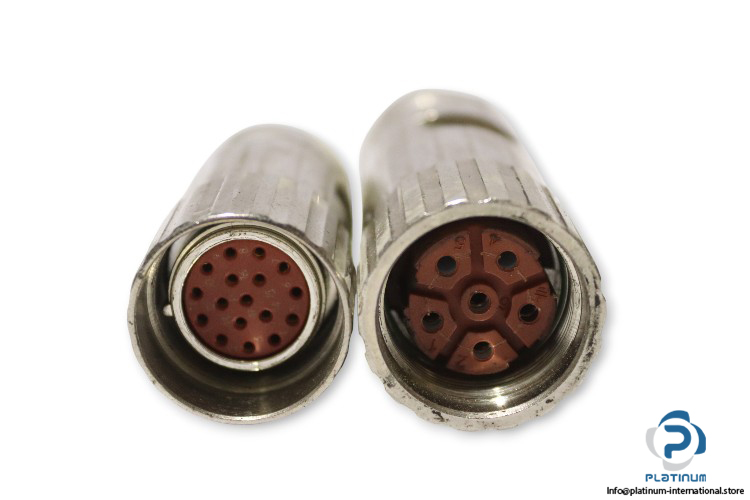

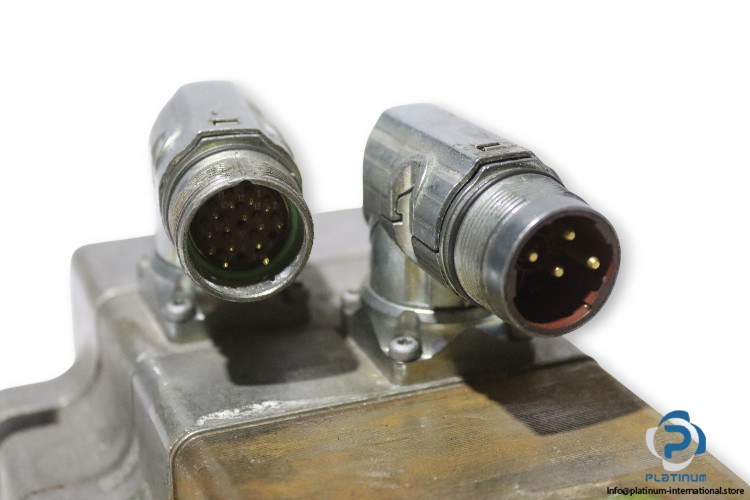

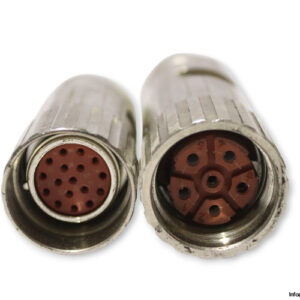

• Connector Type: Circular Multi-pin Connectors for Power and Feedback

This Siemens 1FK7 servomotor delivers reliable motion control with low vibration and outstanding energy efficiency. Its compact frame and rugged construction guarantee consistent performance under continuous operation. The IP64 protection ensures durability against dust and splashing water, making it suitable for both standard and harsh industrial environments.

Ideal for precision automation, this motor provides smooth operation, minimal maintenance requirements, and compatibility with advanced control systems, offering a long-lasting solution for modern manufacturing applications.
