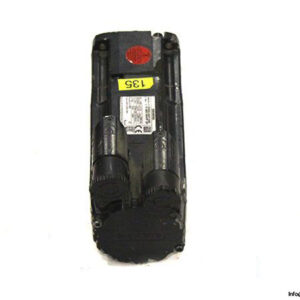

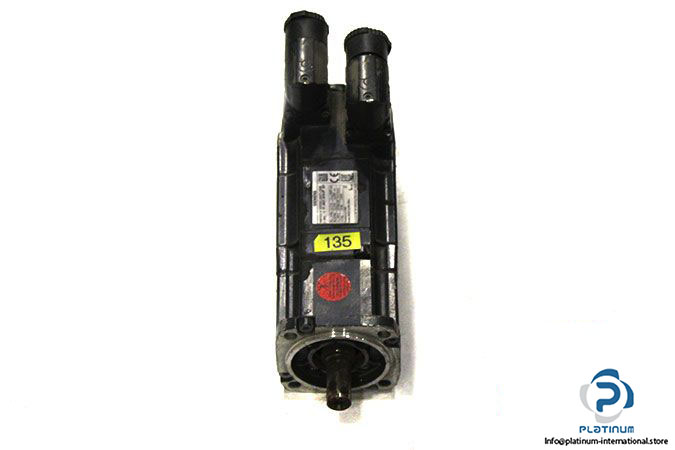

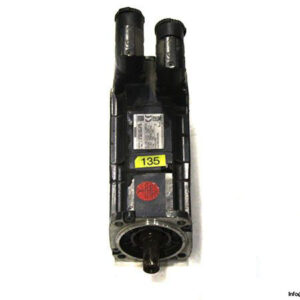

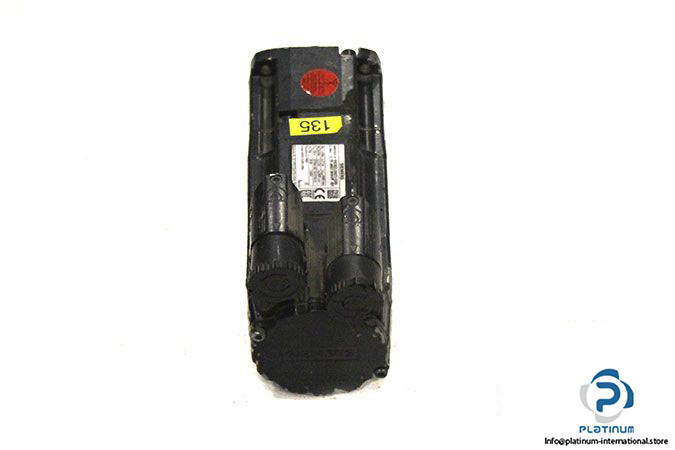

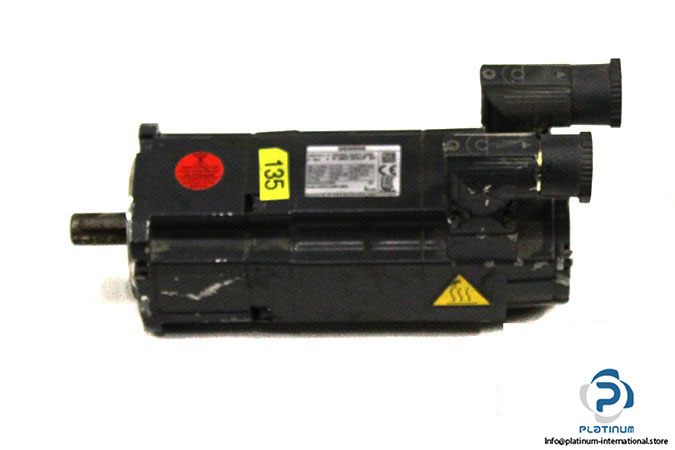

SIEMENS 1FK7 032-2AK71-1SB0 SYNCHRONOUS MOTOR

The Siemens 1FK7 032-2AK71-1SB0 is a high-performance synchronous motor designed for dynamic and precise drive tasks. With a compact design and impressive torque characteristics, it is ideal for industrial motion control and servo drive systems.

Manufacturer: Siemens
Type: Synchronous Motor
Model: 1FK7 032-2AK71-1SB0
Part No.: J8637 3919 01 001

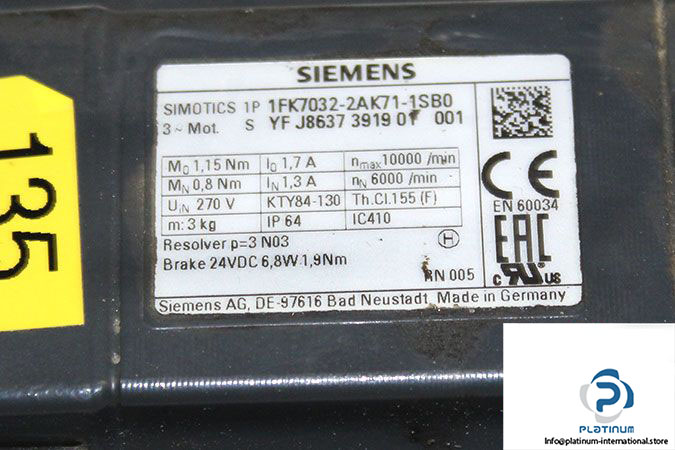

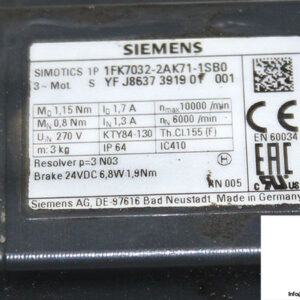

Technical Information

• Rated Voltage: 270 V
• Rated Current: 1.3 A
• Stall Current: 1.7 A
• Rated Speed: 6000 min^-1
• Max. Speed: 10000 min^-1
• Rated Torque: 0.8 Nm
• Stall Torque: 1.15 Nm
• Voltage Brake: 24 VDC
• Power Brake: 6.8 W
• Torque Brake: 1.9 Nm
• Thermal Class: F
• Protection Class: IP64
