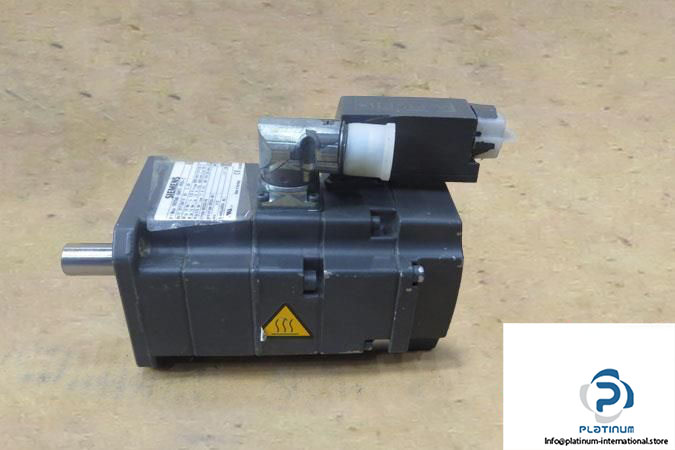

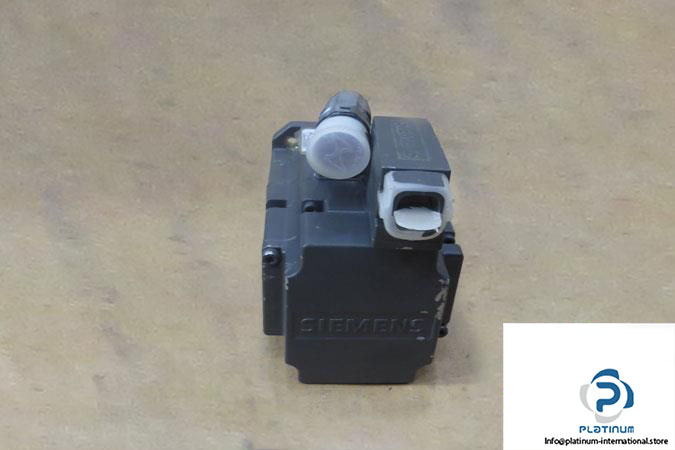

SIEMENS 1FK7040-5AK71-1FG5-Z SYNCHRONOUS AC SERVO MOTOR

The Siemens 1FK7040-5AK71-1FG5-Z is a high-efficiency synchronous AC servo motor engineered for precision-driven automation and motion control systems. Designed with a gear unit and advanced encoder, it delivers exceptional torque and performance under industrial conditions.

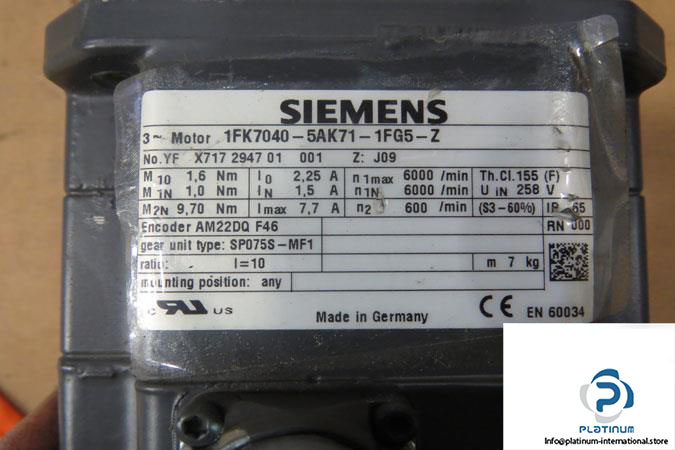

Manufacturer: SIEMENS
Type: Synchronous AC Servo Motor
Model: 1FK7040-5AK71-1FG5-Z
No. yf: X717 2947 01 001
Ref No.: J09

Technical Information

• Voltage: 258 V
• Standstill Torque: 1.6 Nm
• Rated Torque: 1 / 9.7 Nm
• Standstill Current: 2.25 A
• Rated Current: 1.5 A
• Max Current: 7.7 A
• Rated/Max Speed: 6000 rpm
• Output Speed: 600 rpm
• Rated Output: 0.57 kW
• Protection Class: IP65
• Ambient Temperature: 40 °C
• Insulation Class: Class F
• Encoder: AM22DQ F46
• Gear Unit Type: SP075S-MF1
• Gear Ratio: 10
