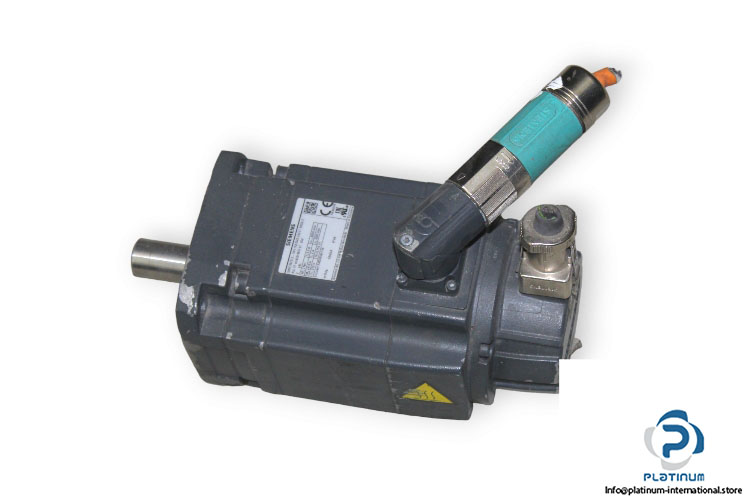

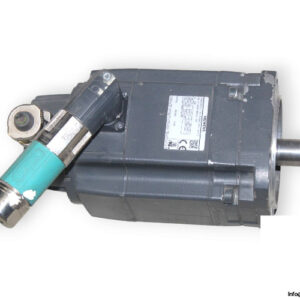

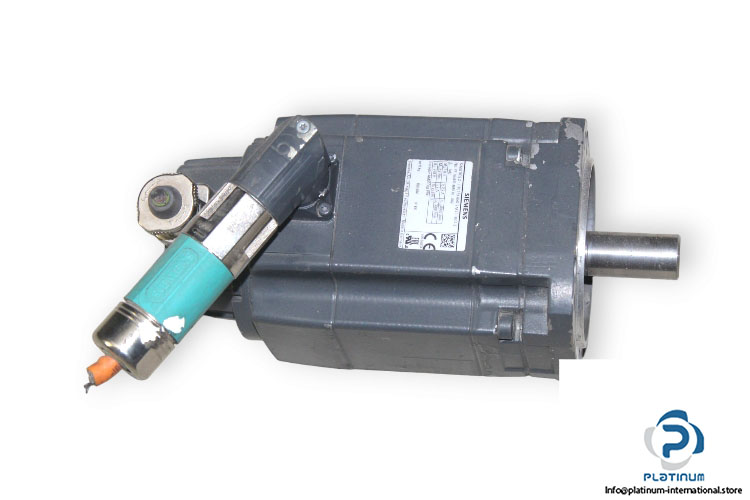

SIEMENS 1FK7042-2AF71-1RG0-Z SYNCHRONOUS SERVO MOTOR
The Siemens 1FK7042-2AF71-1RG0-Z is a high-performance synchronous servo motor designed for precise motion control in industrial automation systems. Engineered for demanding environments, it delivers superior torque, high speed, and reliable feedback via its integrated encoder.

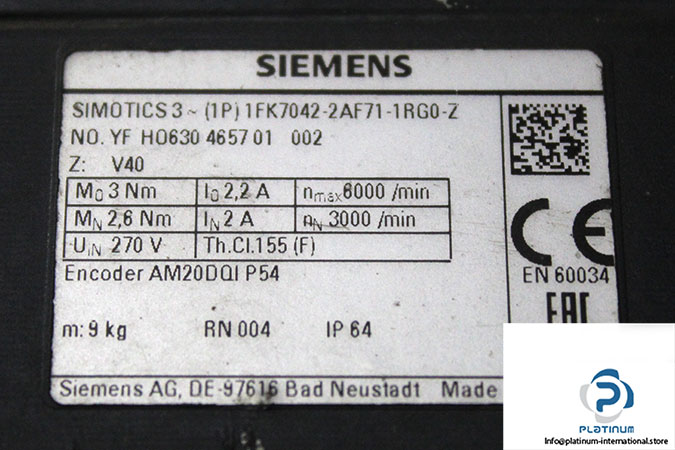

Manufacturer: Siemens
Type: Synchronous Servo Motor
Model: 1FK7042-2AF71-1RG0-Z
No.yf: HO630 4657 01 002
Ref No.: V40
Technical Information
- Rated Voltage: 270 V
- Stall Torque: 3 Nm
- Rated Torque: 2.6 Nm
- Stall Current: 2.2 A
- Rated Current: 2 A
- Rated Speed: 3000 RPM
- Maximum Speed: 6000 RPM
- Protection Class: IP64
- Insulation Class: F
- Encoder: SIEMENS AM20DQI P54
