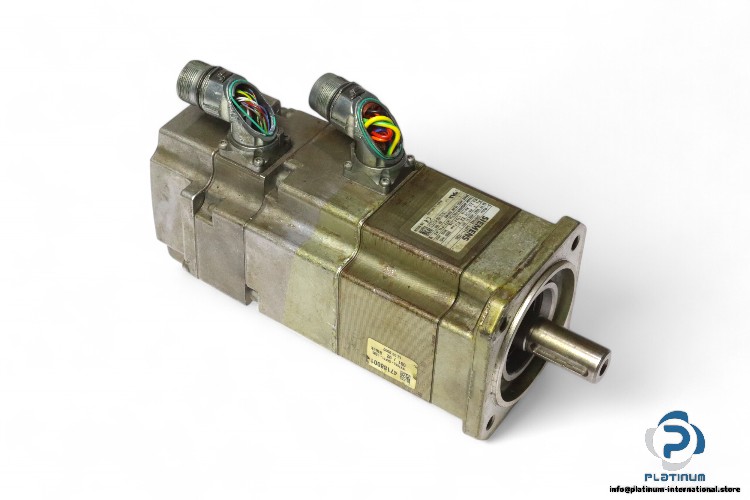

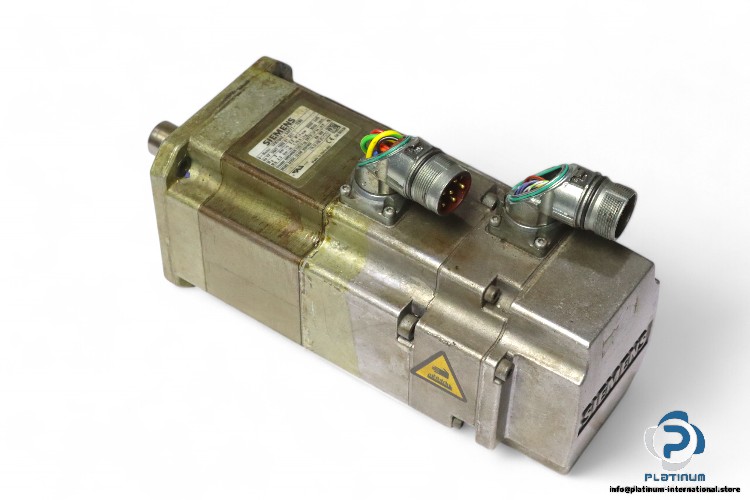

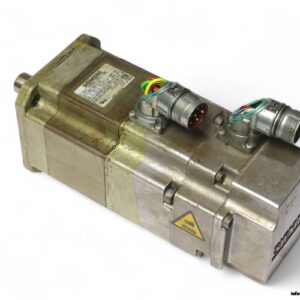

SIEMENS 1FK7042-5AF71-1EB0 SERVO MOTOR
The Siemens 1FK7042-5AF71-1EB0 is a high-performance synchronous servo motor engineered for demanding motion control applications. With its high torque density, compact design, and integrated brake and encoder systems, it delivers exceptional reliability and efficiency.
Manufacturer: SIEMENS
Type: Servo Motor
Model: 1FK7042-5AF71-1EB0
No yf: V947 1880 01 001

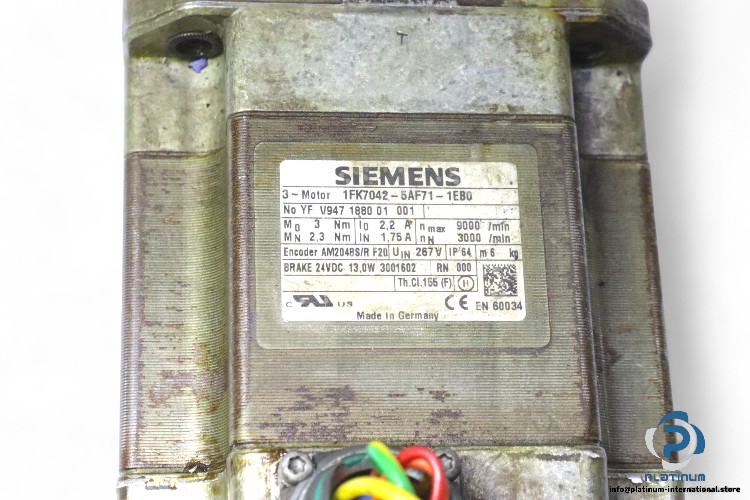

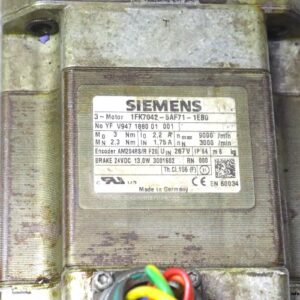

Technical Information
- Supply Voltage: 267 V
- Rated Torque: 2.3 Nm
- Stall Torque: 3 Nm
- Rated Current: 1.75 A
- Stall Current: 2.2 A
- Maximum Speed: 9000 rpm
- Rated Speed: 3000 rpm
- Protection Class: IP 64
- Thermal Class: F
- Attached Encoder: AM2048S/R F20
- Attached Brake: SIEMENS 3001602
- Brake Voltage: 24 VDC
- Brake Power: 13 W
