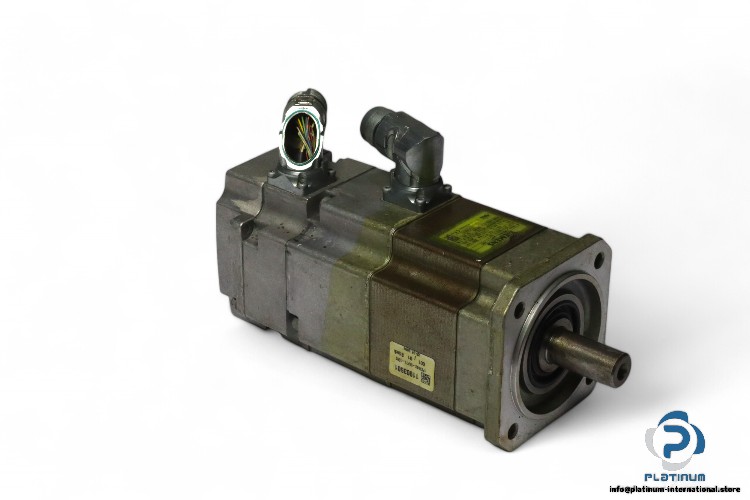

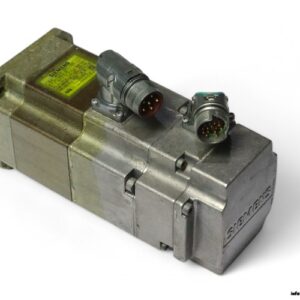

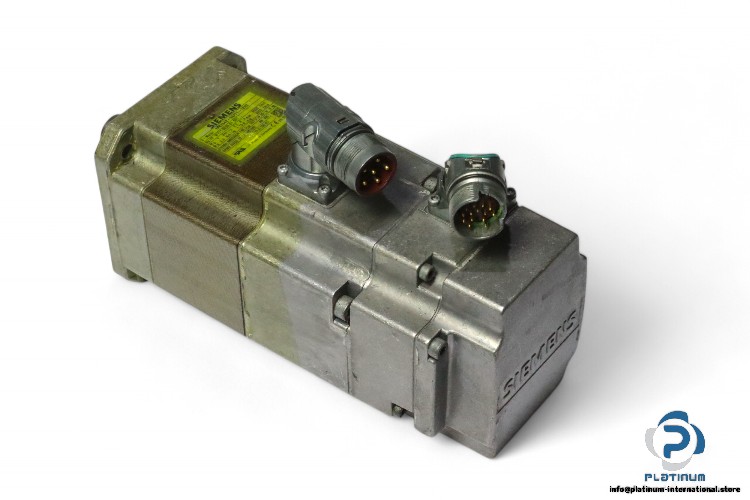

SIEMENS 1FK70425AF711EH2 SERVO MOTOR

The Siemens 1FK70425AF711EH2 is a high-performance servo motor engineered for demanding motion control applications. With precise torque, high-speed operation, and integrated brake and encoder systems, it ensures consistent and efficient functionality in industrial automation setups.

Manufacturer: SIEMENS
Type: Servo Motor
Model: 1FK70425AF711EH2

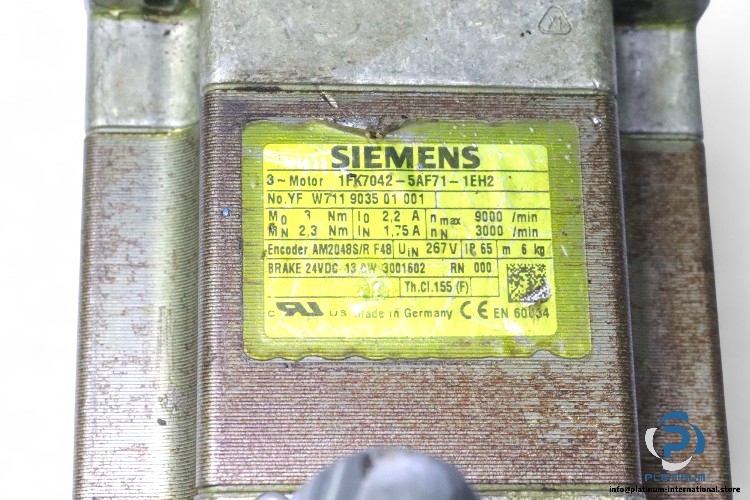

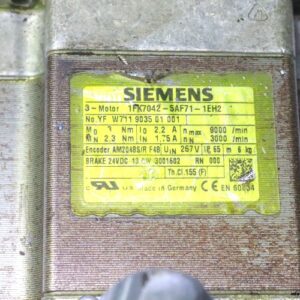

No yf: W711 9035 01 001

Technical Information

• Supply Voltage: 267 V
• Rated Torque: 2.3 Nm
• Stall Torque: 3 Nm
• Rated Current: 1.75 A
• Stall Current: 2.2 A
• Rated Speed: 3000 rpm
• Max. Speed: 9000 rpm
• Protection Class: IP 65
• Thermal Class: F
• Attached Encoder: AM2048S/R F48
• Attached Brake: SIEMENS 3001602
• Brake Voltage: 24 VDC
• Brake Power: 13 W
