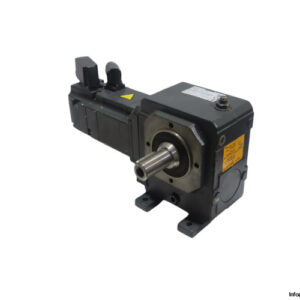

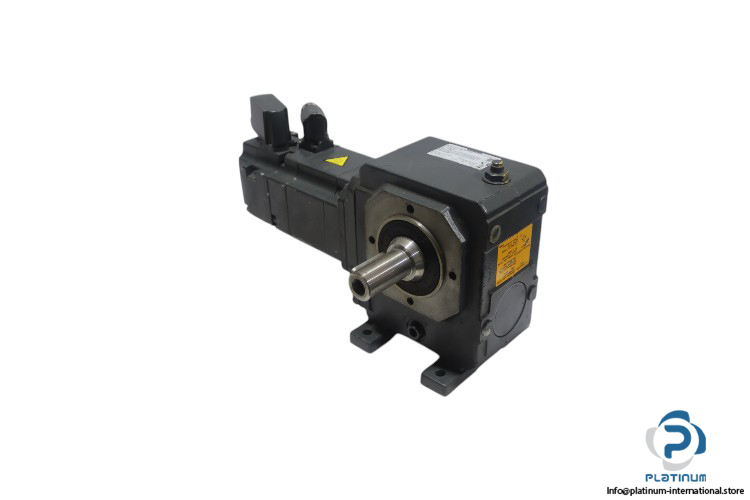

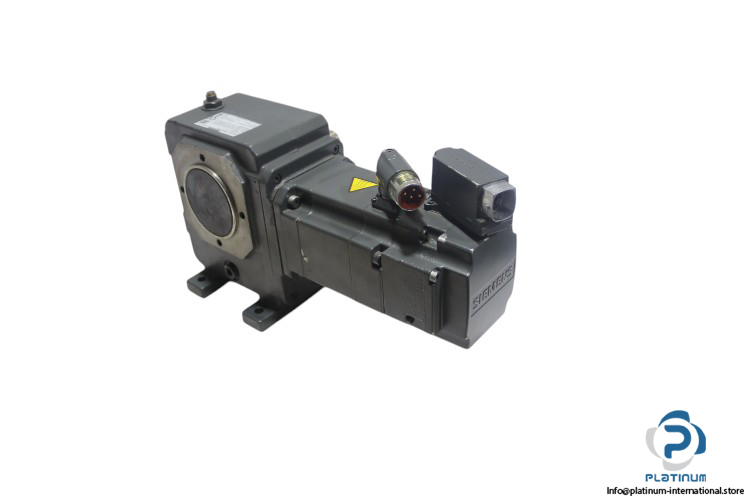

Siemens 1FK7042-5AF71-1KU5-Z Servomotor with Gear (3 Phase)

The Siemens 1FK7042-5AF71-1KU5-Z Servomotor with Gear is designed for high-performance applications, offering efficient and reliable motion control with a range of torque and speed settings. It is equipped with a robust gearbox and reliable encoder for precision operation.

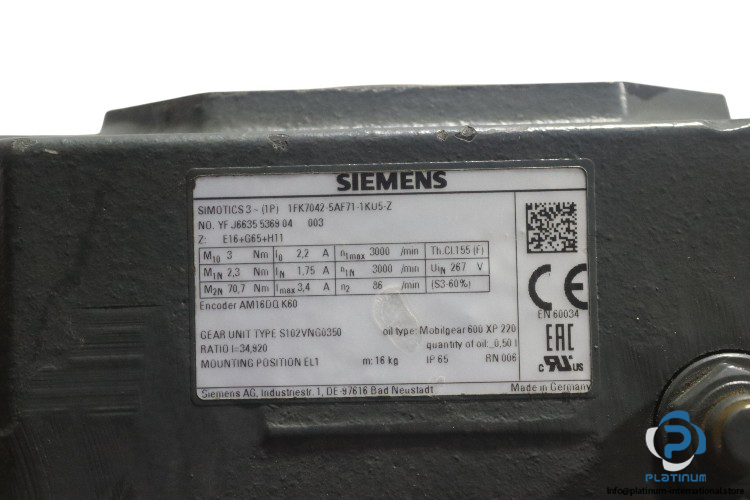

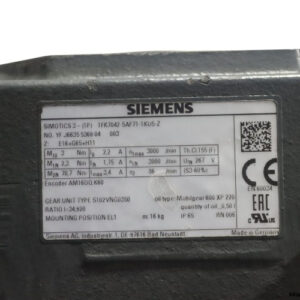

Manufacturer: Siemens

Model: 1FK7042-5AF71-1KU5-Z

Type: Servomotor with Gear (3 Phase)

Part No.: YF J6635536904 003

Z No.: E16+G65+H11

Encoder: AM16DQK60

Technical Information:

• Rated Voltage: 267 V
• Rated Torque: 2.3 to 70.7 Nm
• Static Torque: 3 Nm
• Stall Current: 2.2 A
• Rated Current: 1.75 to 3.4 A
• Rated Speed: 86 to 3000 rpm
• Maximum Speed: 3000 rpm
• With Gearbox: S102VNG0350
• Gearbox Ratio: 34.92
• Oil Type: Mobil Gear 600 XP220
• Protection Class: IP 65
• Duty: S3
• Thermal Class: F
