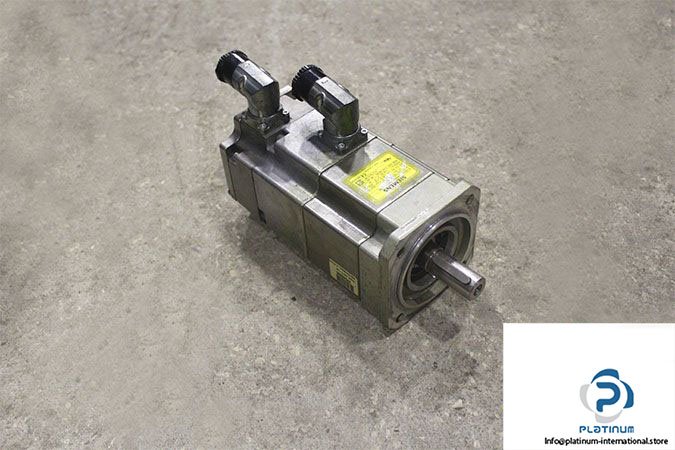

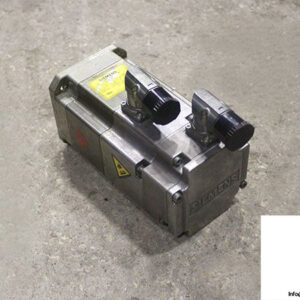

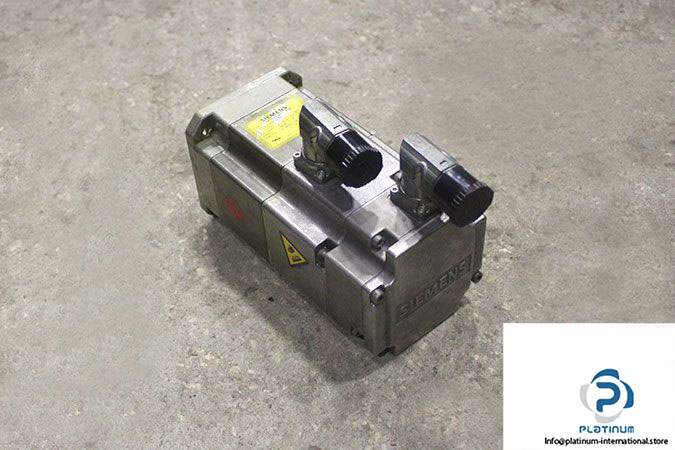

SIEMENS 1FK7 042-5AF71-1TB0 SYNCHRONOUS SERVO MOTOR
The Siemens 1FK7 042-5AF71-1TB0 is a high-precision synchronous servo motor engineered for dynamic industrial motion control. Its robust construction and high-speed performance make it ideal for demanding automation systems requiring reliable, efficient, and responsive torque delivery.
Manufacturer: Siemens
Type: Synchronous Servo Motor
Model: 1FK7 042-5AF71-1TB0

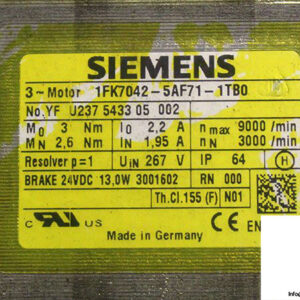

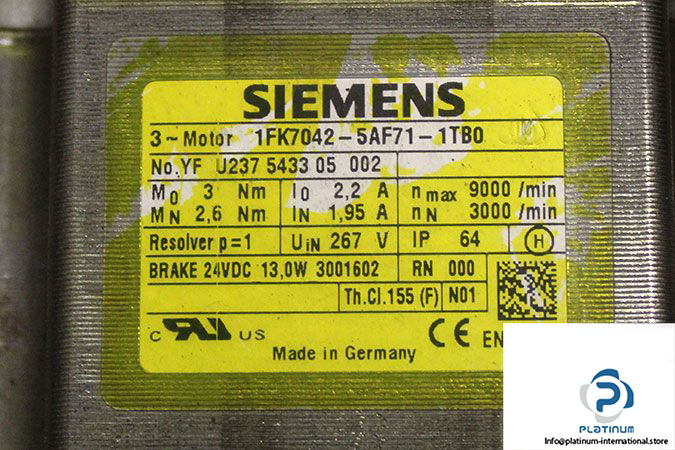

NO YF: U237 5433 05 002
Technical Information
- Rated Voltage: 267 V
- Rated Current: 1.95 A
- Stall Current: 2.2 A
- Rated Torque: 2.6 Nm
- Static Torque: 3 Nm
- Rated Speed: 3000 rpm
- Max. Speed: 9000 rpm
- Brake Voltage: 24 VDC
- Brake Power: 13 W
- Brake Model: 3001602
- Protection Class: IP64
- Thermal Class: F
