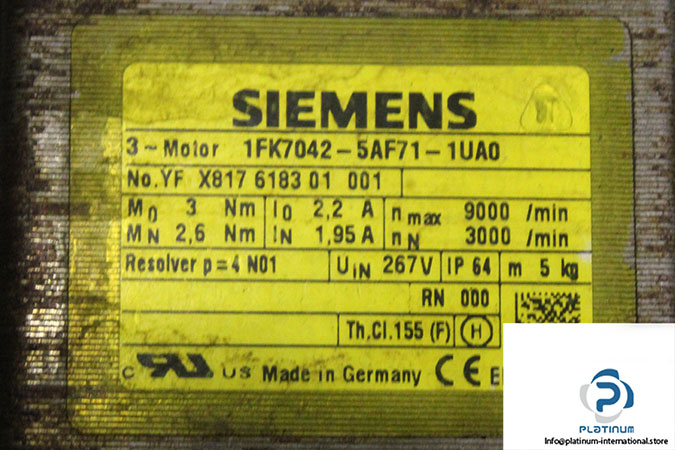

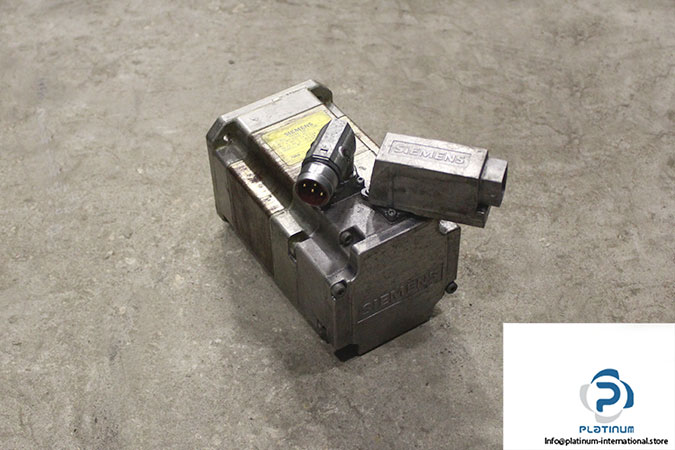

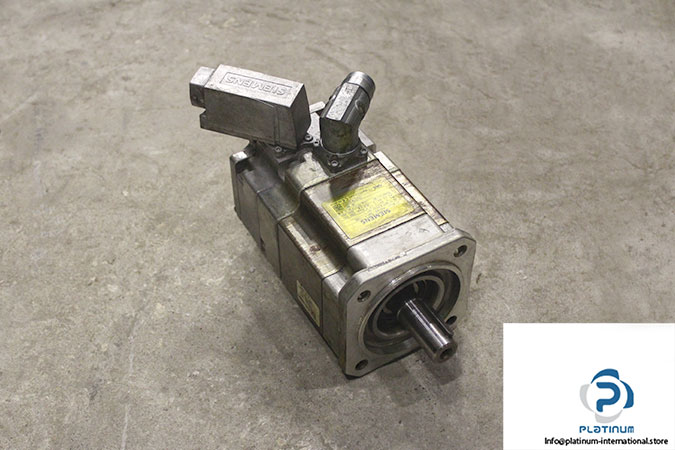

SIEMENS 1FK7 042-5AF71-1UA0 SYNCHRONOUS SERVO MOTOR
Siemens offers a high-performance synchronous servo motor engineered for precision, speed, and efficiency in demanding automation systems. The 1FK7 series is known for its compact design and robust reliability, ideal for high-speed motion control applications.
Manufacturer: Siemens
Type: Synchronous Servo Motors
Model: 1FK7 042-5AF71-1UA0
No YF: X817 6183 01 001
Technical Information
- Rated Voltage: 267 V
- Rated Current: 1.95 A
- Stall Current: 2.2 A
- Rated Torque: 2.6 Nm
- Static Torque: 3.0 Nm
- Rated Speed: 3000 rpm
- Max. Speed: 9000 rpm
- Protection Class: IP64
- Thermal Class: F
