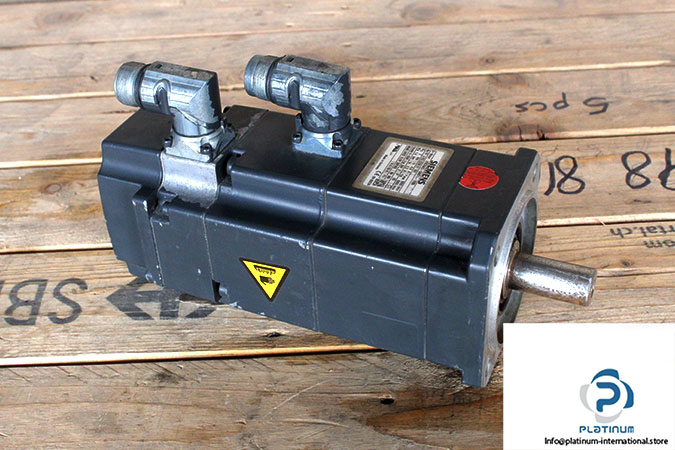

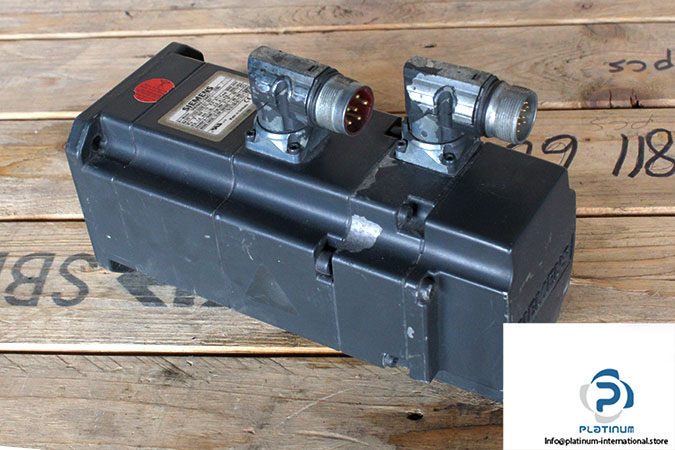

SIEMENS 1FK7042-5AK71-1EB5 SYNCHRONOUS SERVO MOTOR

The Siemens 1FK7042-5AK71-1EB5 is a high-performance synchronous servo motor engineered for precision motion control in demanding automation systems. With high torque density, robust protection, and integrated encoder feedback, it™s ideal for modern industrial applications.

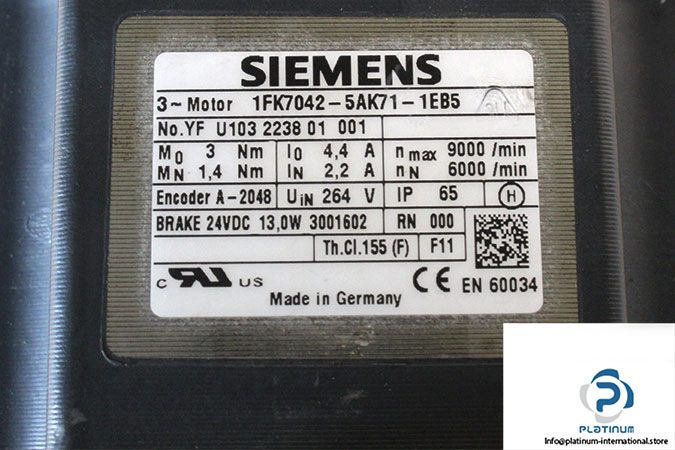

Manufacturer: Siemens
Type: Synchronous Servo Motor
Model: 1FK7042-5AK71-1EB5
No yf: U103 2238 01 001

Technical Information

• Power Supply: 264 V
• Rated Speed: 6000 RPM
• Maximum Speed: 9000 RPM
• Rated Current: 2.2 A
• Stall Current: 4.4 A
• Rated Torque: 1.4 Nm
• Stall Torque: 3 Nm
• Protection Class: IP65
• Encoder: A-2048
• Thermal Class: 155 (F)
• Brake Part No.: 3001602
• Rated DC Voltage: 24 V
• Rated Power: 13 W
