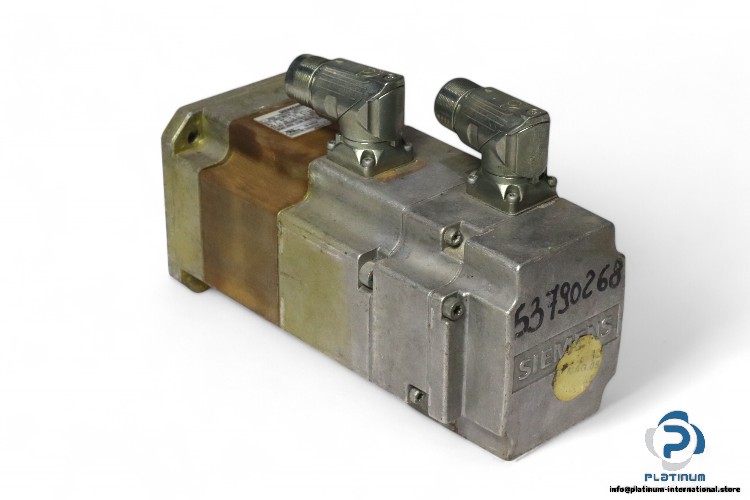

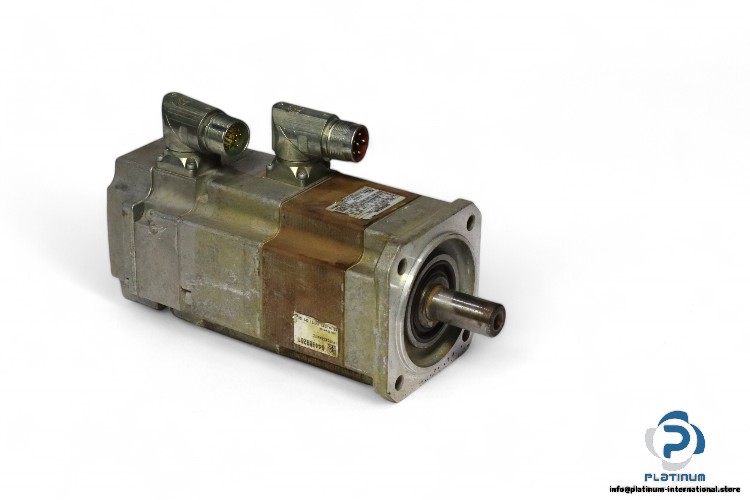

SIEMENS 1FK70425AK711EH2 SERVO MOTOR

The Siemens 1FK70425AK711EH2 is a high-performance servo motor designed for demanding motion control applications. Engineered with precision, it delivers stable operation, high torque density, and efficient feedback through its attached encoder and integrated brake system.

Manufacturer: SIEMENS
Type: Servo Motor
Model: 1FK70425AK711EH2

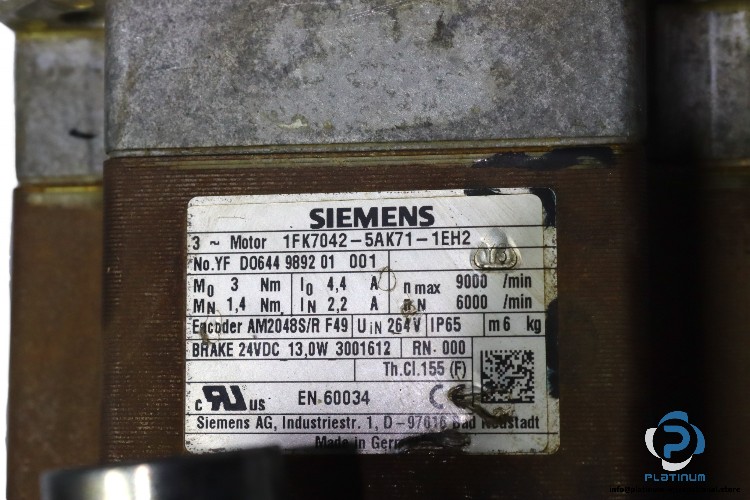

No yf: D0644 9892 01 001

Technical Information

• Supply Voltage: 264 V
• Rated Torque: 1.4 Nm
• Stall Torque: 3 Nm
• Rated Current: 2.2 A
• Stall Current: 4.4 A
• Maximum Speed: 9000 rpm
• Rated Speed: 6000 rpm
• Protection Class: IP 65
• Thermal Class: F
• Attached Encoder: AM2048S/R F49
• Attached Brake: SIEMENS 3001602
• Brake Voltage: 24 VDC
• Brake Power: 13 W
