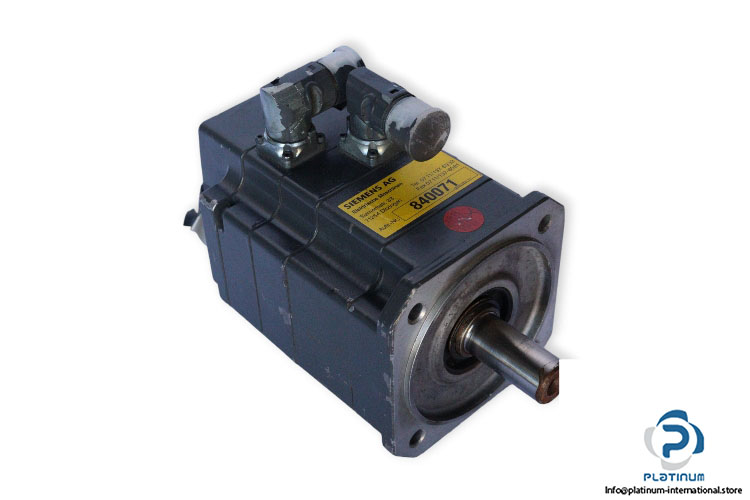

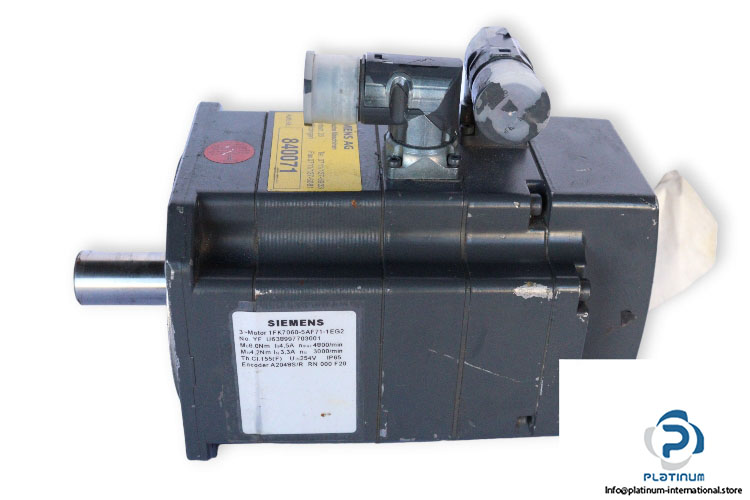

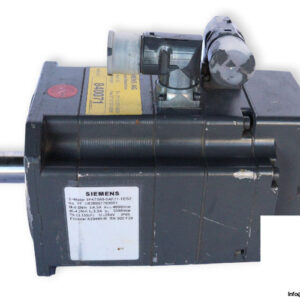

SIEMENS 1FK7060-5AF71-1EG2 SYNCHRONOUS SERVO MOTOR

The Siemens 1FK7060-5AF71-1EG2 is a compact and high-performance synchronous servo motor engineered for dynamic motion control in industrial automation. Featuring natural cooling, high precision, and robust protection, this motor ensures reliability in demanding servo drive applications.

Manufacturer: SIEMENS
Type: Synchronous Servo Motor
Model: 1FK7060-5AF71-1EG2
NO.YF: U638997703001

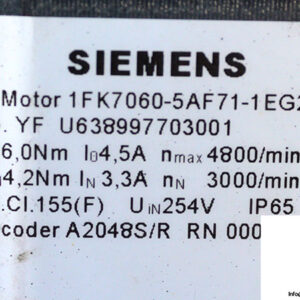

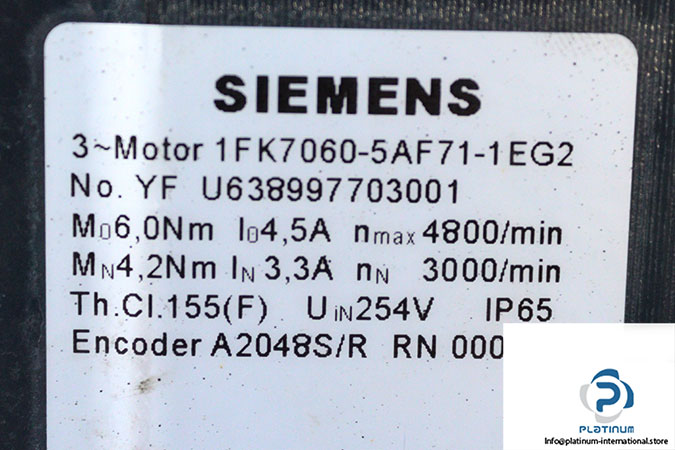

Technical Information

• Motor Type: Compact
• Cooling: Natural cooling
• Shaft Height: 63
• Connector Size: 1
• Number of Poles: 8
• Rated Torque: 4.2 Nm
• Rated Voltage: 254 V
• Rated Current: 3.3 A
• Stall Current: 4.5 A
• Rated Speed: 3000 min^-1
• Max. Speed: 4800 min^-1
• Stall Torque: 6 Nm
• Moment of Inertia: 7.950 kgcm²
• Thermal Class: F
• Protection Class: IP65, drive end flange IP67
• Encoder Type: A2048S/R (Abs. encoder EnDat 2048 pulses/rev)
• Mechanical Limiting Speed: 12000 rpm
• Operating Voltage: 5 V ± 5 %
• Power Consumption: Max. 300 mA
