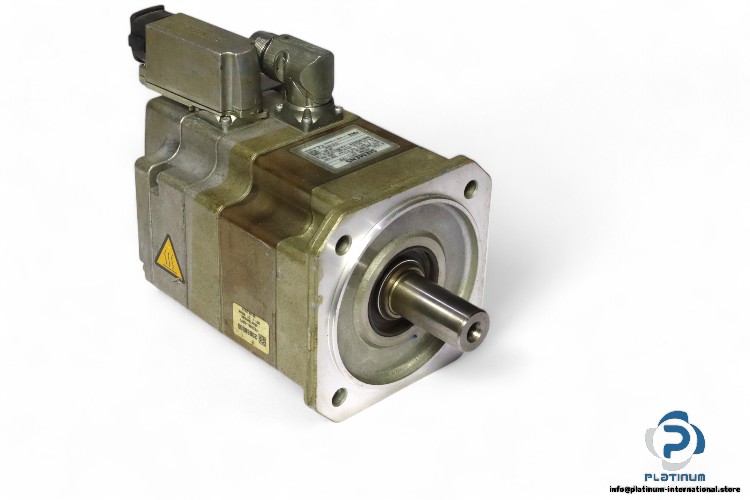

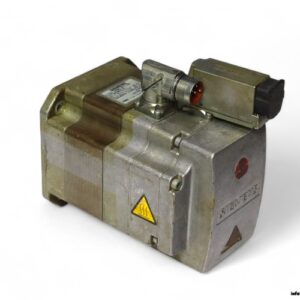

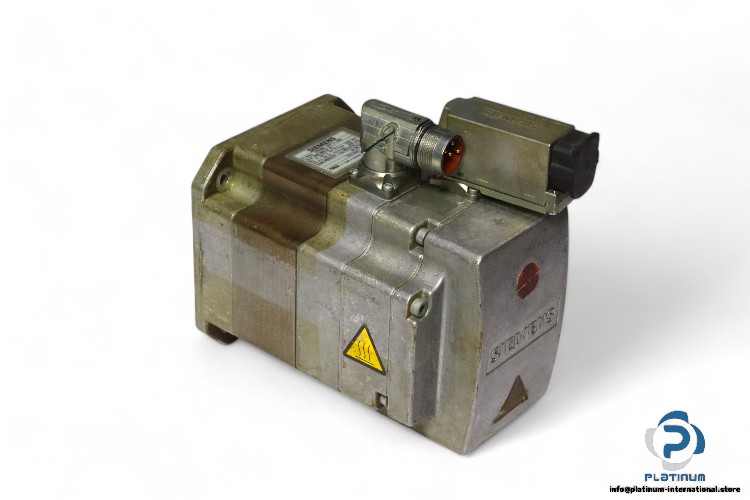

SIEMENS 1FK7060-5AF71-1FG2 SERVO MOTOR
The SIEMENS 1FK7060-5AF71-1FG2 is a compact and high-performance servo motor engineered for advanced industrial automation. It offers high torque density and precision with an integrated AM22DQ F49 encoder, making it ideal for dynamic motion control systems.

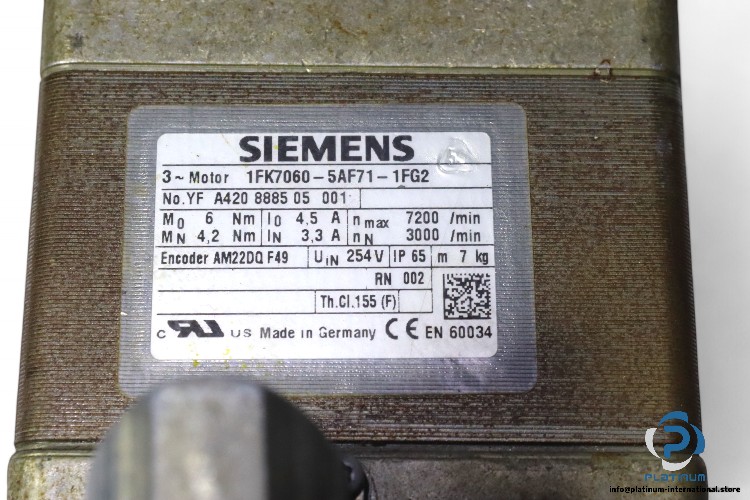

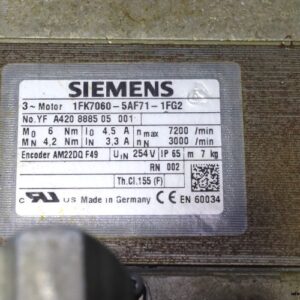

Manufacturer: SIEMENS
Type: Servo Motor
Model: 1FK7060-5AF71-1FG2
No yf: A420 8885 05 001
Technical Information
- Supply Voltage: 254 V
- Rated Torque: 4.2 Nm
- Stall Torque: 6 Nm
- Rated Current: 3.3 A
- Stall Current: 4.5 A
- Rated Speed: 3000 rpm
- Maximum Speed: 7200 rpm
- Motor Type: Compact
- Protection Class: IP 65
- Thermal Class: F
- Attached Encoder: AM22DQ F49
