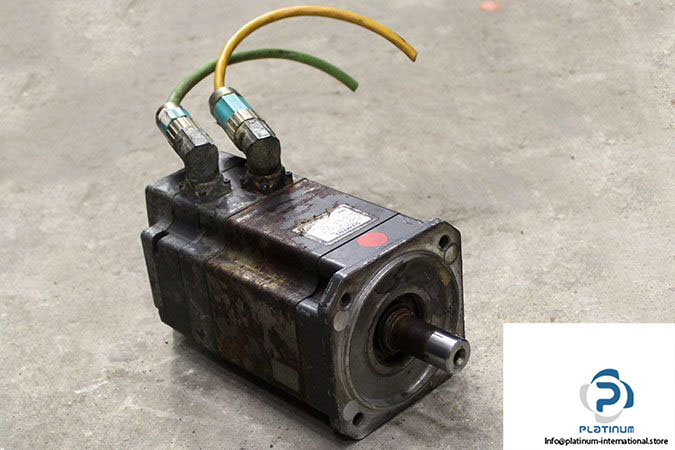

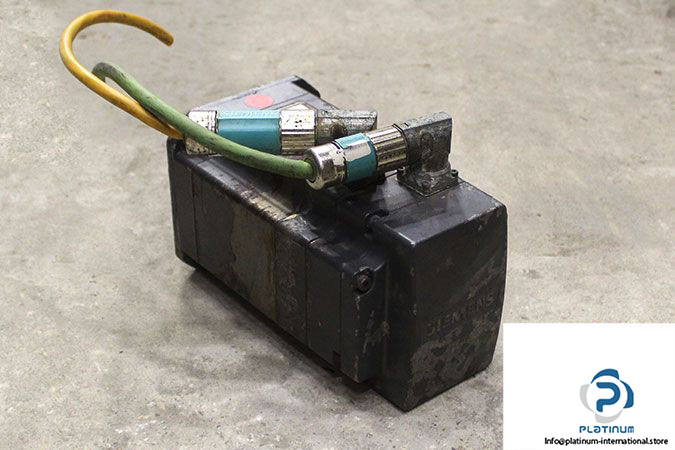

SIEMENS 1FK7063-5AF71-1DG5 SYNCHRONOUS SERVO MOTOR
Engineered for dynamic motion control systems, the Siemens 1FK7063-5AF71-1DG5 Synchronous Servo Motor delivers high torque and speed capabilities with precision. Ideal for high-demand industrial automation environments, it combines reliability with performance, protected by IP65-rated housing.

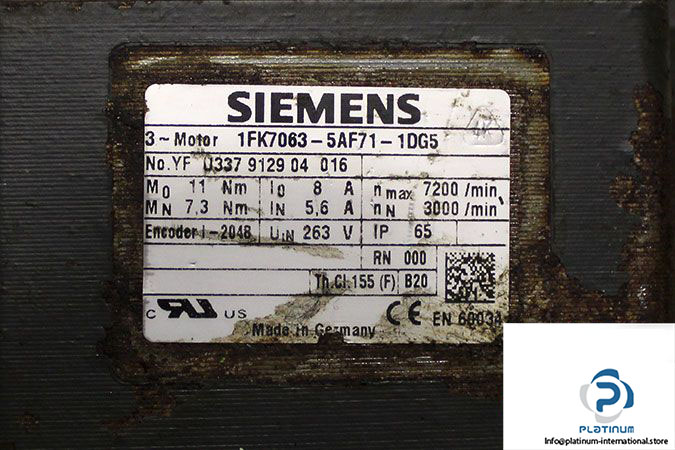

Manufacturer: Siemens
Type: Synchronous Servo Motor
Model: 1FK7063-5AF71-1DG5
Part No.: 0337 9129 04 016
Technical Information
- Rated Voltage: 263 V
- Rated Current: 5.6 A
- Stall Current: 8 A
- Rated Speed: 3000 min»¹
- Max. Speed: 7200 min»¹
- Rated Torque: 7.3 Nm
- Stall Torque: 11 Nm
- Thermal Class: F
- Mounting Position: B20
- Encoder Model: I-2048
- Protection Class: IP65
