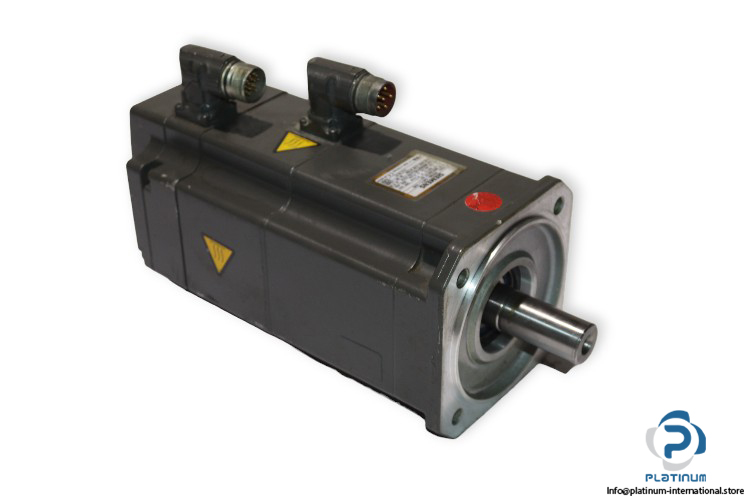

SIEMENS 1FK7063-5AF71-1EH3 SERVO MOTOR

The Siemens 1FK7063-5AF71-1EH3 is a premium high-performance servo motor engineered for industrial precision and efficiency. It is ideal for automation systems requiring fast response, accurate positioning, and reliable torque output.

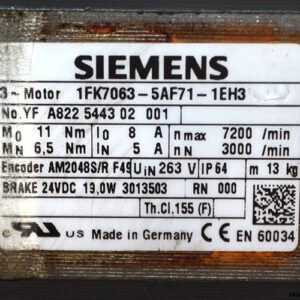

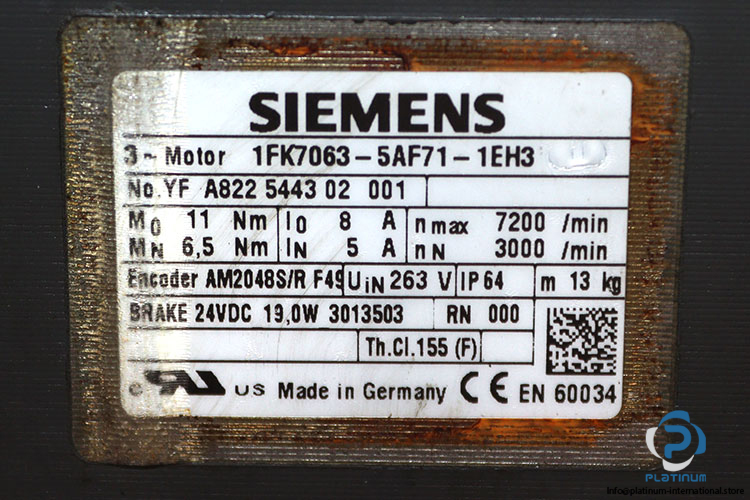

Manufacturer: SIEMENS
Type: Servo Motor
Model: 1FK7063-5AF71-1EH3
NO.YF: A822544302001

Technical Information

• Attached Encoder: AM2048S/R F49
• Attached Brake: 3013503 (24VDC, 19 W)
• Supply Voltage: 263 V
• Stall Torque: 11 Nm
• Rated Torque: 6.5 Nm
• Stall Current: 8 A
• Rated Current: 5 A
• Max Speed: 7200 rpm
• Rated Speed: 3000 rpm
• Protection: IP64 (EN60034)
• Thermal Class: F
