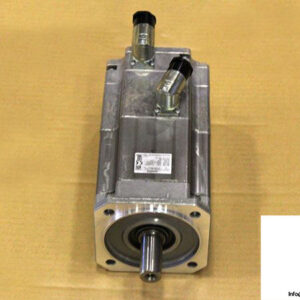

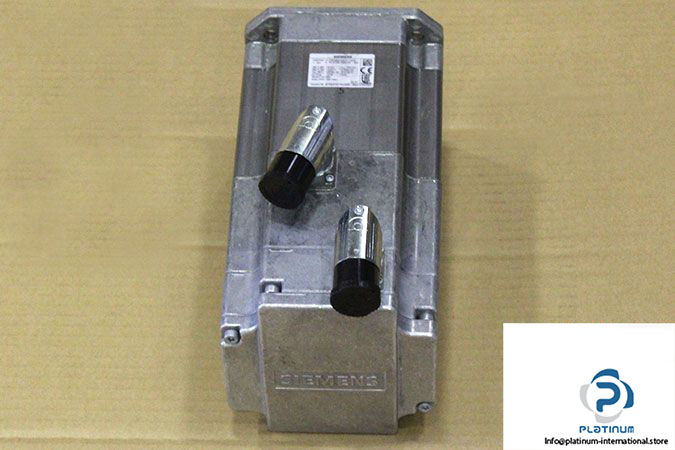

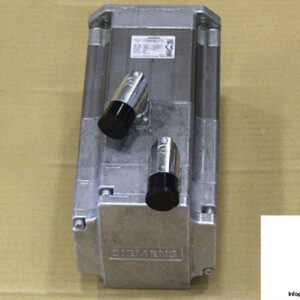

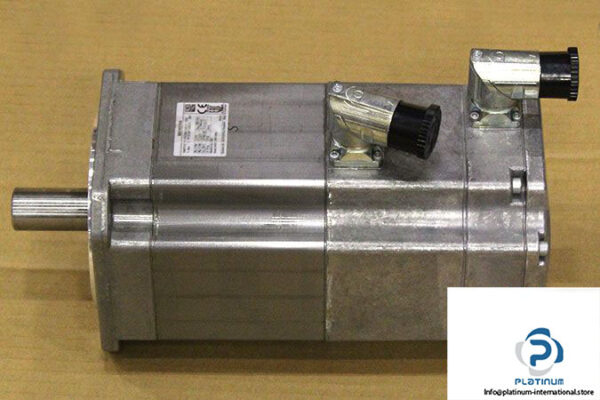

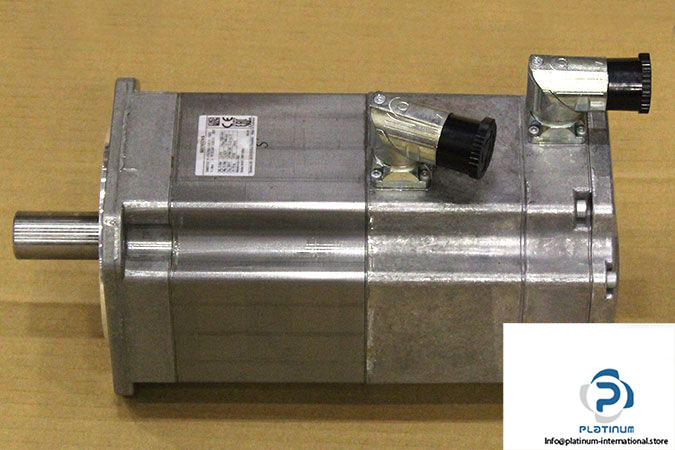

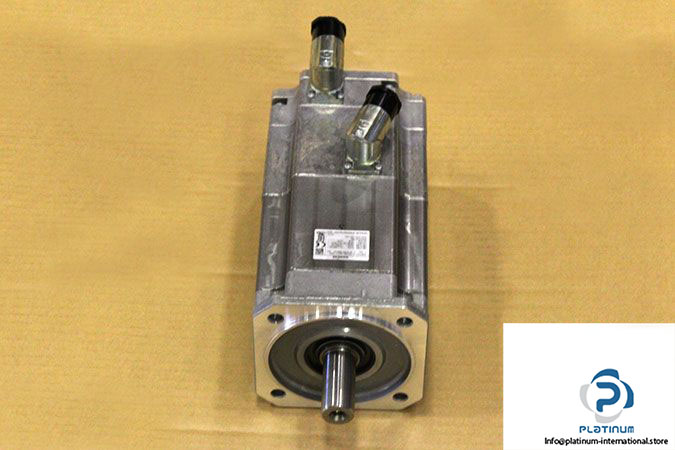

SIEMENS 1FK7 063-5AF71-1SH2 PERMANENT MAGNET MOTOR

The Siemens 1FK7 series permanent magnet motor is engineered for high-performance automation tasks requiring reliable torque and dynamic motion. With robust build quality and IP65 protection, it is ideal for precision-driven industrial applications.

Manufacturer: SIEMENS
Type: Permanent Magnet Motor
Model: 1FK7 063-5AF71-1SH2
Part No.: K7647 9383 01 001

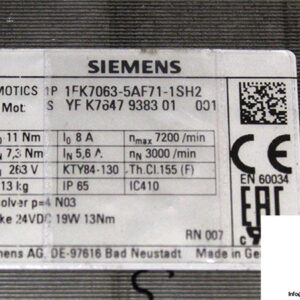

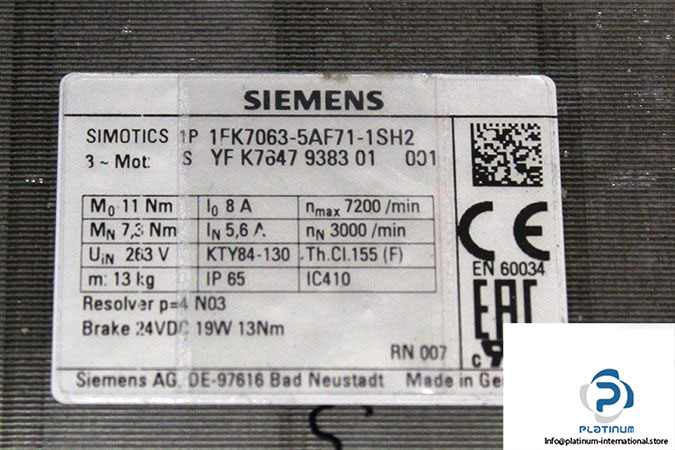

Technical Information

• Rated Voltage: 263 V
• Rated Current: 5.6 A
• Stall Current: 8 A
• Rated Speed: 3000 min»¹
• Max. Speed: 7200 min»¹
• Rated Torque: 7.3 Nm
• Stall Torque: 11 Nm
• Voltage Brake: 24 VDC
• Power Brake: 19 W
• Torque Brake: 13 Nm
• Thermal Class: F
• Resolver: p=4 n03
• Protection Class: IP65
